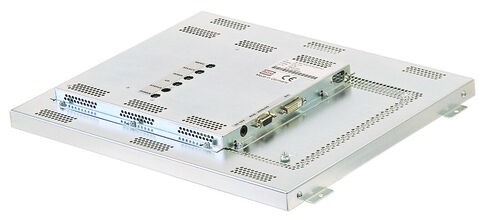

The control peripherals such as interface cards, LED converters, OSD boards and also the base display of the TFT display modules of the Standard Line are completely encapsulated in order to achieve the best possible EMC behaviour. The signal connections (Analog-RGB, DVI, DP, USB) are equipped with standard connectors. The assembly takes place via housing-side receiving points.
Please also note our our product philosophy to our ready for connection TFT Displays.
| Size (cm) |
Size (inch) |
Touch | Type | Beck Part Number |
Resolution (X*Y) |
Brightness (cd/m²) |
Contrast | Viewing Angle (3 / 6 / 9 / 12 , o'clock) |
Interface | Power Supply | Outline (H*V*D, mm) |
Remark | Image |  |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 30.7 | 12.1 | w/o | SCM12X01-R RGB/DVI/DP | 188-01315 | 1024*768 | 600 | 1000:1 | 89 / 89 / 89 / 89 | Analog-RGB / DVI / DP | 12V DC | 281.5*205.9*29.6 | wide view (AAS), high brightness | View picture | Download |
| 30.7 | 12.1 | PCAP-Touch | SCMT12X01-R RGB/DVI/DP | 188-01420 | 1024*768 | 540 | 1000:1 | 89 / 89 / 89 / 89 | Analog-RGB / DVI / DP / USB | 12V DC | 290.5*239.8*37.7 | wide view (AAS), high brightness | View picture | Download |
| 38.1 | 15.0 | w/o | SCM15X11-R RGB/DVI | 188-01342 | 1024*768 | 500 | 2500:1 | 88 / 88 / 88 / 88 | Analog-RGB / DVI | 12V DC | 347.4*255.1*29.0 | wide view (VA), high brightness | View picture | Download |
| 38.1 | 15.0 | w/o | SCM15X12-R RGB/DVI/DP | 188-01345 | 1024*768 | 500 | 2500:1 | 88 / 88 / 88 / 88 | Analog-RGB / DVI / DP | 12V DC | 347.0*255.1*28.8 | developing – wide view (VA), high brightness | View picture | Download |
| 38.1 | 15.0 | RES-Touch | SCMT15X04-R RGB/DVI | 188-01434 | 1024*768 | 410 | 2500:1 | 88 / 88 / 88 / 88 | Analog-RGB / DVI / USB | 12V DC | 350.0*277.0*36.0 | wide view (VA), high brightness | View picture | Download |
| 38.1 | 15.0 | PCAP-Touch | SCMT15X05-R RGB/DVI | 188-01435 | 1024*768 | 450 | 2500:1 | 88 / 88 / 88 / 88 | Analog-RGB / DVI / USB | 12V DC | 349.2*283.4*40.0 | wide view (VA), high brightness | View picture | Download |
| 39.6 | 15.6 | w/o | SCM15W01-R RGB/DVI/DP | 188-01343 | 1366*768 | 300 | 500:1 | 80 / 80 / 80 / 80 | Analog-RGB / DVI / DP | 12V DC | 384.8*236.9*37.6 | fast response time | View picture | Download |
| 39.6 | 15.6 | PCAP-Touch | SCMT15W01-R RGB/DVI | 188-01433 | 1366*768 | 270 | 500:1 | 80 / 80 / 80 / 80 | Analog-RGB / DVI / USB | 12V DC | 388.8*247.5*45.0 | fast response time | View picture | Download |
| 39.6 | 15.6 | w/o | SCM15H01-R RGB/DVI/DP | 188-01344 | 1920*1080 | 450 | 800:1 | 85 / 85 / 85 / 85 | Analog-RGB / DVI / DP | 12V DC | 384.8*236.9*32.1 | high brightness | View picture | Download |
| 43.2 | 17.0 | w/o | SCM17EG3-R RGB/DVI/DP | 188-01366 | 1280*1024 | 350 | 1000:1 | 85 / 80 / 85 / 80 | Analog-RGB / DVI / DP | 12V DC | 379.5*298.4*32.8 | high brightness, fast response time | View picture | Download |
| 43.2 | 17.0 | RES-Touch | SCMT17EG1-R RGB/DVI | 188-01440 | 1280*1024 | 287 | 1000:1 | 85 / 80 / 85 / 80 | Analog-RGB / DVI / USB | 12V DC | 381.1*319.0*39.0 | fast response time | View picture | Download |
| 43.2 | 17.0 | PCAP-Touch | SCMT17EG2-R RGB/DVI | 188-01441 | 1280*1024 | 315 | 1000:1 | 85 / 80 / 85 / 80 | Analog-RGB / DVI / USB | 12V DC | 385.6*328.6*39.4 | fast response time | View picture | Download |
| 47.0 | 18.5 | w/o | SCM18W02-R RGB/DVI/DP | 188-01401 | 1366*768 | 300 | 1000:1 | 85 / 80 / 85 / 80 | Analog-RGB / DVI / DP | 12V DC | 452.2*276.4*32.1 | fast response time | View picture | Download |
| 47.0 | 18.5 | w/o | SCM18H02-R RGB/DVI/DP | 188-01400 | 1920*1080 | 350 | 1000:1 | 89 / 89 / 89 / 89 | Analog-RGB / DVI / DP | 12V DC | 452.2*276.4*32.1 | wide view (AHVA), high brightness | View picture | Download |
| 47.0 | 18.5 | PCAP-Touch | SCMT18H01-R RGB/DVI | 188-01463 | 1920*1080 | 315 | 1000:1 | 89 / 89 / 89 / 89 | Analog-RGB / DVI / USB | 12V DC | 457.6*285.3*40.0 | wide view (AHVA) | View picture | Download |
| 48.3 | 19.0 | w/o | SCM19EG4-R RGB/DVI | 188-01396 | 1280*1024 | 300 | 2000:1 | 89 / 89 / 89 / 89 | Analog-RGB / DVI | 12V DC | 416.9*325.6*32.8 | wide view (MVA) | View picture | Download |
| 48.3 | 19.0 | w/o | SCM19EG6-R RGB/DVI/DP | 188-01402 | 1280*1024 | 350 | 2000:1 | 89 / 89 / 89 / 89 | Analog-RGB / DVI / DP | 12V DC | 417.0*325.9*32.8 | developing – wide view (MVA), high brightness | View picture | Download |
| 48.3 | 19.0 | w/o | SCM19EG7-R RGB/DVI/DP | 188-01403 | 1280*1024 | 350 | 1000:1 | 85 / 80 / 85 / 80 | Analog-RGB / DVI / DP | 12V DC | 417.0*325.9*32.8 | high brightness, fast response time | View picture | Download |
| 48.3 | 19.0 | RES-Touch | SCMT19EG2-R RGB/DVI | 188-01450 | 1280*1024 | 287 | 1000:1 | 85 / 80 / 85 / 80 | Analog-RGB / DVI / USB | 12V DC | 418.4*346.4*38.2 | fast response time | View picture | Download |
| 48.3 | 19.0 | RES-Touch | SCMT19EG3-R RGB/DVI/DP | 188-01453 | 1280*1024 | 287 | 1000:1 | 85 / 80 / 85 / 80 | Analog-RGB / DVI / DP / USB | 12V DC | 419.5*347.5*38.2 | developing – fast response time | View picture | Download |
| 48.3 | 19.0 | PCAP-Touch | SCMT19EG1-R RGB/DVI | 188-01452 | 1280*1024 | 315 | 1000:1 | 85 / 80 / 85 / 80 | Analog-RGB / DVI / USB | 12V DC | 423.1*356.0*40.0 | fast response time | View picture | Download |
| 54.6 | 21.5 | w/o | SCM21H01-R RGB/DVI | 188-01418 | 1920*1080 | 300 | 5000:1 | 89 / 89 / 89 / 89 | Analog-RGB / DVI | 12V DC | 516.7*313.3*32.0 | wide view (MVA) | View picture | Download |
| 54.6 | 21.5 | w/o | SCM21H02-R RGB/DVI/DP | 188-01413 | 1920*1080 | 300 | 5000:1 | 89 / 89 / 89 / 89 | Analog-RGB / DVI / DP | 12V DC | 517.4*314.0*32.0 | developing – wide view (MVA) | View picture | Download |
| 54.6 | 21.5 | RES-Touch | SCMT21H04-R RGB/DVI/DP | 188-01462 | 1920*1080 | 246 | 5000:1 | 89 / 89 / 89 / 89 | Analog-RGB / DVI / DP / USB | 12V DC | 518.0*318.5*38.1 | wide view (MVA) | View picture | Download |
| 54.6 | 21.5 | PCAP-Touch | SCMT21H03-R RGB/DVI | 188-01465 | 1920*1080 | 270 | 5000:1 | 89 / 89 / 89 / 89 | Analog-RGB / DVI / USB | 12V DC | 524.7*325.9*38.3 | wide view (MVA) | View picture | Download |
| 54.6 | 21.5 | PCAP-Touch | SCMT21H05-R RGB/DVI/DP | 188-01461 | 1920*1080 | 270 | 5000:1 | 89 / 89 / 89 / 89 | Analog-RGB / DVI / DP / USB | 12V DC | 525.0*327.0*38.1 | developing – wide view (MVA) | View picture | Download |
| 61.0 | 24.0 | w/o | SCM24H01-R RGB/DVI | 188-01416 | 1920*1080 | 300 | 5000:1 | 89 / 89 / 89 / 89 | Analog-RGB / DVI | 12V DC | 578.3*345.5*32.0 | wide view (MVA) | View picture | Download |
| 61.0 | 24.0 | w/o | SCM24H02-R RGB/DVI/DP | 188-01414 | 1920*1080 | 300 | 5000:1 | 89 / 89 / 89 / 89 | Analog-RGB / DVI / DP | 12V DC | 578.2*345.0*32.1 | developing – wide view (MVA) | View picture | Download |
| 61.0 | 24.0 | RES-Touch | SCMT24H02-R RGB/DVI/DP | 188-01466 | 1920*1080 | 246 | 5000:1 | 89 / 89 / 89 / 89 | Analog-RGB / DVI / DP / USB | 12V DC | 578.3*345.5*38.4 | wide view (MVA) | View picture | Download |
| 61.0 | 24.0 | PCAP-Touch | SCMT24H03-R RGB/DVI/DP | 188-01464 | 1920*1080 | 270 | 5000:1 | 89 / 89 / 89 / 89 | Analog-RGB / DVI / DP / USB | 12V DC | 578.6*355.0*38.4 | wide view (MVA) | View picture | Download |
| 68.6 | 27.0 | w/o | SCM27H01-R RGB/DVI | 188-01415 | 1920*1080 | 350 | 3000:1 | 89 / 89 / 89 / 89 | Analog-RGB / DVI | 12V DC | 634.7*377.7*29.5 | wide view (MVA), high brightness | View picture | Download |
| Size (cm) |
Size (inch) |
Touch | Type | Beck Part Number |
Resolution (X*Y) |
Brightness (cd/m²) |
Contrast | Viewing Angle (3 / 6 / 9 / 12 , o'clock) |
Interface | Power Supply | Outline (H*V*D, mm) |
Remark | Image | |
| Size (cm) | Size (inch) | Type | Beck Article-No. | Connection Cable | Power Supply | Other Accessories | ||
|---|---|---|---|---|---|---|---|---|
| 188-00232: VGA 2.2m | 188-00231: DVI-D 2.2m | 188-00629: USB Adapter 2.0m | 188-00330: GT-41132-6012-T3 | 188-00218: DC-Ltg. Holst. 1.25m | ||||
| View picture | View picture | View picture | View picture | View picture | ||||
| 30.7 | 12.1 | SCM12X01-R RGB/DVI/DP | 188-01315 | |||||
| 30.7 | 12.1 | SCMT12X01-R RGB/DVI/DP | 188-01420 | |||||
| 38.1 | 15.0 | SCM15X11-R RGB/DVI | 188-01342 | |||||
| 38.1 | 15.0 | SCM15X12-R RGB/DVI/DP | 188-01345 | |||||
| 38.1 | 15.0 | SCMT15X04-R RGB/DVI | 188-01434 | |||||
| 38.1 | 15.0 | SCMT15X05-R RGB/DVI | 188-01435 | |||||
| 39.6 | 15.6 | SCM15W01-R RGB/DVI/DP | 188-01343 | |||||
| 39.6 | 15.6 | SCMT15W01-R RGB/DVI | 188-01433 | |||||
| 39.6 | 15.6 | SCM15H01-R RGB/DVI/DP | 188-01344 | |||||
| 43.2 | 17.0 | SCM17EG3-R RGB/DVI/DP | 188-01366 | |||||
| 43.2 | 17.0 | SCMT17EG1-R RGB/DVI | 188-01440 | |||||
| 43.2 | 17.0 | SCMT17EG2-R RGB/DVI | 188-01441 | |||||
| 47,0 | 18.5 | SCM18W02-R RGB/DVI/DP | 188-01401 | |||||
| 47,0 | 18.5 | SCM18H02-R RGB/DVI/DP | 188-01400 | |||||
| 47,0 | 18.5 | SCMT18H01-R RGB/DVI | 188-01463 | |||||
| 48,3 | 19.0 | SCM19EG4-R RGB/DVI | 188-01396 | |||||
| 48,3 | 19.0 | SCM19EG6-R RGB/DVI/DP | 188-01402 | |||||
| 48,3 | 19.0 | SCM19EG7-R RGB/DVI/DP | 188-01403 | |||||
| 48,3 | 19.0 | SCMT19EG2-R RGB/DVI | 188-01450 | |||||
| 48,3 | 19.0 | SCMT19EG3-R RGB/DVI/DP | 188-01453 | |||||
| 48,3 | 19.0 | SCMT19EG1-R RGB/DVI | 188-01452 | |||||
| 54,6 | 21.5 | SCM21H01-R RGB/DVI | 188-01418 | |||||
| 54,6 | 21.5 | SCM21H02-R RGB/DVI/DP | 188-01413 | |||||
| 54,6 | 21.5 | SCMT21H04-R RGB/DVI/DP | 188-01462 | |||||
| 54,6 | 21.5 | SCMT21H03-R RGB/DVI | 188-01465 | |||||
| 54,6 | 21.5 | SCMT21H05-R RGB/DVI/DP | 188-01461 | |||||
| 61,0 | 24.0 | SCM24H01-R RGB/DVI | 188-01416 | |||||
| 61,0 | 24.0 | SCM24H02-R RGB/DVI/DP | 188-01414 | |||||
| 61,0 | 24.0 | SCMT24H02-R RGB/DVI/DP | 188-01466 | |||||
| 61,0 | 24.0 | SCMT24H03-R RGB/DVI/DP | 188-01464 | |||||
| 68,6 | 27.0 | SCM27H01-R RGB/DVI | 188-01415 | |||||
