The taiwanese company PANJIT International Inc. has been manufacturing semiconductor components for the industry since 1986. Today, the further development and production of its own semiconductor products takes place at several locations in Asia: PANJIT owns two front-end and two back-end factories, of one each in China and one in Taiwan. There, the complete manufacturing process from wafer production to testing takes place in the company‘s own production facilities.
PANJIT‘s focus is on the automotive, industrial, energy and consumer goods sectors. As a special feature PANJIT has SiC Schottky diodes (SiC = silicon carbide) in its program. PANJIT can show the industry-standard certificates such as ISO 9001, ISO 14001, OHSAS 18001 and IATF 16949.
BECK Elektronik and PANJIT are bound in partnership for more than 15 years.

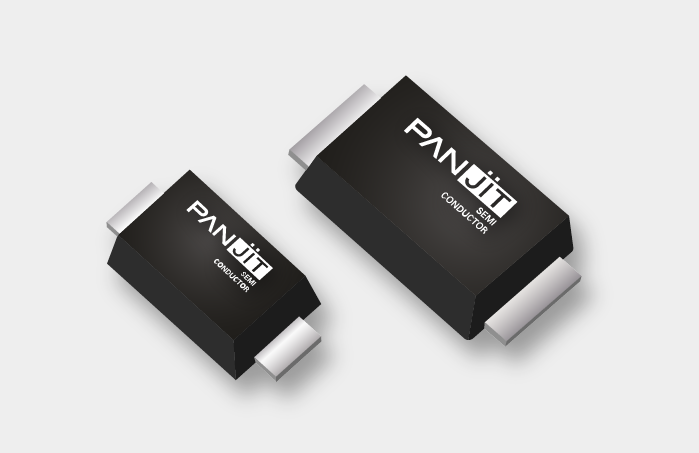

Panjit's Small Signal Switching Diodes has super fast TRR and low CJ characteristic, which is suitable to be used on rectification circuit of the signal.
Product overview of Small Signal Switching Diodes of our partner PANJIT International Inc.
Tabs
Schottky Diode

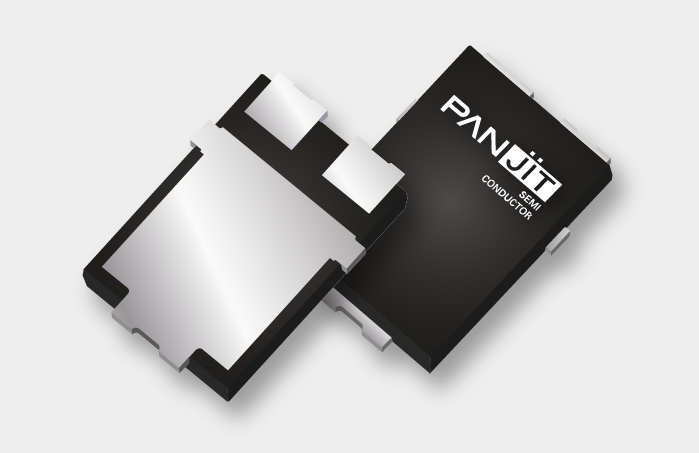

Schottky diodes are unipolar devices that have gained an increased importance in the medium power range, suitable for high switching frequency applications, for example as freewheeling diodes for MOSFETs.
Panjit's Schottky Diodes provide low forward voltage losses which can improve the power efficiency and low leakage current to improve the stability of the reliability.
- Panjit's Small Signal Schottky Diodes with rating under 1A applied to signal controller or rectification products.
Product overview of Small Signal Schottky of our partner PANJIT International Inc.
- Panjit's Power Schottky: Schottky Rectifier with rating 1A and higher, which is used in switching rectification application in power products. High type Schottky provides low IR and provides extremely low reverse current, low power dissipation and can sustain higher voltage which prevents the thermal runaway problem during high operating temperature.
Product overview of Power Schottky of our partner PANJIT International Inc.
- Panjit's Super Schottky: a new type Schottky offering a better choice.
This type of Schottky provides an extremely low Forward Voltage to decrease the breakdown current.
Product overview of Super Schottky of our partner PANJIT International Inc.
Tabs
Rectifier & Bridge Rectifier

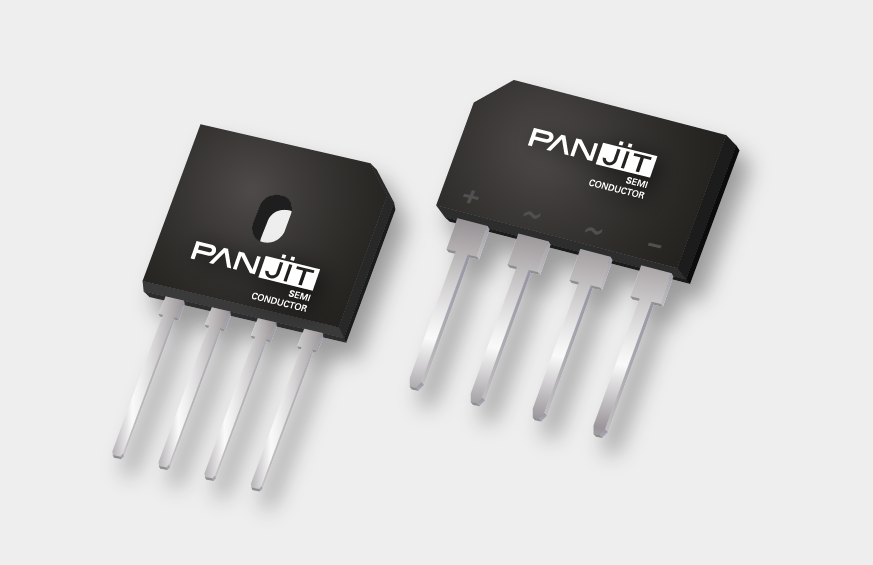

A Bridge rectifier is a type of full wave rectifier which uses four or more diodes in a bridge circuit configuration to efficiently convert AC current into DC current.
PANJIT provides various type of Rectifer including General Purpose, Fast recovery, Ultra Fast recovery and Super Fast Recovery Rectifer.
- Panjit's General Purpose Rectifiers (VRRM = 50 – 2000V , IO = 0.2 – 8A. ) can be generally applied to bridge rectification circuit and VCC rectifier circuit.
Product overview of General Purpose Rectifier of our partner PANJIT International Inc.
- Panjit's Fast Recovery Rectifiers (VRRM = 50 – 1000V , IO = 1 – 6A , TRR = 150 – 500ns) can be generally used in applications such as Snubber/VCC rectification.
Product overview of Fast Recovery Rectifiers of our partner PANJIT International Inc.
- Panjit's Ultra Fast Recovery Rectifiers (VRRM = 50 – 1300V , IO = 1 – 30A , TRR = 50 – 100ns) are generally used in secondary rectification and VCC rectifier.
Product overview of Ultra Fast Recovery Rectifiers of our partner PANJIT International Inc.
- Panjit's Super Fast Recovery Rectifiers (VRRM = 50 – 800V , IO = 1 – 30A , TRR = 25 – 50ns) are generally used in secondary rectification and PFC rectifier.
Product overview of Super Fast Recovery Rectifiers of our partner PANJIT International Inc.
- Panjit's FRED (VRRM = 600 – 1200V , IO = 4 – 30A)
Generally used in PFC Rectifier. QR Series is standard type and QRT Series is with low Trr. Products could be used respectively according the different operation mode of the PFC.
Product overview of FRED of our partner PANJIT International Inc.
- General Purpose Bridge Rectifiers (VRRM = 50 – 1200V)
It is generally used as AC/DC rectification.
Product overview of General Purpose Bridge Rectifiers of our partner PANJIT International Inc.
- Schottky Bridge Rectifiers (VRRM = 40 – 100V).
It is generally used as AC/DC rectification.
Product overview of Schottky Bridge Rectifiers of our partner PANJIT International Inc.
