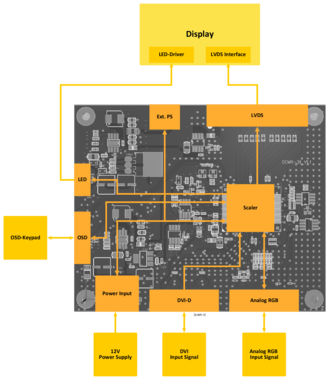

DCMR-32 is a DVI/HDMI and analog RGB to LVDS converter board which accepts common video signals. Digital interfaces DVI 1.0, HDMI 1.4a and all backward compatible signals are supported as well as analog RGB. It generates all necessary control signals and panel data to drive TFT LCDs with VDD level 3.3V, 5V or 12V.
This TFT controller board supports resolutions up to 1920x1200 (WUXGA) at a vertical refresh rate up to 60Hz. The user interface includes brightness, contrast adjustment, etc. by on-screen programming.
This board can fully replace DCMR-31 in form, fit and function.
Tabs
Specification
| Input Interface |
- DVI 1.0 interface - Analog RGB interface |
|---|---|
| Output Interface | Dual-LVDS 24-bit |
| Max. Resolution | 1920 * 1200 Pixels (WUXGA) @ 60Hz |
| Power Supply | 12 V |
| Display Power Supply | 3.3 / 5 / 12 V |
| Power consumption |
0.3W (standby) <1.8W (active mode) |
| Dimensions [W × D × H] | 110 * 90 * 8 mm |
| Features |
- DCMR-31 outline - Flat design - Separate adaptors for DVI, HDMI or VGA available - User-friendly OSD menu |
