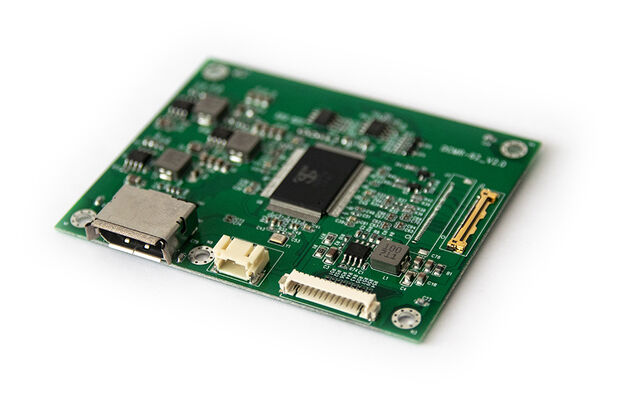

DCMR-62

TFT Controller

BECK Elektronik Bauelemente

This DisplayPort to embedded DisplayPort converter board accepts standard DisplayPort 1.2 and all backward compatible signals. It generates all necessary control signals and panel data to drive TFT LCDs.

This TFT controller board supports resolutions up to 1920x1200 (WUXGA) at a vertical refresh rate up to 60Hz. The user interface includes brightness, contrast adjustment, etc. by on-screen programming. Some OSD functions can be managed via I²C interface.

Tabs

Specification

Input Interface DisplayPort 1.2 interface with HDCP
Output Interface Embedded DisplayPort HBR
Max. Resolution 1920 × 1200 Pixels (WUXGA) @ 60Hz
Power Supply 12 V
Display Power Supply 3.3 / 5 V
Current consumption 123 mA
Dimensions [W × D × H] 90 * 70 * 9 mm
Features

- Standard 30 pin or 40 pin eDP interface

- DDC/CI support

- 5.4 GHz (HBR2) support

- Spread-Spectrum DPLL

- User-friendly OSD menu

Tabs

Downloads

Full product specification Download
Brief technical specification Download
