Open Frame Solution

E-Paper Module

eJump Logo
Visionect
Size
(cm)
Size
(inch)
Type Resolution
(X*Y)
Grey level Interface Power Supply Outline
(H*V*D, mm)
Weight
(kg)
Remark Image

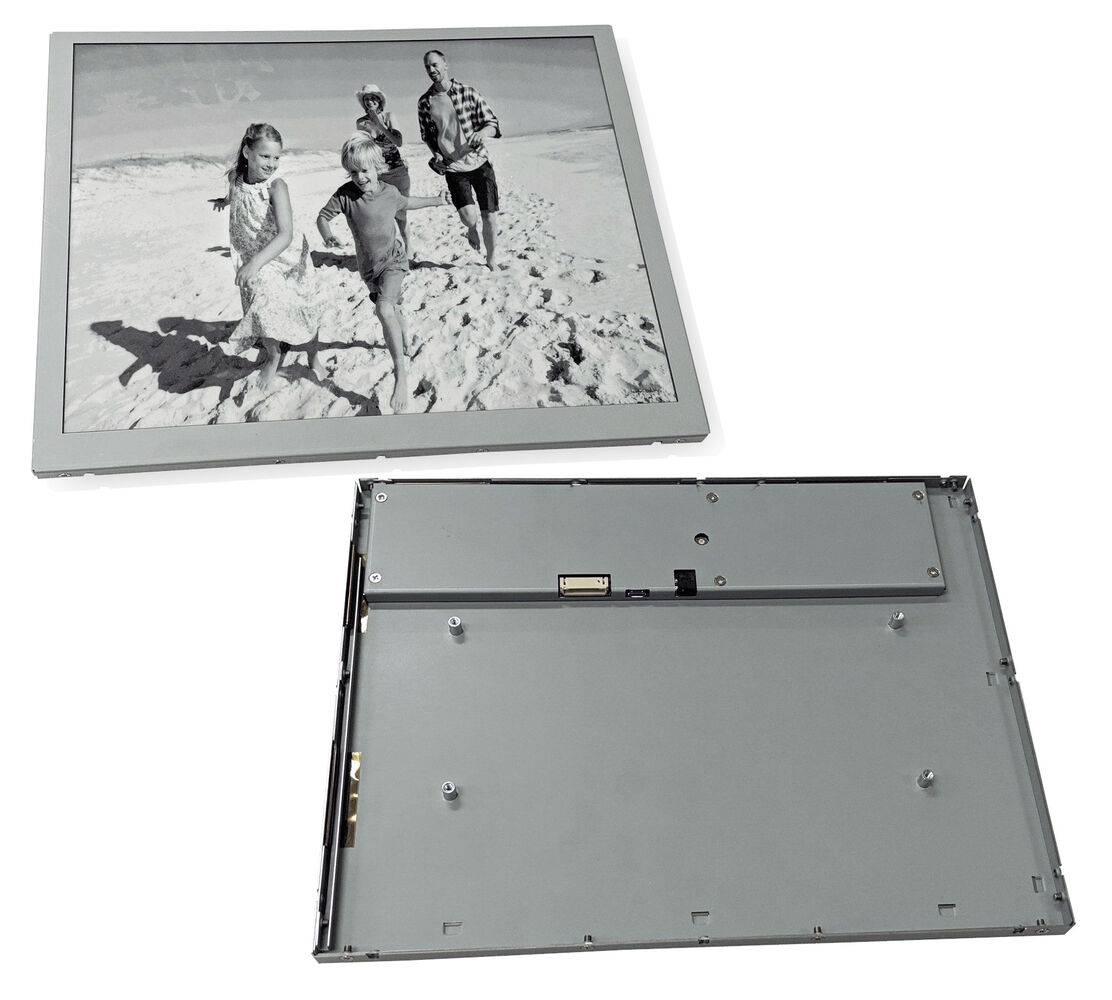

33.78 13.3 OP133G 1200*1600 4-bit monochrome (16 Grey Levels) USB / SPI 5V DC 295.7*228.0*10.0 0.6 VESA mount compliant, optional external front light, UV protection View picture Download
33.78 13.3 eModule_133 1200*1600 4-bit monochrome (16 Grey Levels) Quad band 2G / Dual band 3G /Bluetooth 4.0 LE 3.5V to 4.2V, with 2A 440.0*740.0*60.0 1.8 IP67, UV protection, web browser GUI, optionally LED lighting and a photovoltaic cell View picture Download
71.12 28.0 OF280G-FL 3840*1080 4-bit monochrome (16 Grey Levels) USB / SPI, UART for LED front light 12V DC 758.0*272.0*22.5 3.7 UV protection, Front light 150 nits, 3mm tempered glass, laminated without air gap No picture yet Download

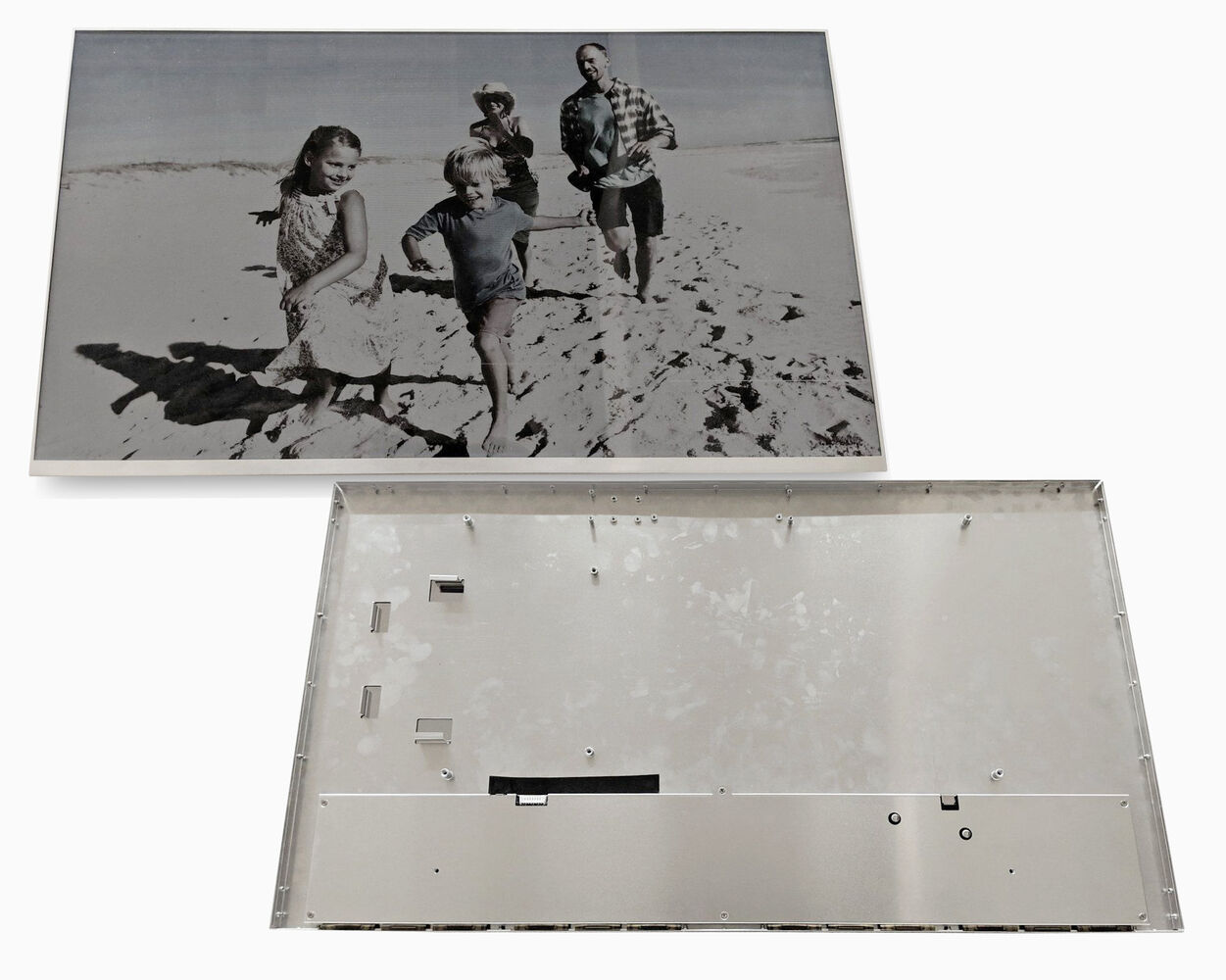

79.25 31.2 OP312G 2560*1440 4-bit monochrome (16 Grey Levels) USB / SPI 12V DC 698.7*405.5*15.0 1.6 VESA mount compliant View picture Download
79.25 31.2 eModule_312 2560*1440 4-bit monochrome (16 Grey Levels) Quad band 2G / Dual band 3G / WiFi  3.5V to 4.2V, with 2A 234.0*334.0*38.0 11.2 IP67, UV protection, web browser GUI, optionally LED lighting and a photovoltaic cell View picture Download
