E-Paper Module

Product Overview

Size
(cm)
Size
(inch)
Manufacturer Type Resolution
(X*Y)
Grey level Interface Power Supply Outline
(H*V*D, mm)
Weight
(kg)
Remark Image Type

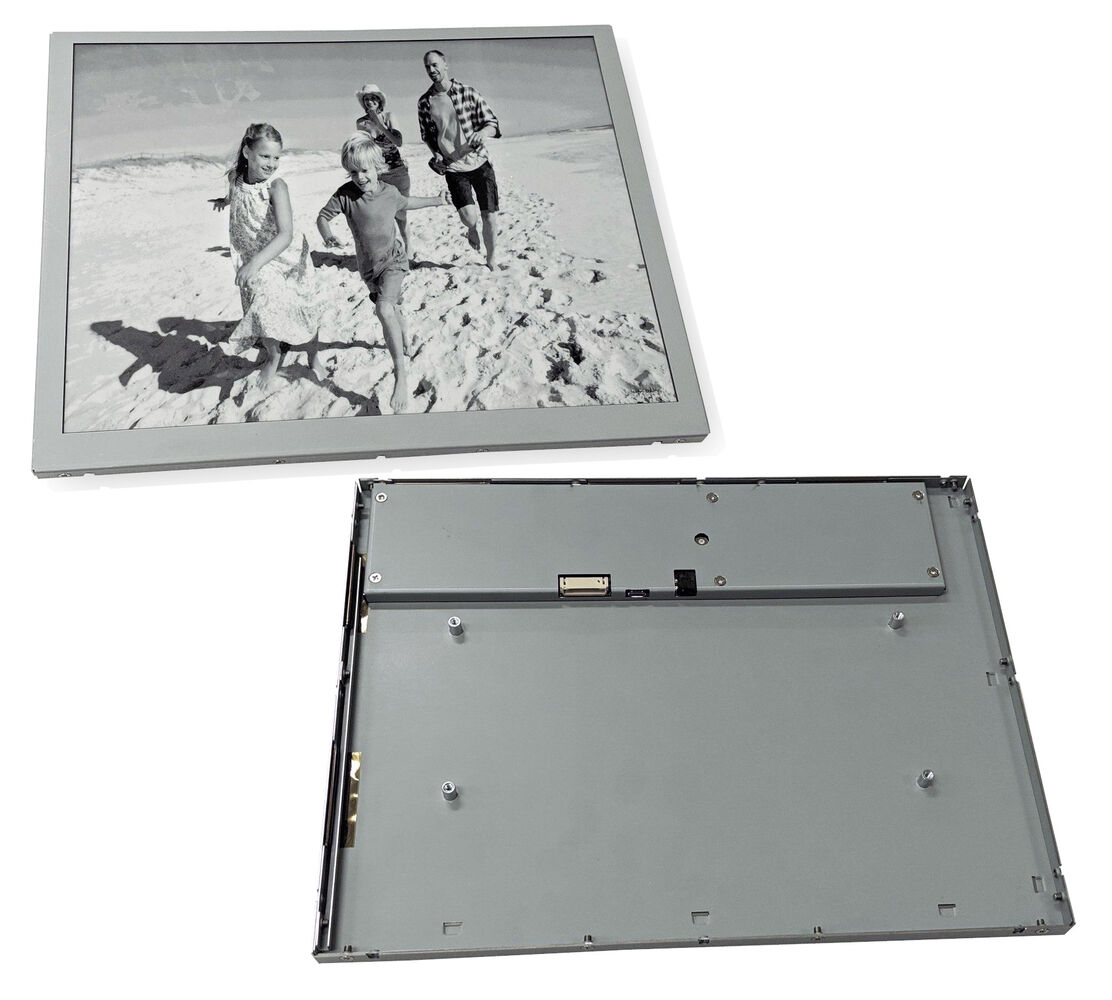

33.78 13.3 eJump OP133G 1200*1600 4-bit monochrome (16 Grey Levels) USB / SPI 5V DC 295.7*228.0*10.0 0.6 VESA mount compliant, optional external front light, UV protection View picture Download Open Frame Solution
71.12 28.0 eJump OF280G-FL 3840*1080 4-bit monochrome (16 Grey Levels) USB / SPI, UART for LED front light 12V DC 758.0*272.0*22.5 3.7 UV protection, Front light 150 nits, 3mm tempered glass, laminated without air gap No picture yet Download Open Frame Solution

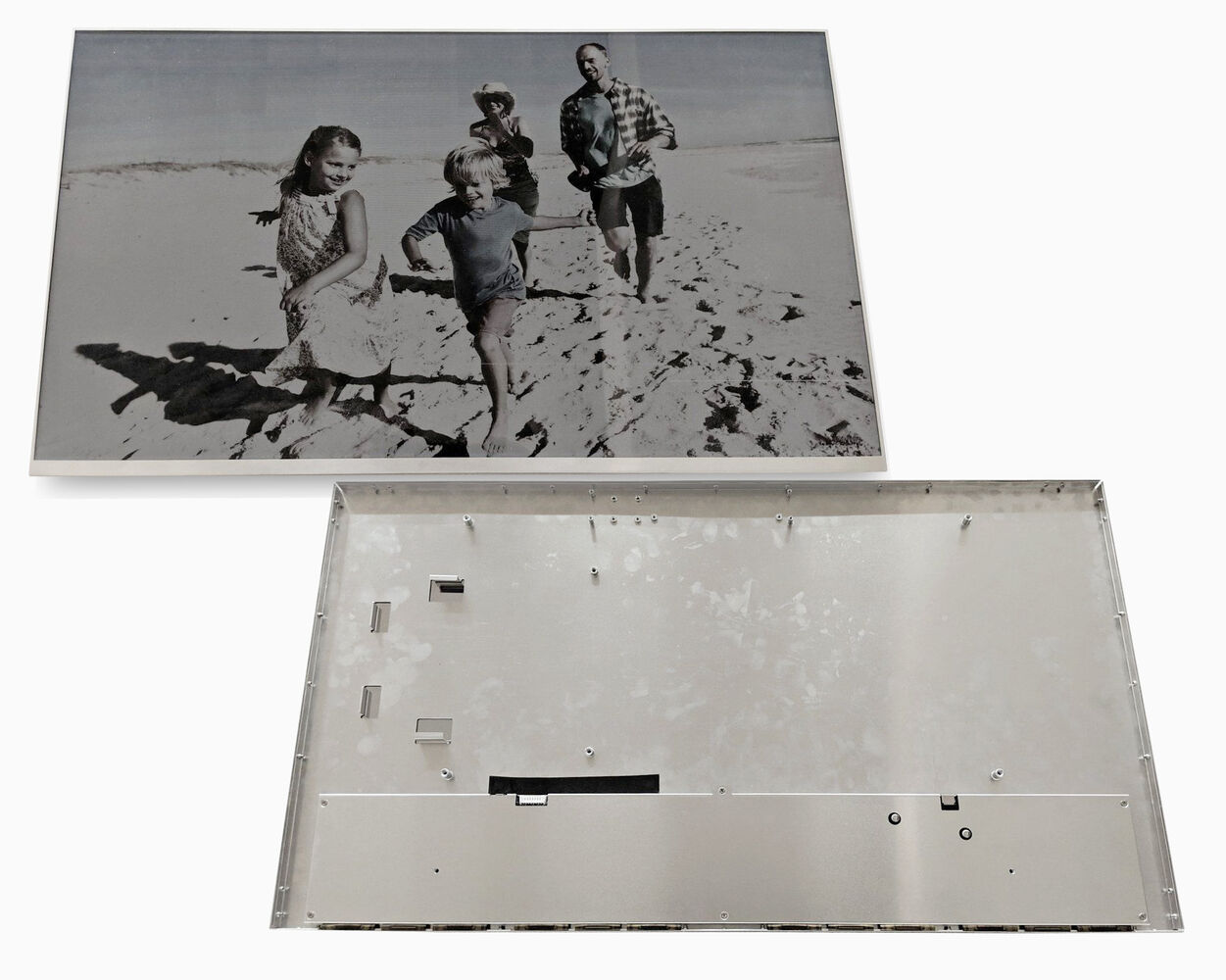

79.25 31.2 eJump OP312G 2560*1440 4-bit monochrome (16 Grey Levels) USB / SPI 12V DC 698.7*405.5*15.0 1.6 VESA mount compliant View picture Download Open Frame Solution
33.78 13.3 Visionect eModule_133 1200*1600 4-bit monochrome (16 Grey Levels) Quad band 2G / Dual band 3G /Bluetooth 4.0 LE 3.5V to 4.2V, with 2A 440.0*740.0*60.0 1.8 IP67, UV protection, web browser GUI, optionally LED lighting and a photovoltaic cell View picture Download Open Frame Solution
79.25 31.2 Visionect eModule_312 2560*1440 4-bit monochrome (16 Grey Levels) Quad band 2G / Dual band 3G / WiFi  3.5V to 4.2V, with 2A 234.0*334.0*38.0 11.2 IP67, UV protection, web browser GUI, optionally LED lighting and a photovoltaic cell View picture Download Open Frame Solution
33.78 13.3 Visionect Place&Play_133 1600*1200 4-bit monochrome (16 Grey Levels) WiFi 2.4 GHz Rechargeable Lithium-Polymer 10,000 mAh battery 230.0*297.0*10.5 0.9 Available in black and white housing, VESA mount compliant View picture Download Ready Solution
79.25 31.2 Visionect Place&Play_312 2560*1440 4-bit monochrome (16 Grey Levels) WiFi 2.4 GHz Rechargeable Lithium-Polymer 10,000 mAh battery 707.2*413.8*13.5 6.0 Available in black and white housing, VESA mount compliant View picture Download Ready Solution
79.25 31.2 CREA C07-EPS32-2 2560*1440 4-bit monochrome (16 Grey Levels) HDMI/USB/LAN AC 100-240V, 50/60Hz 704.0*441.0*33.0 4.5 Battery connection possible, VESA mount compliant No picture yet Download Ready Solution
106.68 42.0 CREA C06-EPS42-2 2016*2880 4-bit monochrome (16 Grey Levels) HDMI/USB/LAN AC 100-240V, 50/60Hz 658.0*880.0*33.0 7.4 Battery connection possible, VESA mount compliant No picture yet Download Ready Solution
79.25 31.2 RoadAds RA-EPD32 2560*1440 4-bit monochrome (16 Grey Levels) WLAN/LTE/GPS 12-24V 870.0*525.0*36.0 15.0 Battery connection possible, 7mm cover lense, IP6K9K housing made of  aluminum and stainless steel View picture Download Ready Solution
162.56 64.0 RoadAds RA-EPD64 5120*2280 4-bit monochrome (16 Grey Levels) WLAN/LTE/GPS 12-24V 1662.0*906.6*36.0 46.0 Battery connection possible, 7mm cover lense, IP6K9K housing made of  aluminum and stainless steel View picture Download Ready Solution
