E Ink Active Matrix E-Paper Display

E-ink

E Ink is the originator, pioneer and commercial leader in ePaper technology. The company delivers its advanced display products to the world's most influential brands and manufacturers, enabling them to install extremely durable, low power displays in previously impossible or unimaginable applications and environments.

E Ink encompasses the combined E Ink Corporation, which was spun out of the MIT Media Lab in 1997 to commercialize electronic ink and EPD technology, and Prime View International, which was established in 1992 as the first TFT LCD company in Taiwan, focusing on high quality small-to-medium-sized TFT LCDs. In 2009, Prime View acquired E Ink Corporation to further integrate and expand the EPD supply chain and the new combined companies were branded as E Ink.

E Ink’s corporate philosophy centers around delivering revolutionary products, excellent user experiences, and environmental benefits through advanced technology development.

Size
(cm)
Size
(inch)
Part Number Model Name Structure Resolution
(H*V)
Active Area
(H*V, mm)
Outline Dimensions
(mm)
Backplane Total Thickness
(mm)
Grey Level Interface Remark Image  Brief Technical Specification
2.39 0.94 ET009TT1 VB3300-OJA EPD (round w/hole) 240*240 24.00*24.00 27.80*30.43 Mobius 0.570 4 SPI No picture yet
2.79 1.10 ET011TT2 ET011TT2 EPD (round) 240*240 27.96*27.96 34.6*31.8 Mobius 0.540 4 SPI View picture
2.79 1.10 ET011TJ2 ET011TJ2 EPD (round w/hole) 240*240 27.96*27.96 34.6*31.8 Mobius 1.186 4 SPI No picture yet
2.79 1.10 ET011TT3 ET011TT3 EPD (round w/hole ) 240*240 27.96*27.96 34.6*31.8 Mobius 0.550 4 SPI No picture yet
3.23 1.27 ED013TC1 ED013TC1 EPD 256*128 14.464*28.928 18.7*40.8 Glass 1.010 B/W SPI View picture
3.23 1.27 ED013TC2 VB3300-ACA EPD 256*128 14.464*28.928 18.7*40.8 Glass 1.010 B/W SPI ED013TC1 and ED013TC2's panel design is the same. ED013TC1 is with folded back FPC. ED013TC2 is with flat FPC.  No picture yet

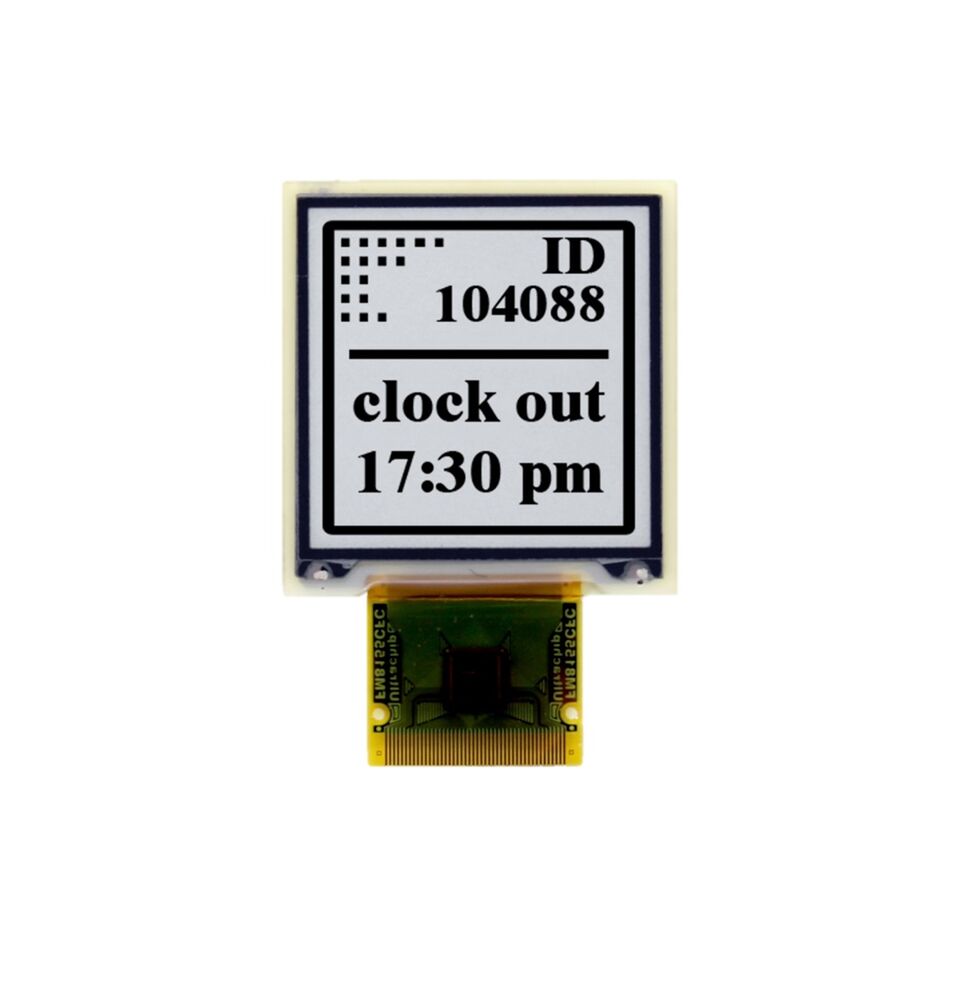

3.30 1.30 ET013TT1 ET013TT1 EPD 256*256 23.296*23.296 28.4*27.1 Mobius 0.400 B/W SPI View picture
3.63 1.43 ET014TT1 ET014TT1 EPD 296*128 14.464*33.448 18.3*42.7 Mobius 0.607 4 SPI View picture
3.63 1.43 ET014TT6 ET014TT6 EPD 128*296 14.464*33.448 18.3*42.7 Mobius 0.400 B/W SPI View picture
5.41 2.13 EL021TC1 VC2207-BAA EPD 250*122 48.55*23.70 59.2*29.2 Glass 0.930 B/W SPI No picture yet
5.41 2.13 EL021TR1 EA2220-BAA EPD 250*122 48.55*23.70 59.2*29.2 Glass 0.910 B/W/R SPI No picture yet
6.76 2.66 EL026TR2 EA2220-BFB EPD 296*152 60.09*30.70 71.82*36.30 Glass 1.100 B/W/Y SPI No picture yet
6.76 2.66 EL026TR3 EA2220-BFC EPD 296*152 60.09*30.70 71.82*36.30 Glass 0.970 B/W/R SPI No picture yet
7.21 2.84 ED028TC1 VF1148-BHA EPD 480*600 45.12*56.40 49.42*67.70 Glass 0.776 16 SPI No picture yet
7.37 2.90 ED029TC4 LV1932-BJD EPD 300*200 61.5*41.0 78.40*47.82 Glass 0.756 B/W SPI No picture yet
7.37 2.90 ED029TC1 VC2207-BJA EPD 296*128 66.90*29.06 79.0*36.7 Glass 1.150 B/W SPI View picture
7.37 2.90 EL029TC1 VG1942-BJA EPD 296*128 66.90*29.06 79.0*36.7 Glass 1.150 B/W SPI View picture
7.37 2.90 EL029TC2 LV1932-BJA EPD 296*128 66.90*29.06 79.0*36.7 Glass 1.130 B/W SPI No picture yet
7.37 2.90 EL029TR2 EA2220-BJB EPD 296*128 66.90*29.06 79.0*36.7 Glass 0.910 B/W/R SPI No picture yet
7.37 2.90 EL029TR3 EA2220-BJC EPD 296*128 66.90*29.06 79.0*36.7 Glass 0.910 B/W/R SPI No picture yet
7.39 2.91 ET029TC1 VC2207-BJB EPD 300*200 61.5*41.0 80.22*50.22 Mobius 0.621 B/W SPI View picture
7.39 2.91 EU029TC1 LV1932-BJB EPD 300*200 61.5*41.0 80.22*50.22 Mobius 0.770 B/W SPI No picture yet
9.37 3.69 ED037TC1 VB3300-CGA EPD 280*480 47.32*81.12 54.9*93.3 Glass 0.780 4 SPI No picture yet
9.37 3.69 ED037TC2 LV1932-CGA EPD 280*480 47.32*81.12 54.9*93.3 Glass 0.760 B/W SPI No picture yet
10.19 4.01 AC040TC1 AB1024-DOA EPD 640*400 86.4*54.0 96.80*68.70 Glass 0.910 K/W/R/Y/G/B/O SPI TFT MOQ 9K No picture yet
10.29 4.05 ET040TC2 VA3200-DOA EPD 480*720 57.12*85.68 63.5*98.9 Mobius 0.682 B/W TTL View picture
10.29 4.05 ET040TC3 VA3200-DOB EPD 480*720 57.12*85.68 63.5*98.9 Mobius 0.682 B/W TTL No picture yet
10.92 4.30 ED043WC3 VA3200-DCA EPD 800*480 56.16*93.60 62.4 *106.4 Glass 0.812 16 TTL View picture
13.13 5.17 ED052TC4 VB3300-EBA EPD 1280*720 64.44*114.56 69.14*124.59 Glass 0.680 16 TTL No picture yet
14.35 5.65 ED057TC2 VC2207-EGA EPD 600*448 114.9*85.8 125.4*99.5 Glass 1.150 B/W SPI View picture
14.35 5.65 EL057TR3 EA2220-EGH EPD 600*448 114.9*85.8 125.4*99.5 Glass 0.910 B/W/R SPI To replace ED057TC6/EL057TR1 No picture yet
14.35 5.65 EL057TY5 EA2220-EGL EPD 600*448 114.9*85.8 125.4*99.5 Glass 0.910 B/W/Y SPI To replace EL057TY2 No picture yet
14.35 5.65 AC057TC1 AB1024-EGA EPD 600*448 114.9*85.8 125.4*99.5 Glass 0.910 K/W/R/Y/G/B/O SPI No picture yet Download
14.83 5.84 EC058TC1 SA1452-EHA EPD (color layer) 720*1440 65.16*133.20 69.48*140.60 Glass 0.760 Color TTL No picture yet
15.24 6.00 ED060KC1 ED060KC1 EPD 1072*1448 90.6*122.4 101.8*138.4 Glass 1.010 16 TTL View picture
15.24 6.00 ED060XCG VD1405-FOA EPD 1024*758 90.6*122.4 101.8*138.4 Glass 0.780 16 TTL No picture yet
15.24 6.00 ED060XH9 VB3300-FOG EPD+TP+FL 1024*758 90.6*122.4 101.8*138.4 Glass 2.340 16 TTL No picture yet
15.24 6.00 ED060XH7 VB3300-FOC EPD+TP+FL 1024*758 90.6*122.4 101.8*138.4 Glass 2.060 16 TTL View picture
15.24 6.00 ED060KH6 VB3300-FOE EPD+TP+FL 1072*1448 90.6*122.4 101.8*138.4 Glass 2.000 16 TTL No picture yet
15.24 6.00 EC060KH1 SA1452-FOA EPD+TP+FL 357*482 90.6*122.4 101.8*138.4 Glass 1.970 16 TTL Print color No picture yet
17.02 6.70 ED067KC1 VB3300-FGA EPD 900*1800 76.05*152.10 80.25*159.70 Glass 0.781 16 TTL No picture yet
17.02 6.70 EC067KC1 SA1452-FGA EPD (color layer) 900*1800 76.05*152.10 80.25*159.70 Glass 0.756 Color TTL No picture yet
17.27 6.80 ED068TH3 VB3300-FHA EPD+TP+FL 1440*1080 103.68*138.24 119.7*158.5 Glass 1.840 16 TTL No picture yet
17.78 7.00 ED070KH1 VB3300-GOA EPD+TP+FL 1680*1264 141.96*106.81 148.6*120.7 Glass 1.890 16 TTL No picture yet
17.78 7.00 ED070KC4 VD1400-GOC EPD 1680*1264 141.96*106.81 148.6*120.7 Glass 0.680 16 TTL No picture yet
19.81 7.80 ED078KC2 VB3300-GHC EPD 1404*1872 118.638*158.184 127.6*173.8 Glass 0.780 16 TTL No picture yet
19.81 7.80 EC078KH3 SC1452-GHA EPD+TP+FL 1404*1872 118.638*158.184 127.6*173.8 Glass 1.900 16 TTL No picture yet
19.81 7.80 ED078KH4 VB3300-GHB EPD+TP+FL 1404*1872 118.638*158.184 127.6*173.8 Glass 2.120 16 TTL No picture yet
20.32 8.00 ES080KC2 VD1400-HOB EPD 1920*1440 162.24*121.68 167.84*138.98 Mobius 0.480 16 TTL No picture yet
24.64 9.70 ED097TC2 VB3300-JGA EPD 1200*825 202.8*139.425 218.8*156.425 Glass 1.150 16 TTL View picture
24.64 9.70 EL097TR2 EA2220-JGB EPD 1200*825 202.8*139.425 218.8*156.420 Glass 1.110 B/W/R TTL To replace EL097TR1 No picture yet
25.40 10.00 ED100UC1 VB3300-KOA EPD 1600*1200 152.4*203.2 160.0*218.9 Glass 0.780 16 TTL No picture yet

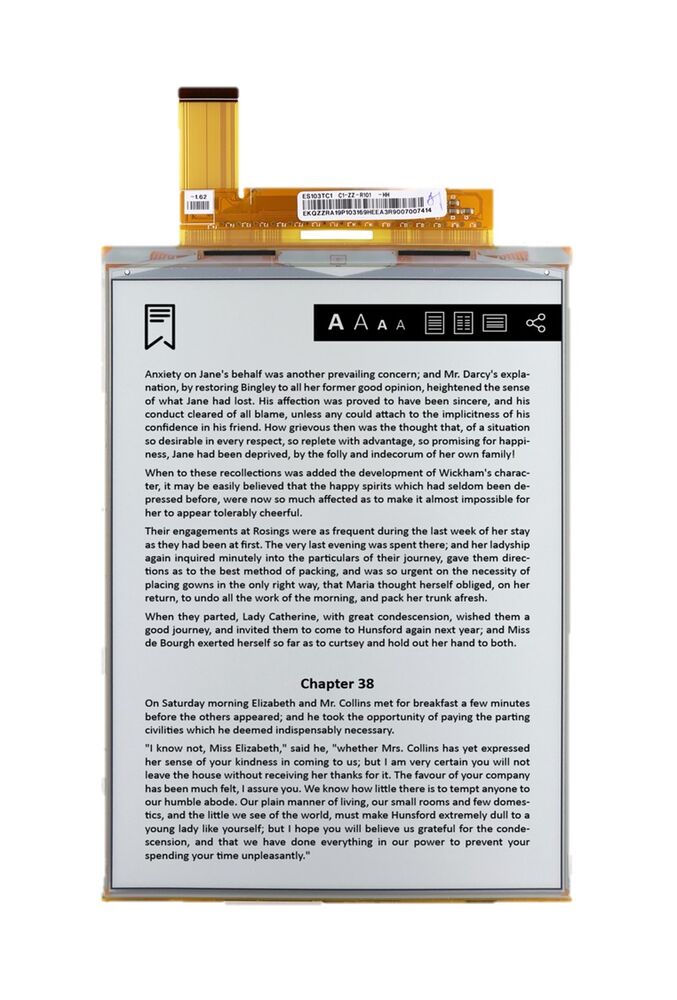

26.16 10.30 ES103TC1 VB3300-KCA EPD 1404*1872 157.248*209.664 165.8*227.7 Mobius 0.650 16 TTL View picture
26.16 10.30 ED103TC2 VB3300-KCD EPD 1872*1404 157.248*209.664 209.7*157.3 Glass 0.780 16 TTL No picture yet
26.16 10.30 EC103TD1 SA1452-KCC EPD+EMR BW:*624*468 209.66*157.25 216.7*174.4 Glass 1.080 16 TTL No picture yet
27.43 10.80 ES108FC2 VB3300-KHA EPD 1920*1080 239.04*134.46 247.04*153.76 Mobius 0.440 16 TTL No picture yet
28.70 11.30 ED113TC2 VB3300-LCB EPD 2400*1034 264.00*113.74 279.40*124.71 Glass 0.973 16 TTL No picture yet
33.78 13.30 ES133TT5 VH1948-NCC EPD 2200*1650 270.6*203.0 287*215.5 Mobius 0.400 16 TTL Successor of ES133TT3 No picture yet
33.78 13.30 AC133UT1 AA1020-NCA EPD 1600*1200 270.4*202.8 285.80*213.65 Glass 0.953 - TTL View picture Download

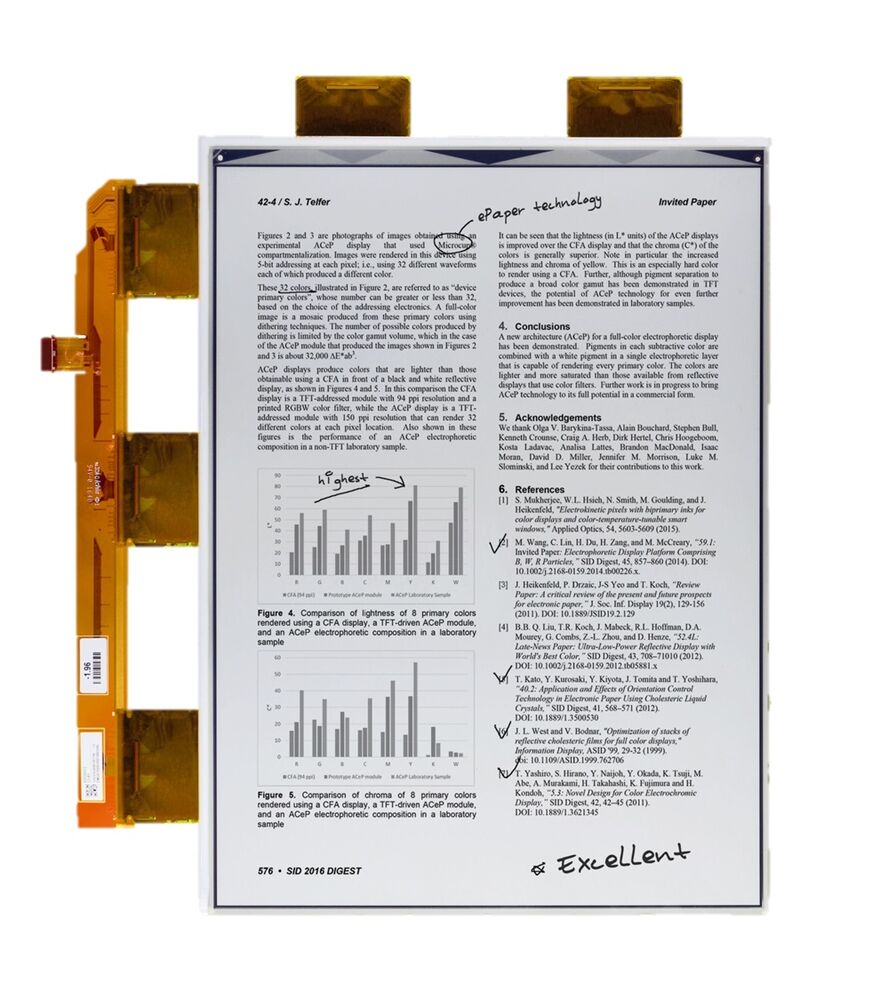

33.78 13.30 ED133UT2 VB3300-NCB EPD 1600*1200 270.4*202.8 285.80*213.65 Glass 0.780 16 TTL View picture
33.78 13.30 ED133UT3 VB3300-NCC EPD 1600*1200 270.4*202.8 285.80*213.65 Glass 0.780 16 TTL Wide temp waveform No picture yet
33.78 13.30 EL133UR1 EA2220-NCC EPD 1600*1200 270.4*202.8 285.80*213.65 Glass 0.910 B/W/R TTL To replace EL133US1 No picture yet
35.56 14.00 ED140TT1 VB3300-IDA EPD 300*1440 70.5*338.4 85.7*349.2 Glass 0.950 B/W TTL View picture
64.26 25.30 AC253TT1 AA1020-PEA EPD 3200*1800 560.0*315.0  576.5*333.0 Glass 0.930 Full color Mini-LVDS View picture Download

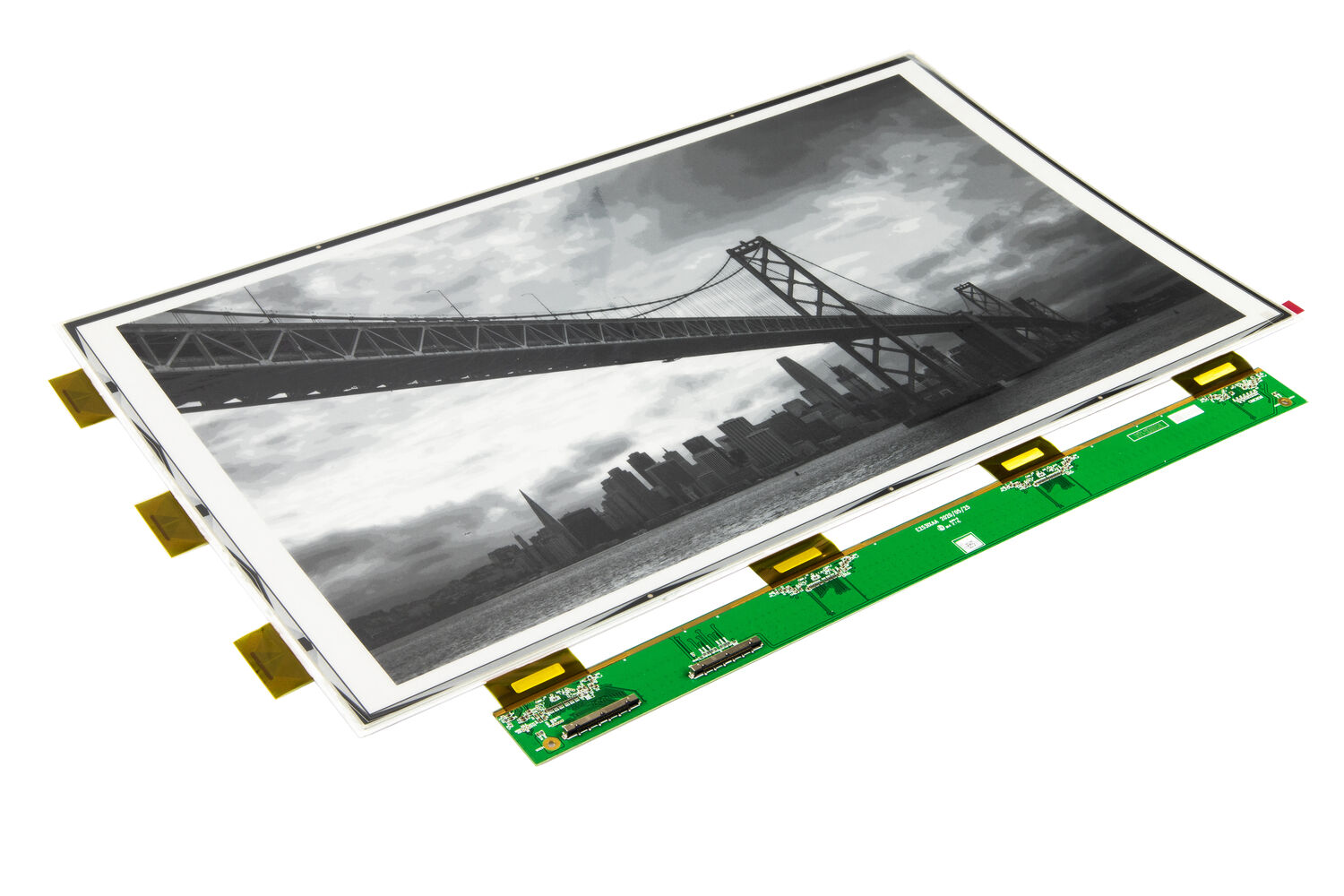

64.26 25.30 ED253TT1 VB3300-PEA EPD 3200*1800 560.0*315.0  576.5*333.0 Glass 0.930 16 Mini-LVDS View picture Download
64.26 25.30 ED253TT3 VB3300-PEC EPD 3200*1800 560.0*315.0  576.5*333.0 Glass 0.930 16 Mini-LVDS Wide temp waveform View picture Download
64.26 25.30 EL253TV1 EB2000-PEA EPD 3200*1800 560.0*315.0  576.5*333.0 Glass 0.930 B/W/R/Y Mini-LVDS View picture Download
71.12 28.00 G280AR1-102 EPD 3840*1080 683.52*192.24 698.6*209.3 Glass 0.950 Full color Mini-LVDS Bar type 32:9 / Hard coat View picture Download
71.12 28.00 ED280TT1 VB3300-PHA EPD 3840*1080 683.52*192.24 698.6*209.3 Glass 0.820 16 Mini-LVDS Wide temp waveform View picture Download
79.25 31.20 ED312TT2 VA3200-QAA EPD 2560*1440 691.2*388.8 697.2*402.8 Glass 0.805 16 TTL View picture
79.25 31.20 ED312TT3 VA3200-QAB EPD 2560*1440 691.2*388.8 697.2*402.8 Glass 0.805 16 TTL Wide temp waveform View picture
79.25 31.20 EC312TT2 SB1452-QAA EPD 1280*720 691.2*388.8 697.2*402.8 Glass 1.130 16 TTL View picture
106.68 42.00 ED420TT3 VB3300-RBA EPD 2160*2880 642.6*856.8 650.0*872.5 Glass 0.805 16 TTL View picture
106.68 42.00 ED420TT5 VB3300-RBB EPD 2160*2880 642.6*856.8 650.0*872.5 Glass 0.805 16 TTL Wide temp waveform No picture yet
