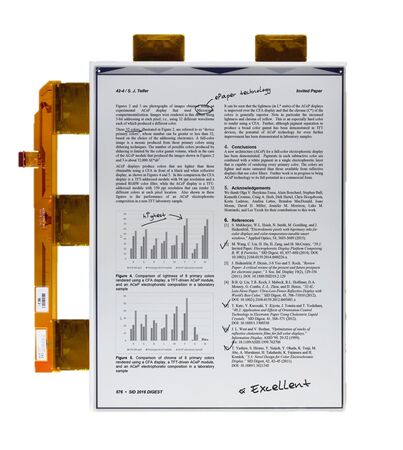

ED133UT2 is a reflective electrophoretic E Ink® technology display module based on active matrix TFT substrate.
It has 13.3" active area with 1600 × 1200 pixels, the display is capable to display images at 2-16 gray levels (1-4 bits) depending on the display controller and the associated waveform.
Tabs
Specification
| Size | 13.3 inch |
|---|---|
| Resolution (HxV) | 1600 * 1200 |
| Active Area | 270.40 * 202.80 mm |
| Outline Dimensions | 285.80 * 213.65 mm |
| Dpi | 150 |
| E Ink Film | Carta 1.2 |
| Refresh Time | 450 ms |
| Backplane | Glass |
| Total Thickness | 0.78 mm |
| Total Weight | 96 g |
| Grey Level | 16 |
| Front Light | - |
| Surface Treatment | Hard Coat |
| Partial update | yes |
Tabs
Driving kits
| Product | Image Update Possibility | Output Signal | Resolution, max. | Power Supply | Outline | Remark |
|---|---|---|---|---|---|---|
| EPD driver | SD card, USB, SPI | TTL | 2200 * 1650 |
3.3 V / 5 V | 100 * 50 | External configuration, FPC adapter |
| EJ8951E-1 | USB | TTL | 1600 * 1200 | 5 V | 180 * 45 | API 2.0, R/B/W support |
