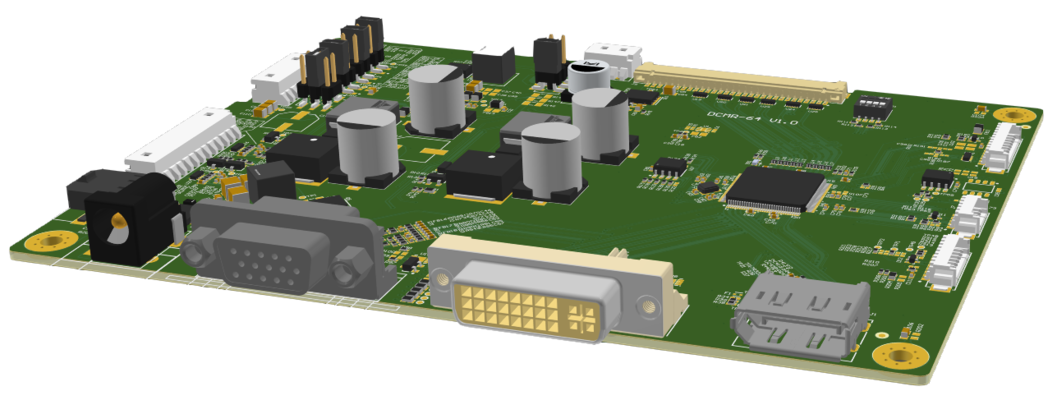

DCMR-64

TFT Controller

BECK Elektronik Bauelemente

This DisplayPort, DVI-I and analog RGB to LVDS converter board accepts common video signals. DisplayPort 1.2, DVI 1.0, HDMI 1.4a and all backward compatible signals are supported as well as analog RGB. It generates all necessary control signals and panel data to drive TFT LCDs with VDD levels 3.3V, 5V or 12V.

This TFT controller board supports resolutions up to 1920x1200 (WUXGA) at a vertical refresh rate up to 60Hz. The user interface includes backlight, brightness, contrast, etc. adjustment by on-screen programming. For automatic backlight adjustment an ambient light sensor is supported. Several OSD functions can be managed via embedded I²C- or DDC/CI-interface. All necessary settings for the respective display (7” … 42”) are configurable by the user.

This board is available in different assembly configurations.

Tabs

Specification

Input Interface

- Display Port 1.2 interface

- DVI 1.0 interface

- Analog RGB interface

Output Interface Dual-LVDS 24-bit
Max. Resolution 1920 * 1200 Pixels (WUXGA) @ 60Hz
Power Supply 12V/DC … 32V/DC
Display Power Supply 3.3 / 5 / 12 V
Power consumption

0.3W (standby)

<1.4W (active mode)

Dimensions [W × D × H] 150 * 110 * 16 mm
Features

- DCMR-60 outline

- Up to 32V input voltage

- I²C control interface (for e.g. light sensor)

- Free GPIO, PWM and ADCs (for customized features)
