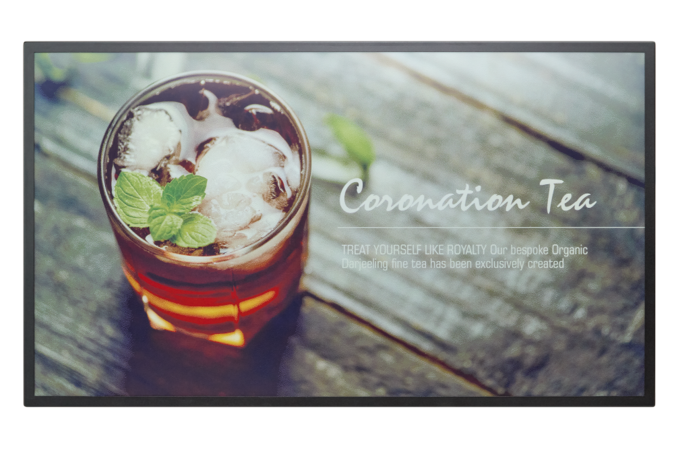

EL315TW1 is a color, reflective electrophoretic E Ink® Spectra 6 technology display module. It is based on active matrix TFT substrate.
It has 31.5” active area, the display is capable to display full color images depending on the display controller and the associated waveform file it used.
Tabs
Specification
| Size | 31.5 inch |
|---|---|
| Resolution (HxV) | 2560 * 1440 |
| Active Area | 696.32 * 391.68 mm |
| Outline Dimensions | 703.52 * 406.48 mm |
| Dpi | 94 |
| E Ink Film | Spectra 6 |
| Backplane | Glass |
| Total Thickness | 0.848 mm |
| Grey Level | Full color |
| Front Light | - |
| Interface | QSPI |
| Operational temperature range | 0°C ~ + 50°C |
| New nomenclature | ED2208-QBA |
Tabs

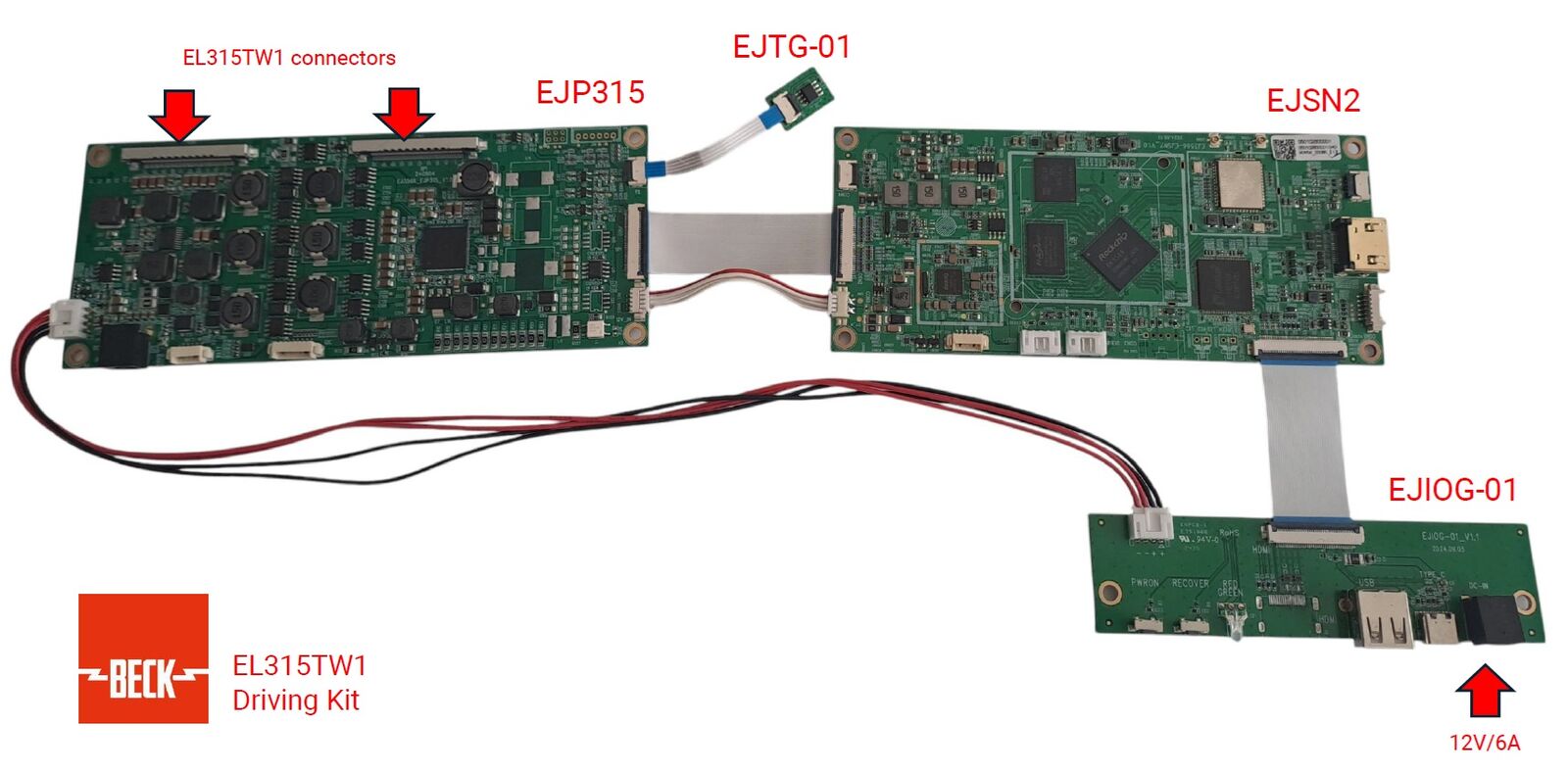

Driving kits
| Product | Image Update Possibility | Output Signal | Resolution, max. | Power Supply | Outline | Remark |
|---|---|---|---|---|---|---|
| EJSN2 | USB, WiFi, Bluetooth | Quad SPI | 2560*1440 | 12V | 150*65mm |

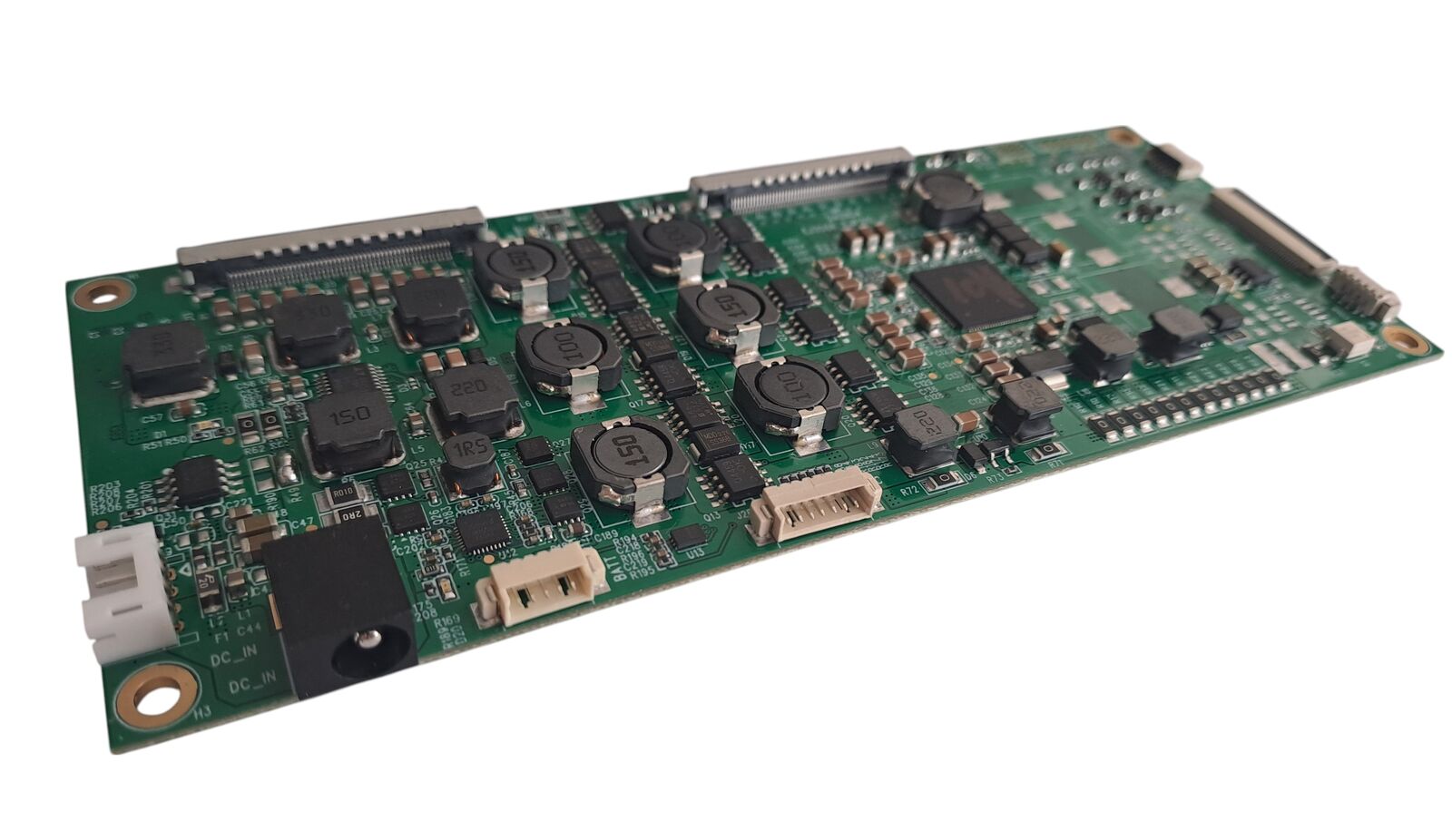

External temperature sensor board and I/O board. EL315TW1 requests an external power board. |
