ES103TC1

Active Matrix E-Paper Display

E-ink

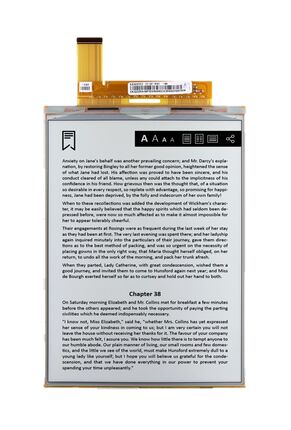

ES103TC1 is a reflective electrophoretic E Ink technology display module based on active matrix TFT and plastic substrate. The plastic substrate is protected by an outer covering.

Tabs

Specification

Size 10.3 inch
Resolution (HxV) 1404 * 1872
Active Area 157.25 * 209.66 mm
Outline Dimensions 165.80 * 227.70 mm
Dpi 226
E Ink Film Carta 1.2
Refresh Time 450 ms
Backplane Flexible
Total Thickness 0.65 mm
Total Weight 32 g
Grey Level 16
Front Light  -
Surface Treatment Anti-glare

Tabs

Driving kits


Product
Image Update Possibility
Output Signal
Resolution, max.
Power Supply
Outline
Remark
EPD driver SD card, USB, SPI TTL
2200 * 1650		 3.3 V / 5 V 100 * 50 External configuration, FPC adapter
