Display Controller

Product Overview

The display controllers are designed to address the growing demands for efficient display solutions. TFT-LCD and EPD panels are integrated in a huge number of end devices and need to be driven by correspondent electronic. A wide range of communication interfaces is supported by the display controller boards. The requested combination of input and output signal, outline parameters and driving voltages can be chosen according to the listed values.

Type Input Signal Output Signal Resolution max. (X*Y) Voltage (V) Outline (H*V, mm) Remark Image Type

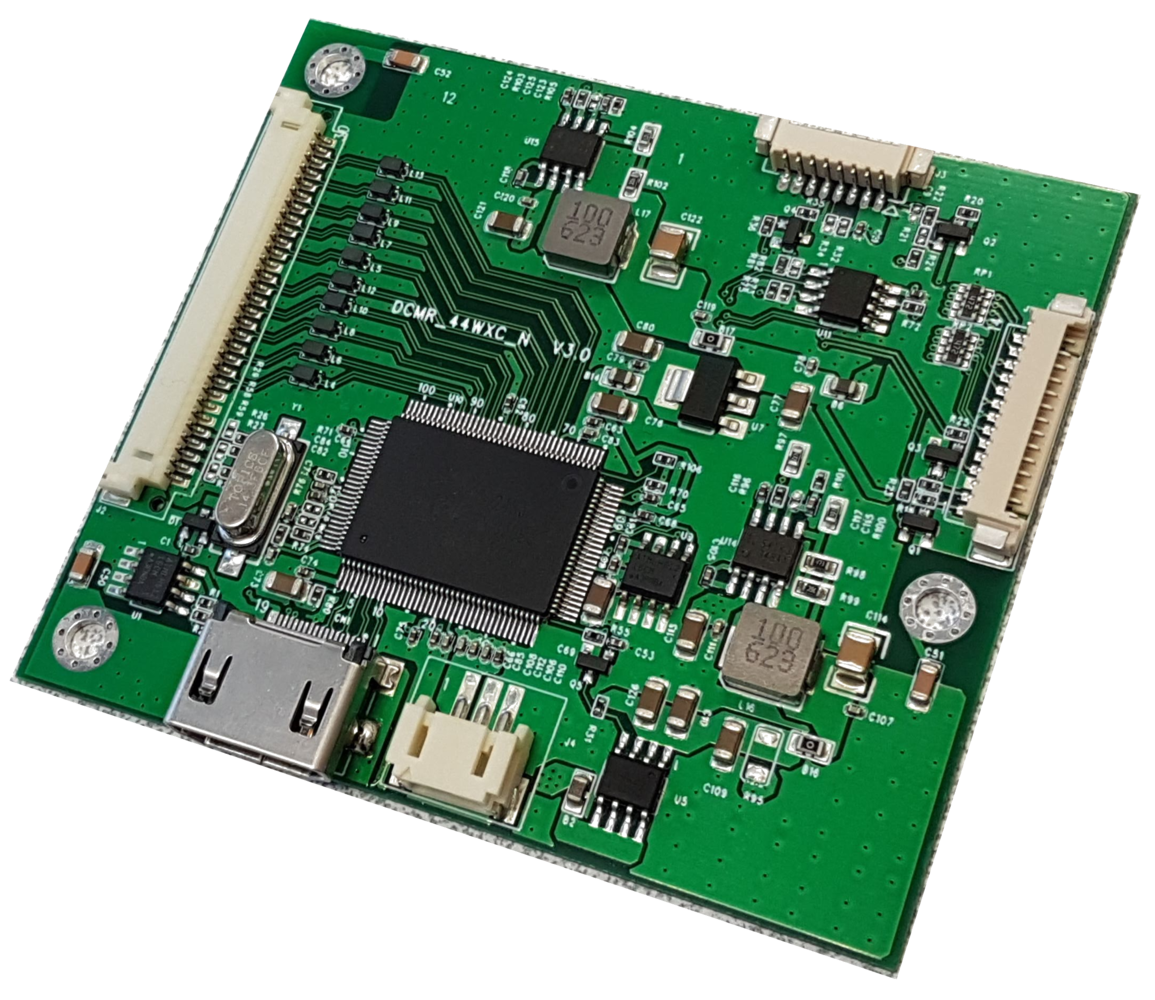

DCMR-20 HDMI LVDS 1920*1200 3.3 / 5.0 / 12.0 80*70 Extra small size kit View picture Download TFT Controller
DCMR-30 RGB, DVI, HDMI LVDS 1680*1440 3.3 / 5.0 / 12.0 110*90 EOL, Small size kit, external connectors View picture Download TFT Controller
DCMR-35 RGB, DVI, HDMI LVDS 1920*1200 3.3 / 5.0 / 12.0 110*90 EOL, Small size kit, external connectors View picture Download TFT Controller
DCMR-40 RGB, DVI LVDS, TTL 1680*1440 3.3 / 5.0 / 12.0 150*110 EOL, Medium size kit View picture Download TFT Controller
DCMR-44 HDMI LVDS 1920*1200 3.3 80*70 Extra small size kit View picture Download TFT Controller
DCMR-45 RGB, DVI LVDS, TTL 1920*1200 3.3 / 5.0 / 12.0 150*110 EOL, Medium size kit View picture Download TFT Controller
DCMR-60 RGB, DVI, DisplayPort LVDS 1920*1200 3.3 / 5.0 / 12.0 150*110 Medium size kit View picture Download TFT Controller
DCMR-61 DisplayPort LVDS 1920*1200 3.3 / 5.0 80*74 Extra small size kit View picture Download TFT Controller
DCMR-62 DisplayPort eDP 1920*1200 3.3 / 5.0 90*70 Small size kit View picture Download TFT Controller
CONCERTO USB TTL 1600*1200 5.0 120*80 For demonstration goals, R/B/W support View picture Download EPD Controller
EJ8951-1T USB, SPI TTL 1600*1200 5.0 120*36 Easy driving View picture Download EPD Controller

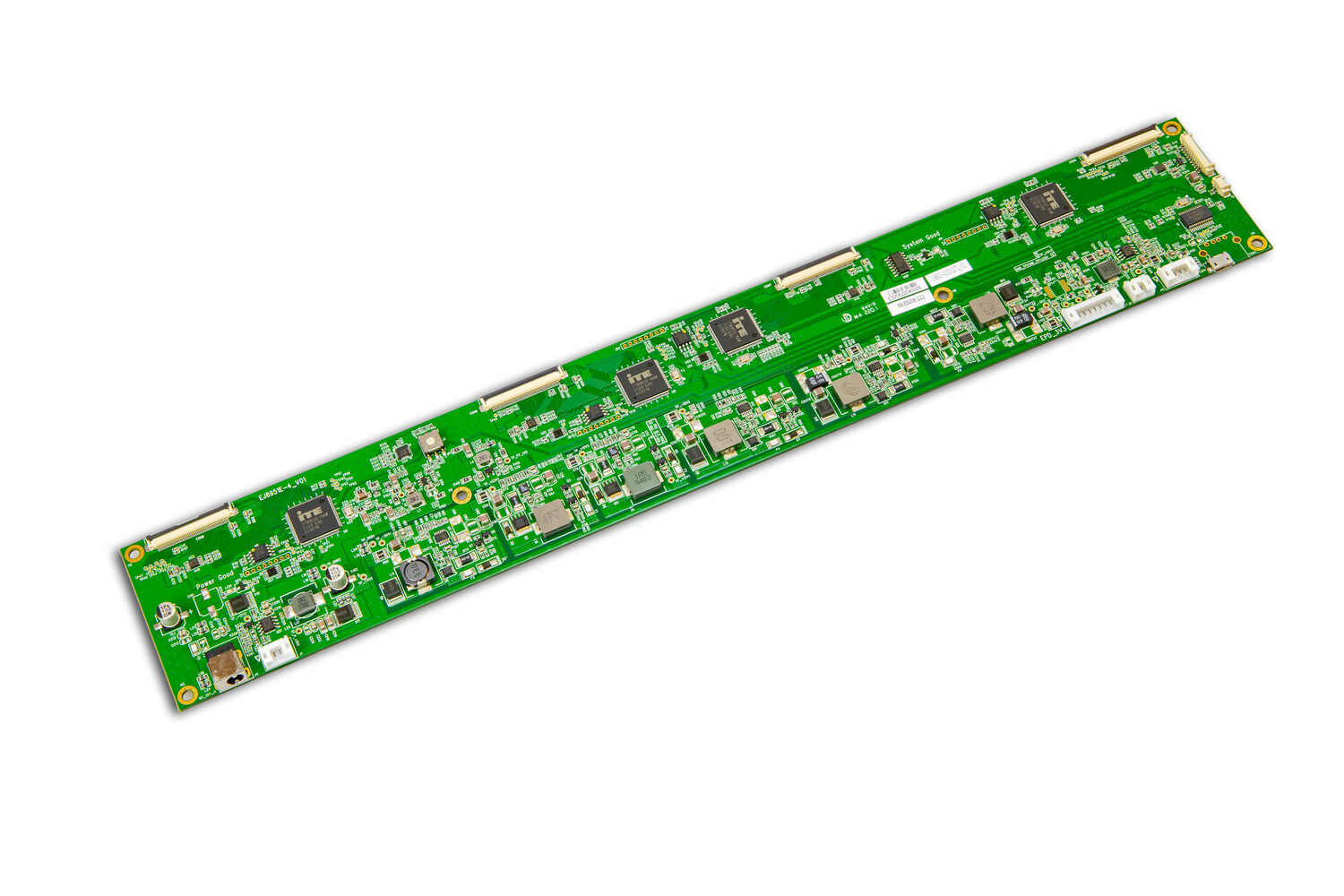

EJ8951-4T USB, SPI 4xTTL 2880*2160 12.0 400*65 Easy driving View picture Download EPD Controller
EPD driver SD card, USB, SPI TTL 2200*1650 3.3 / 5.0 100*50 External configuration View picture Download EPD Controller
HULK USB SPI 600*448 5.0 110*65 For demonstration goals View picture Download EPD Controller
ICE USB TTL 1600*1200 5.0 For demonstration goals View picture Download EPD Controller
SILK USB SPI 600*360 5.0 110*78 For demonstration goals View picture Download EPD Controller
V5 USB, Ethernet, Wi-Fi 4xTTL 2880*2160 12.0 / 5.0 For demonstration goals View picture Download EPD Controller

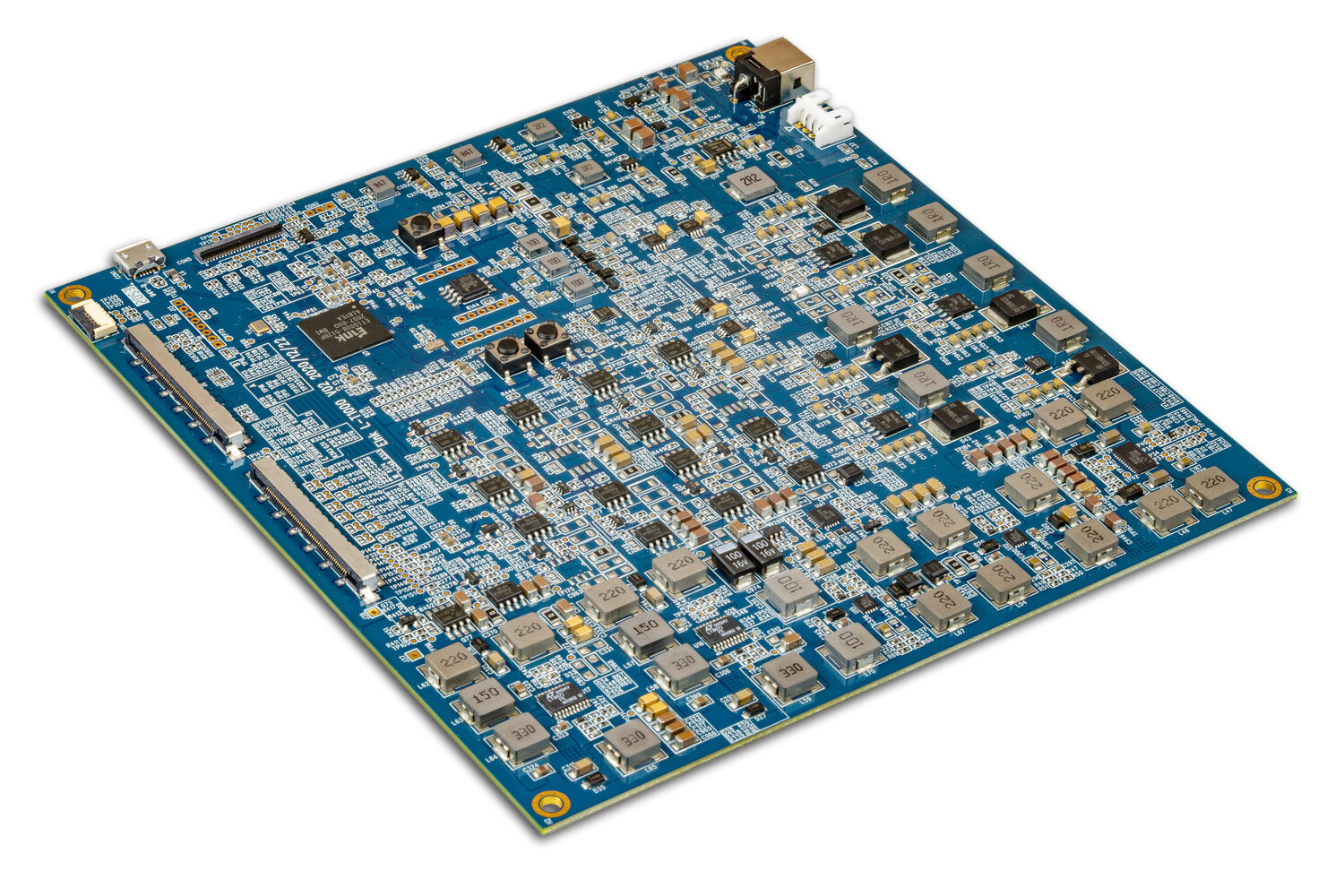

T1000 USB TTL
1600*1200

5.0

100*50

Full color support, availble in combination with Raspberry Pi

View picture
Download
EPD Controller
