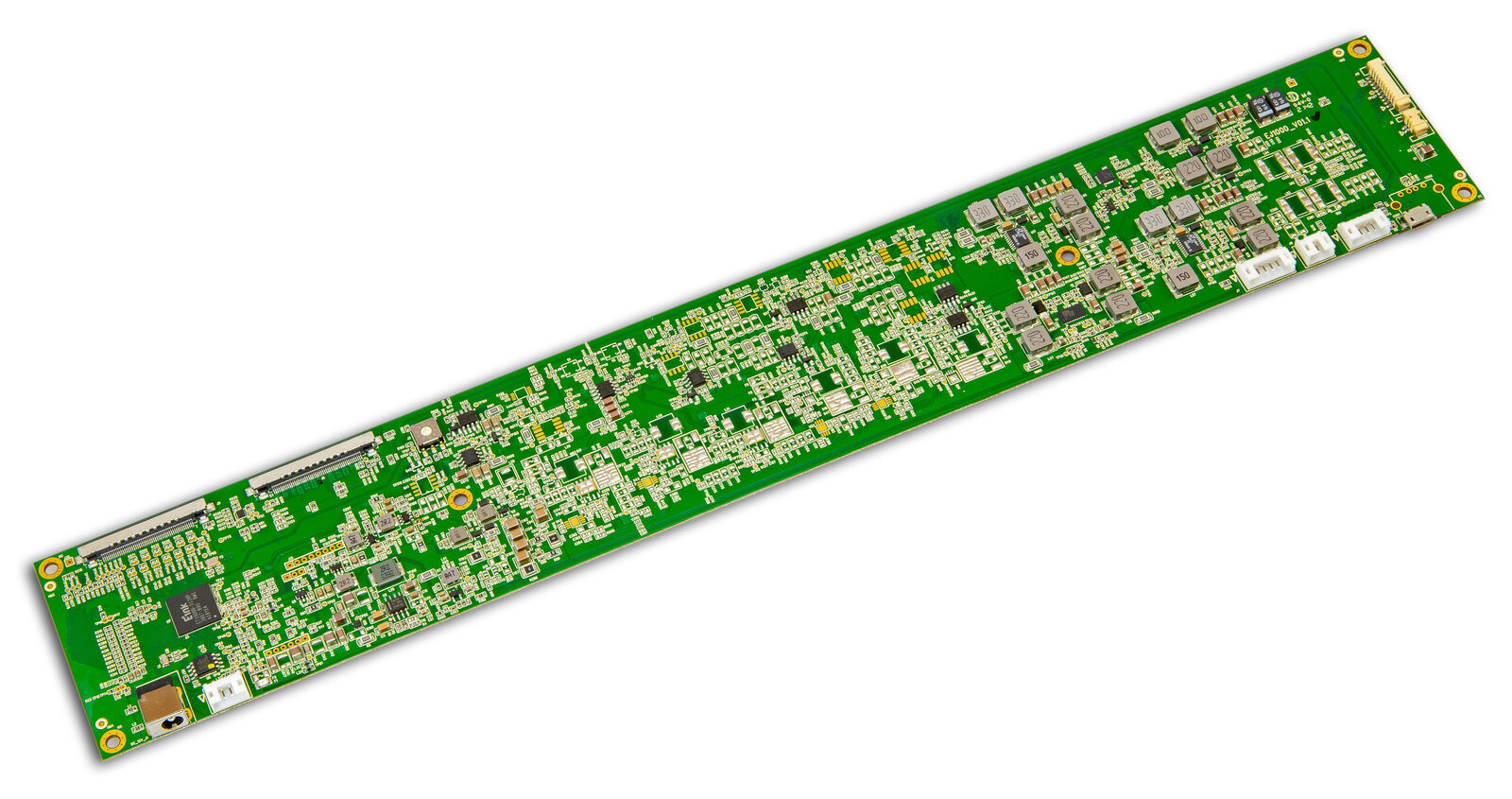

EJ1000 is designed for driving Electrical Paper Display with the following features:
Support EPD panel modules: EINK ED280TT1 , ED253TT1 , ED253TT3
Adjustable VCOM Driver for Accurate Panel Backplane Biasing 0 to -5.11 V
Working Temperature: -15 ~ 70°C
Tabs
Specification
Resolution, max.
3840 * 1080
Output Signal
Mini-LVDS
Outline Dimensions
400 * 65 mm
Driving Voltage
12 V
Update Possibilities
USB
Power
13.3 W
Power, sleep mode
1.2 W
Total Weight
140 g
Grey Level Support
16
Tabs
Downloads
Specification
Download
Application Note for Setting Up a Raspberry Pi
Download
C++ Demo Code for Raspberry Pi (ejump_rp_usb)
Download
C++ Demo Code for Raspberry Pi (ejump_rp_vcom)
Download
C++ Demo Code for Raspberry Pi (ejump_rp_waveform)
Download
libtcon-dev_usb.so.2.0.4
Download
C++ API Guideline by eJump
Download
Information about E-Paper Waveform Modes
Download
EJ8951E-4
