EJ8951E-1

EPD Controller

BECK Elektronik Bauelemente

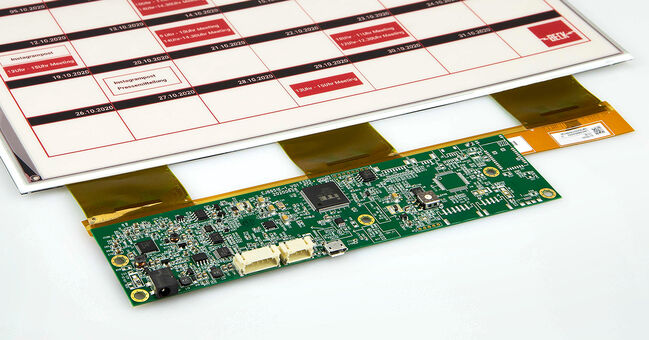

EJ8951E-1 is designed for driving Electrical Paper Displays (EPDs) in grey colors, such as ED133UT2, ES133UT2, ED133UT3ED113TC2 and with three colors support: Red-Black-White for EL133US1 and EL097TR2.

There are tow ways to drive Electrical Paper with eJump boards. One way is based on Raspberry Pi, second  way is based on Windows with Zadig USB driver.

Download Demo Code for Raspberry, then follow Applications notes for Programming Raspberry Pi and setup “e-paper type” and “id” in main.cpp. The command line in Raspberry Pi is then very easy:  “sudo ./main pictures playlist.txt”.

Tabs

Specification

Resolution, max. 1600 * 1200
Output Signal TTL
Outline Dimensions 180 * 45 mm
Driving Voltage 5.0 V
Update Possibilities USB
Power 5.0 W
Power, sleep mode 0.8 W
Total Thickness 8 mm
Total Weight 25 g
Grey Level Support 16, R / B / W

Tabs

Downloads

Product Specification Download
Brief technical specification Download
Application Note for Setting Up a Raspberry Pi Download
C++ Demo Code for Raspberry Pi (ejump_rp_usb) Download
C++ Demo Code for Raspberry Pi (ejump_rp_vcom) Download
C++ Demo Code for Raspberry Pi (ejump_rp_waveform) Download
libtcon-dev_usb.so.2.0.4 Download
C++ API Guideline by eJump Download
Information about E-Paper Waveform Modes Download
