AC253TT1

Active Matrix E-Paper Display

E-ink

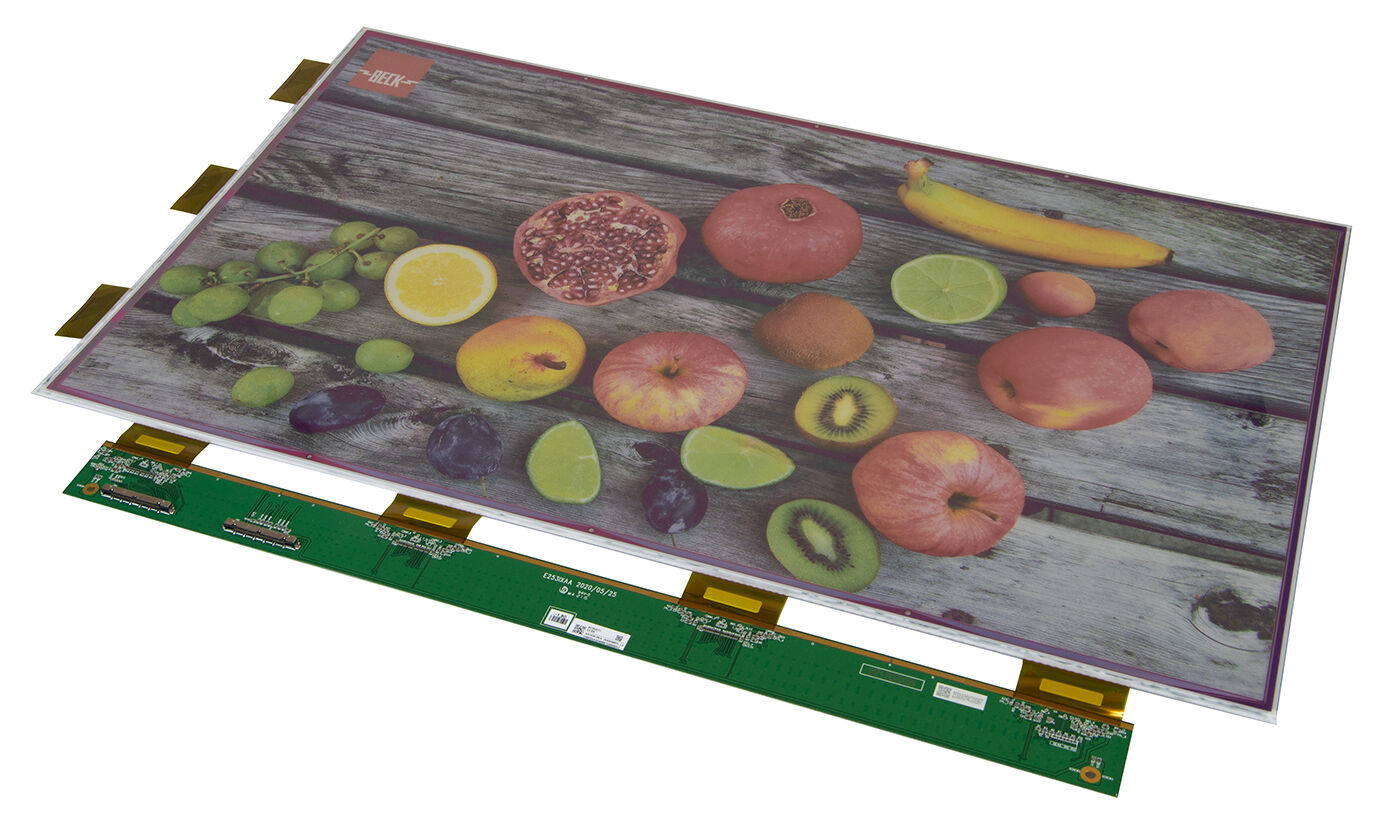

AC253TT1 is a reflective electrophoretic E Ink® Advanced Color ePaper (ACeP® E Ink Gallery) technology display module based on active matrix TFT substrate.
The diagonal length of active area is 25.3” and contains 3200 × 1800 pixels. The display is capable to display full color images depending on the display controller and the associated lookup table used. The recommended operating temperature should be kept from +15°C to +35°C.

Tabs

Specification

Size 25.3 inch
Resolution (HxV) 3200 * 1800
Active Area 560.00 * 315.00 mm
Outline Dimensions 576.50 * 333.00 mm
Dpi 150
E Ink Film E Ink Gallery™ 4000
Refresh Time 25 s
Backplane Glass
Total Thickness 0.953 mm
Total Weight 426 g
Number of colors Full Color
Interface Mini-LVDS
Front Light  -
Surface Treatment Anti-glare
Operational temperature range +15°C ~ +35°C
New nomenclature AA1020-PEA

Tabs

Driving kits

Product Image Update Possibility Output Signal Resolution, max. Power Supply Outline Remark
EJ1000C USB Mini-LVDS 3200 * 1800 12 V 400 * 65 mm API 2.0
L-T1000 USB Mini-LVDS 8192 * 8192 12 V 160 * 150 mm External temperature sensor’s board

Tabs

Downloads

Brief technical specification Download
AC253TT1 – 25.3 inch EPD reflective electrophoretic with 3200×1800 pixels
