This range of single-phase filters of new FMAB NEO series combines a compact design with a high level of performance. The use of large X capacitors permits high symmetrical attenuation.
Symmetrical interferences can occur because of phase-angle controllers or semi-conductor relays, for example. When the power semiconductors switch, they generate interference currents between the phase conductor and the neutral conductor. These are known as symmetrical interferences, which the X capacitors positioned between these conductors can help reduce effectively.

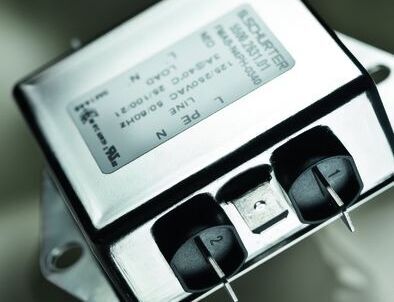

The filters in the new series have a shiny steel housing with a closed filter base.
The filter is thus effectively and completely shielded, no matter how it is mounted.
The filter series is available with plug-in connections or thread bolts (30 A version). A version with wire connection is also available. They have a metal flange for easy screw-on mounting on the housing.
Technical Data:
- 250 VAC single-phase block filter
- Single-stage filter with large X-capacitors
- Excellent symmetrical attenuation
- Filter available ins standard or medical M5 / M80 version
- Rated currents: 1, 3, 4, 6, 8, 10, 12, 16, 20, 30A (ENEC / UL / CSA)
at 40°C - Chassis: Screw-on mounting, from top
- Quick connect terminals 1 – 20A, nut and bolt 30A, optional wire leads
Application:
- Professional coffee machines
- Water heating equipment
- Industrial applications
- Medical equipment
- Household appliances
- Datacom equipment
