ED060XH7 is a reflective electrophoretic E Ink technology display module based on active matrix TFT substrate featuring capacitive touch panel with front light.
It has 6” active area with 758 × 1024 pixels, the display is capable to display images at 2-16 gray levels (1-4 bits) depending on the display controller and the associated waveform file it used.
Tabs
Specification
| Size | 6.0 inch |
|---|---|
| Resolution (HxV) | 1024 * 758 |
| Active Area | 90.60 * 122.40 mm |
| Outline Dimensions | 101.80 * 138.40 mm |
| Dpi | 212 |
| E Ink Film | Carta 1.0 |
| Refresh Time | 450 ms |
| Backplane | Glass |
| Total Thickness | 2.06 mm |
| Total Weight | 47.6 g |
| Grey Level | 16 |
| Front Light | 200 cd/m2 |
| Touch | Capacitive |
| Surface Treatment | Anti-glare |

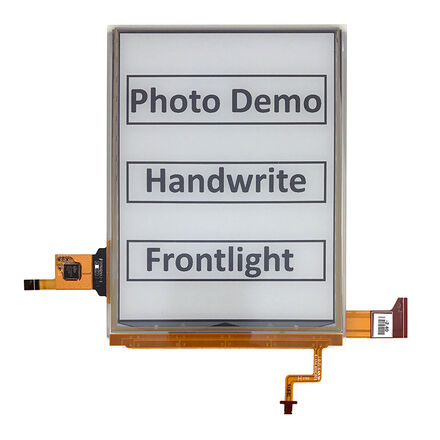

![[Translate to English:] EPD Display reflective electrophoretic ED060XH7 E Ink](/fileadmin/user_upload/Produkte/BECK_Elektronik/Displays/Downloads/EPD/E-Ink/ED060XH7.jpg "[Translate to English:] EPD Display reflective electrophoretic ED060XH7")
