SMD Fuse with the new VDE and UL Approvals

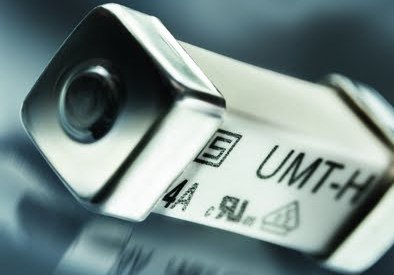

SCHURTER's Universal Modular fuse, UMT-H with 1500 A breaking capacity at rated voltages of 277 VAC / 250 VDC, now has VDE approval in addition to UL approval.

This time-lag fuse provides overcurrent and short circuit protection in various industrial control applications, including intrinsically safe applications.

The "intrinsic safety" method is one of the most common techniques used for achieving safety protection with lower voltage or power equipment. This method restricts the available electrical and thermal energy in a system so that ignition of a hazardous atmosphere (such as explosive gas, dust, or electrical arcing) cannot occur.

The UMT-H's high breaking capacity of 1500 A, plus the >10 mm spacing between end caps, combined with the ability to be impermeable to conformal coating makes the fuse suitable for use in such intrinsically safe applications.

The UMT-H fuse is available in a total of 19 rated currents between 160 mA and 10 A at voltages up to 277 VAC and 250 VDC. The UMT-H measures at 5.3 × 16 mm, which is a smaller alternative to the classic cylindrically-shaped cartridge fuses (e.g. 5 × 20 mm).

The smaller footprint saves valuable board space, allowing for further downsizing of equipment. With its square design, the UMT-H is also suited for more cost-effective, automated assembly.

Features:

  • High breaking capacity (H) of 1500 A at rated voltage
  • High rated voltages up to 277 VAC / 250 VDC
  • 19 rated currents from 160 mA to 10 A
  • Time-lag (T) characteristics
  • Optimal suited for automated assembling because of square design
  • Suitable for intrinsically safe applications
  • Certification according to IEC 60127-7/1, UL 248-14, CSA C22.2 no. 248.14

Applications:

  • Primary protection on SMD PCBs
  • Industrial electronics
  • Sensors
  • Power supplies
  • Electromobility
  • Medical
  • Telecommunication
  • Equipment subjected to explosion proof testing
  • Lighting and other appliances connected to single phase 277 VAC in US market
Fuse SMD UMT-H Schurter
