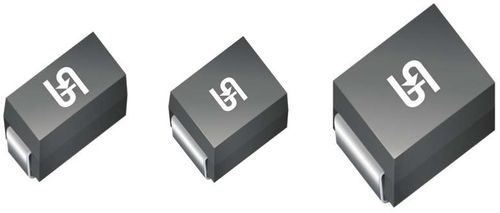

Higher power surface mount transient voltage suppressor (TVS) rectifiers are now available

TVS in the SMA (DO-214AC) package were previously available for 400W (P4SMAxx, SMAJxx), and are now also available for 600W (SMA6Jxx).

For the SMB (DO-214AA) package, the power range from 600 W (P6SMBxx, SMBJxx) to 1.000W (1KSMBxx) is also now available.

The range for SMC (DO-214AB) package has been extended to 3kW (SMDJxx) from previous 1kW range (1.5SMCxx, SMCJxx).

Most series are available as unidirectional and bidirectional versions and all are available as AEC-Q101 qualified parts for automotive applications.

Features:

  • Low profile package
  • TJ Max 175°C
  • Ideal for automated placement
  • Glass passivated junction
  • Built-in strain relief
  • Excellent clamping capability
  • Fast response time
  • AEC-Q101 qualified
  • Halogen-free
  • Compliant to RoHS

SMA6J 600W Series / Applications:

  • Telecom
  • Automotive
  • Mobile consumer electronics
  • Power supplies
  • Electronic lighting
  • Computer

1KSMB 1000W, 10V – 100V Series / Applications:

  • for Bipolar Applications

SMDJ 3000W, 10V – 100V Series / Applications:

  • Transmission line protection
  • Data line protection
  • Telecom
  • Automotive
  • Industrial equipment
  • Mobile consumer electronics
  • Power supplies
  • Electronic lighting
  • Computer
Rectifier voltage suppressor
