2.2 A, 400 V – 1000 V Surface Mount Bridge Rectifier

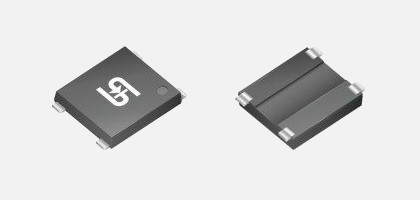

Taiwan Semiconductor is introducing bridge rectifiers in a small, low profile (height 1.5 mm) surface mount YBS package.

The first series of parts is YBS220xG with VRRM range from 400 V to 1000 V, and IF(AV) = 2.2 A. The TSC YBS package is compatible with Liteon MSBL and MCC TBS packages. The YBS series of bridge rectifiers offers performance suitable for power supply designs in the =65 W range where space and case height is a concern.

Features:

  • Low body height, less than 1.5 mm
  • High surge current capability up to 90A
  • Glass passivated die provides high reliability
  • Ideal for automated placement
  • Halogen free mold compound
  • Moisture sensitivity level 1

Anwendungen:

  • Switching mode power supply (SMPS)
  • Adapters (<45W)
  • TV Power
  • Monitor Power
