Elna Elektrolytkondensatoren
Hybrid / Polymer / SMD / THT / Snap-In / Dynacaps
ELNA Co. LTD wurde im Jahr 1937 in Japan gegründet und hat sich seitdem zu einem Weltweit anerkannten Hersteller von Aluminium Elektrolyt Kondensatoren entwickelt.
ELNA’s High-Quality Produkte umfasst Solid Polymer Kondensatoren, Polymer-Elektrolyt-Kondensator (Hybrid-Elko), Aluminium Elektrolyt Kondensator SMD und THT, Dynacaps (EDLC) und Leistungskondensatoren bekannt als Snap-In.
Die Produktionsstätten der Firma ELNA stehen in Japan, Thailand und Malaysia. Alle Standorte sind Zertifiziert nach ISO9001, ISO14001 und IATF16949.
Seit 1995 besteht eine Partnerschaft zwischen unseren beiden Häusern Beck und ELNA. Beck hat Exklusive Verkaufsrechte in Deutschland und Österreich für die Kondensatoren von ELNA.
Tabs
Hybrid SMD / THT
| Series | Rated Voltage Range (Vdc) | Capacitance Range (uF) | Cap. Tole. | ESR (Ω), max. | Rated Ripple (mArms), max. | Temp. Range (°C) | Endurance (hr) | Design | Feature |  Product Specification |
Brief Technical Specification |
|---|---|---|---|---|---|---|---|---|---|---|---|
| HV | 6.3~100 | 10~820 | ± 20 % | 0.120 | 3500 | -55~+105 | 10000 | Vertical Chip (SMD) | Download | Download | |
| HT | 6.3~100 | 15~820 | ± 20 % | 0.045 | 3500 | -55~+105 | 10000 | Vertical Chip (SMD) | For Vibration | Download | Download |
| HVK | 6.3~100 | 10~820 | ± 20 % | 0.120 | 3000 | -55~+125 | 4000 | Vertical Chip (SMD) | Download | Download | |
| HTK | 6.3~100 | 15~820 | ± 20 % | 0.045 | 3000 | -55~+125 | 4000 | Vertical Chip (SMD) | For Vibration | Download | Download |
| HVX | 16~50 | 68~470 | ± 20 % | 0.030 | 2100 | -55~+135 | 4000 | Vertical Chip (SMD) | Download | Download | |
| HTX | 16~50 | 68~470 | ± 20 % | 0.030 | 2100 | -55~+135 | 4000 | Vertical Chip (SMD) | For Vibration | Download | Download |
| HR | 25~100 | 15~560 | ± 20 % | 0.045 | 3500 | -55~+105 | 10000 | Radial lead type | Download | Download | |
| HRK | 25~100 | 15~560 | ± 20 % | 0.045 | 3000 | -55~+125 | 6000 | Radial lead type | Download | Download |
Main Features:
- SMD Capacitor with conductive polymer hybrid electrolyte
- Vertical Chip
- RoHS compliance
- AEC-Q200 version
Tabs
Polymer SMD / THT
| Series | Rated Voltage Range (Vdc) | Capacitance Range (uF) | Cap. Tole. | ESR (Ω), max. | Rated Ripple (mArms), max. | Temp. Range (°C) | Endurance (hr) | Design | |
|---|---|---|---|---|---|---|---|---|---|
| PVG | 2.5~6.3 | 120~1200 | ± 20 % | 0.006~0.008 | 1100 | -55~+105 | 2000 | SMD | Download |
| PVX | 2.5~10.0 | 100~1200 | ± 20 % | 0.015 | 4600 | -55~+105 | 2000 | SMD | Download |
| PVM | 2.5~16 | 33~1200 | ± 20 % | 0.035 | 4450 | -55~+105 | 2000 | SMD | Download |
| PVK | 2.5~16.0 | 33~1000 | ± 20 % | 0.037 | 1100 | -55~+125 | 1000 | SMD | Download |
| PRM | 2.5~10.0 | 220~1500 | ± 20 % | 0.010 | 5500 | -55~+105 | 2000 | THT | Download |
Main Features:
- SMD Capacitor with conductive polymer solid electrolyte
- RoHS compliance
- AEC-Q200 version
Tabs
Alu Elko SMD
| Series | Rated Voltage Range (Vdc) | Capacitance Range (uF) | Cap. Tole. | ESR (Ω), max. | Rated Ripple (mArms), max. | Temp. Range (°C) | Endurance (hr) | Design | Feature | |
|---|---|---|---|---|---|---|---|---|---|---|
| RV5 | 4~100 | 1~2200 | ± 20 % | 458 | -40~+85 °C | 2000 | Vertical Chip | Download | ||
| RV4 | 6.3~50 | 1~100 | ± 20 % | 199.000 | 76 | -40~+85 °C | 2000 | Vertical Chip | Download | |
| RVB | 6.3~50 | 1~47 | ± 20 % | 332.000 | 55 | -40~+85 °C | 2000 | Vertical Chip | Download | |
| RVS | 6.3~50 | 1~1500 | ± 20 % | 199.000 | 310 | -55~+105 | 1000 | Vertical Chip | Download | |
| RVL | 6.3~50 | 1~100 | ± 20 % | 232.000 | 99 | -55~+105 | 2000 | Vertical Chip | Download | |
| RVJ | 6.3~100 | ± 20 % | 747 | -55~+105 | 2000/ 5000 | Vertical Chip | Download | |||
| RVR | 4~50 | 1~1500 | ± 20 % | 550 | -40~+105 | 2000 | Vertical Chip | Download | ||

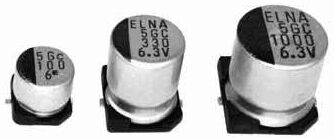

| RVC | 6.3~50 | 1~1000 | ± 20 % | 340 | -40~+105 | 3000 / 5000 | Vertical Chip | Download | ||
| RZH | 6.3~35 | 22~1000 | ± 20 % | 1.100 | 850 | -55~+105 | 5000/ 7000 | Vertical Chip | Download | |
| RMH | 6.3~35 | 22~1000 | ± 20 % | 1.100 | 850 | -55~+105 | 5000/ 7000 | Vertical Chip | For Vibration | Download |
| RVZ | 6.3~35 | 4.7~2700 | ± 20 % | 3.200 | 1100 | -55~+105 | 1000/ 2000/ 5000 | Vertical Chip | Download | |
| RVD | 6.3~100 | 4.7~2200 | ± 20 % | 3.000 | 1160 | -55~+105 | 2000 / 5000 | Vertical Chip | Download | |
| RVV | 6.3~50 | 33~1500 | ± 20 % | 0.260 | 1190 | -55~+105 | 2000 | Vertical Chip | Download | |
| RTV | 6.3~50 | 33~1500 | ± 20 % | 0.260 | 1190 | -55~+105 | 2000 | Vertical Chip | For Vibration | Download |
| RZD | 6.3~80 | 22~2200 | ± 20 % | 0.680 | 1190 | -55~+105 | 2000 | Vertical Chip | Download | |
| RMD | 6.3~80 | 22~2200 | ± 20 % | 0.680 | 1190 | -55~+105 | 2000 | Vertical Chip | For Vibration | Download |
| RVT | 10~100 | 4.7~1000 | ± 20 % | 3.200 | 750 | -40~+125 | 1000 / 2000 / 5000 | Vertical Chip | Download | |
| RZJ | 10~35 | 47~220 | ± 20 % | 3.500 | 550 | -40~+125 | 2000/ 3000 | Vertical Chip | Download | |
| RMJ | 10~35 | 47~220 | ± 20 % | 3.500 | 550 | -40~+125 | 2000/ 3000 | Vertical Chip | For Vibration | Download |
| RZF | 10~80 | 22~680 | ± 20 % | 3.200 | 440 | -40~+125 | 2000 / 4000 | Vertical Chip | Download | |
| RMF | 10~80 | 22~680 | ± 20 % | 3.200 | 440 | -40~+125 | 2000 / 4000 | Vertical Chip | For Vibration | Download |
| RZE | 35 | 47~100 | ± 20 % | 0.300 | 240 | -40~+125 | 2000 | Vertical Chip | Download | |
| RME | 35 | 47~100 | ± 20 % | 0.300 | 240 | -40~+125 | 2000 | Vertical Chip | For Vibration | Download |
| RVX | 25~35 | 22~330 | ± 20 % | 0.700 | 155 | -40~+135 | 1000 | Vertical Chip | Download | |
| RTX | 25~35 | 22~330 | ± 20 % | 0.700 | 155 | -40~+135 | 1000 | Vertical Chip | For Vibration | Download |
| RVE | 6.3~50 | 1~100 | ± 20 % | 52 | -40~+105 | 1000 | Vertical Chip | Download | ||
| RVI | 6.3~50 | 1~47 | ± 20 % | 55 | -40~+105 | 2000 | Vertical Chip | Download | ||
| RTZ | 6.3~35 | 33~8200 | ± 20 % | 0.440 | 1960 | -55~+105 | 1000/ 2000/ 5000 | Vertical Chip | For Vibration 30G guaranteed | Download |
| RTD | 6.3~100 | 10~8200 | ± 20 % | 1.300 | 2080 | -55~+105 | 2000/ 5000 | Vertical Chip | For Vibration 30G guaranteed | Download |
| RTT | 10~100 | 10~4700 | ± 20 % | 3.200 | 1550 | -40~+125 | 1000/ 2000/ 5000 | Vertical Chip | For Vibration 30G guaranteed | Download |
| RTQ | 10~35 | 33~470 | ± 20 % | 0.700 | 160 | -40~+150 | 1000 | Vertical Chip | For Vibration 30G guaranteed | Download |
| Series | Rated Voltage Range (Vdc) | Capacitance Range (uF) | Cap. Tole. | ESR (Ω), max. | Rated Ripple (mArms), max. | Temp. Range (°C) | Endurance (hr) | Design | Feature | |
Main Features:
- Vertical Chip (SMD)
- RoHS compliance
- AEC-Q200 version
Tabs
Alu Elko THT
| Series | Rated Voltage Range (Vdc) | Capacitance Range (uF) | Cap. Tole. | ESR (Ω), max. | Rated Ripple (mArms), max. | Temp. Range (°C) | Endurance (hr) | Design | Feature | |
|---|---|---|---|---|---|---|---|---|---|---|
| RC3 | 4~50 | 1~470 | ± 20 % | 180 | -40~+85 °C | 1000 | THT | Download | ||
| R3S | 6.3~50 | 1~100 | ± 20 % | 78 | -55~+105 | 1000 | THT | Download | ||
| RB3 | 6.3~50 | 0.33~47 | ± 20 % | 59 | -40~+85 °C | 1000 | THT | Download | ||
| RC2 | 4~100 | 1~330 | ± 20 % | 205 | -40~+85 °C | 1000 | THT | Download | ||
| R2S | 6.3~50 | 1~100 | ± 20 % | -55~+105 | 1000 | THT | Download | |||
| RB2 | 6.3~50 | 0.33~47 | ± 20 % | 73 | -40~+85 °C | 1000 | THT, Bipolar | Download | ||
| RE3 | 6.3~450 | 0.47~22000 | ± 20 % | 847.000 | 3340 | -40~+85 °C | 2000 | THT | Download | |
| R2B | 6.3~100 | 1~4700 | ± 20 % | 2280 | -40~+85 °C | 2000 | THT, Bipolar | Download | ||
| RJP | 6.3~50 | 1~6800 | ± 20 % | 1830 | -40~+105 | 2000 | THT, Bipolar | Download | ||
| RLB | 6.3~50 | 1~22000 | ± 20 % | 2200 | -40~+85 °C | 1000 | THT, Low Leakage Current | Download | ||
| RJ5 | 6.3~450 | 1~22000 | ± 20 % | 2420 | -55~+105 | 1000 / 2000 | THT | Download | ||
| RJ4 | 6.3~450 | 1~22000 | ± 20 % | 398.000 | 2390 | -55~+105 | 1000 / 2000 | THT | Download | |
| RJ3 | 6.3~400 | 1~15000 | ± 20 % | 166.000 | 2580 | -55~+105 | 1000 / 2000 | THT | Download | |
| RJB | 6.3~100 | 3.3~10000 | ± 20 % | 3010 | -55~+105 | 2000 / 3000 / 5000 | THT | Download | ||
| RJH | 6.3~100 | 1~15000 | ± 20 % | 3010 | -55~+105 | 2000 / 3000 / 5000 | THT | Download | ||
| RJF | 6.3~100 | 5.6~6800 | ± 20 % | 3630 | -40~+105 | 1000 / 2000 / 3000 / 5000 | THT | Download | ||
| RJM | 6.3~50 | 27~8200 | ± 20 % | 4120 | -40~+105 | 6000 / 8000 / 10000 | THT | Download | ||
| RJD | 6.3~100 | 10~18000 | ± 20 % | 1.900 | 5680 | -55~+105 | 2000 / 3000 / 5000 / 8000 | THT | Download | |
| RJE | 25~35 | 830~11000 | 0~+30 % | 0.174 | 4300 | -55~+105 | 5000 | THT | Download | |
| RJK | 25~35 | 2500~17000 | 0~+30 % | 0.033 | 4000 | -55~+105 | 5000 | THT | Download | |
| RHS | 160~450 | 2.2~1000 | ± 20 % | 2575 | -40~+105 | 4000 / 5000 | THT | Download | ||
| RHC | 160~450 | 3.3~1000 | ± 20 % | 5115 | -40~+105 | 5000/ 8000/ 10000 | THT | Download | ||
| RHD | 160~450 | 3.3~1000 | ± 20 % | 5115 | -40~+105 | 8000/ 10000/ 12000 | THT | Download | ||
| RKD | 10~100 | 100~8200 | ± 20 % | 0.153 | 5100 | -40~+125 | 2000 / 3000 / 5000 | THT | Download | |
| RKB | 10~100 | 220~6800 | ± 20 % | 0.131 | 4000 | -40~+135 | 2000 / 3000 | THT | Download | |
| RKC | 25~100 | 160~12000 | ± 20 % | 0.090 | 5660 | -40~+135 | 2000 / 3000 | THT | Download | |
| RQA | 10~63 | 220~4700 | ± 20 % | 1870 | -40~+150 | 1000 | THT | Download | ||

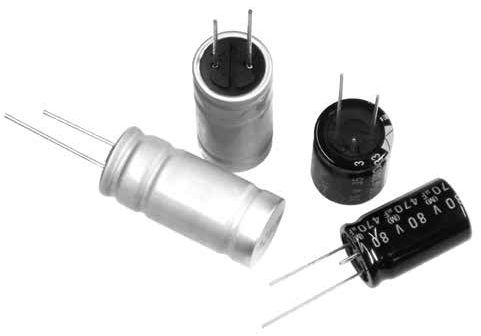

| RPK | 10~100 | 220~8200 | ± 20 % | 0.110 | 5100 | -40~+125 | 5000 | THT | For Vibration 30G | Download |
| RKE | 25~50 | 1200~8200 | ± 20 % | 0.048 | 4750 | -40~+125 | 5000 | THT | For Vibration 40G | Download |
| RKF | 25~100 | 180~10000 | ± 20 % | 0.079 | 5000 | -40~+135 | 2000/ 3000 | THT | For Vibration 40G | Download |
| RKG | 25~80 | 800~4700 | ± 20 % | 0.034 | 3700 | -40~+150 | 1000/ 2000 | THT | For Vibration 40G | Download |
| Series | Rated Voltage Range (Vdc) | Capacitance Range (uF) | Cap. Tole. | ESR (Ω), max. | Rated Ripple (mArms), max. | Temp. Range (°C) | Endurance (hr) | Design | Feature | |
Tabs
Snap In – Large Capacitance
| Series | Rated Voltage Range (Vdc) | Capacitance Range (uF) | Cap. Tole. | ESR (Ω), max. | Rated Ripple (mArms), max. | Temp. Range (°C) | Endurance (hr) | Design | |
|---|---|---|---|---|---|---|---|---|---|
| LA5 | 10~450 | 47~150000 | ± 20 % | 12500 | -40~+85 / -25~+85 | 2000 | Snap-In | Download | |
| LAH | 16~450 | 56~82000 | ± 20 % | 7230 | -25~+105 / -40~+105 | 2000 | Snap-In | Download | |
| LAT | 160~500 | 39~3900 | ± 20 % | 6180 | -25~+105 | 2000 | Snap-In | Download | |
| LAZ | 16~500 | 39~82000 | ± 20 % | 7230 | -25~+105 / -40~+105 | 3000 | Snap-In | Download | |
| LAX | 160~500 | 39~3900 | ± 20 % | 6390 | -25~+105 | 5000 | Snap-In | Download | |
| LJ6 | 200~500 | 390~3900 | ± 20 % | 7000 | -25~+105 | 5000 | Snap-In | Download | |
| LM | 250~400 | 45~440 | ± 10 % | 1.470 | 5600 | -25~+85 °C | 2000 | Snap-In | Download |
Main Features:
- Snap-in capacitor
- RoHS compliance
Tabs
Dynacaps
| Series | Rated Voltage Range (Vdc) | Capacitance Range (uF) | Cap. Tole. | ESR (Ω), max. | Rated Ripple (mArms), max. | Temp. Range (°C) | Endurance (hr) | Design | Feature | |
|---|---|---|---|---|---|---|---|---|---|---|

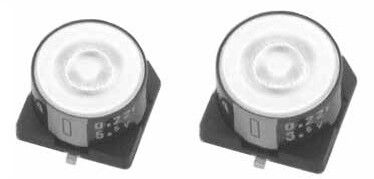

| DVN | 5.5 | 0.047~0.33 | -20~+80 % | -25~+70 °C | 1000 | SMD | Download | |||
| DVL | 5.5 | 0.047 ~0.22 | -20~+80 % | -40~+85 °C | 1000 | SMD | Download | |||
| DVS | 3.6 | 0.047 ~0.33 | -20~+80 % | -25~+85 °C | 2000 | SMD | Download | |||

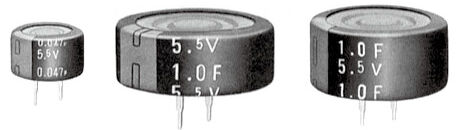

| DB | 5.5 | 0.047~1.50 | -20~+80 % | -25~+70 °C | 1000 | THT | Download | |||
| DBN | 5.5 | 0.047~1.50 | -20~+80 % | -25~+70 °C | 1000 | THT | Low Resistance | Download | ||
| DBJ | 5.5 | 0.047~1 | -20~+80 % | -10~+85 °C | 1000 | THT | Download | |||
| DBS | 3.6 | 0.047~1 | -20~+80 % | -25~+85 °C | 2000 | THT | Download | |||

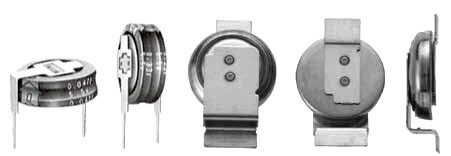

| DX | 5.5 | 0.047~1.50 | -20~+80 % | -25~+70 °C | 1000 | THT | Download | |||
| DXN | 5.5 | 0.047~1.50 | -20~+80 % | -25~+70 °C | 1000 | THT | Low Resistance | Download | ||
| DXJ | 5.5 | 0.047~1 | -20~+80 % | -10~+85 °C | 1000 | THT | Download | |||
| DXS | 3.6 | 0.047~1 | -20~+80 % | -25~+85 °C | 1000 | THT | Download | |||
| DH | 5.5 | 0.047~1 | -20~+80 % | -25~+85 °C | 1000 | THT | Download | |||
| DHL | 5.5 | 0.047~1 | -20~+80 % | -40~+85 °C | 1000 | THT | Download | |||
| DHC | 5.5 | 0.047~1 | -20~+80 % | -25~+85 °C | 3000 | THT | Download | |||
| DC / DCK-614, 621 | 2.5 / 3.3 | 0.20~0.40 | -20~+80 % | -25~+70 / -10~+60 °C | 1000 | Coin Cell | Download | |||
| DSK-414 | 3.3 | 0.07 | -20~+80 % | -10~+70 °C | 500 | Coin Cell | Download | |||
| DS / DSK-614, 621 | 2.5 / 3.3 | 0.20~0.33 | -20~+80 % | -25~+70 / -10~+60 °C | 1000 | Coin Cell | Download | |||

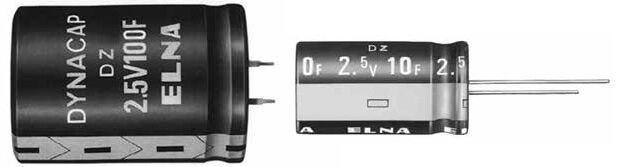

| DZ / DZH | 2.5 / 2.7 | 1~300 | -20~+80 % | -25~+70 / -25~+60 °C | 1000 / 2000 | THT | Download | |||
| DZN | 2.5 / 2.7 | 1~200 | -20~+80 % | -25~+70 °C | 1000 | THT | Download | |||
| DU | 2.7 | 1~50 | -20~+80 % | -40~+65 °C | 1000 | THT | Download | |||
| DUK | 2.5 / 3.0 | 1~50 | ± 20 % | -40~+65 °C / -40~+85°C | 1000 | THT | Download | |||
| DZP | 5 | 0.47.~4.70 | -20~+80 % | -25~+70 °C | 1000 | THT | Download | |||
| Series | Rated Voltage Range (Vdc) | Capacitance Range (uF) | Cap. Tole. | ESR (Ω), max. | Rated Ripple (mArms), max. | Temp. Range (°C) | Endurance (hr) | Design | Feature | |
Main Features:
- Design: SMD, THT, Button Cell
