TFT Controller

BECK Elektronik Bauelemente

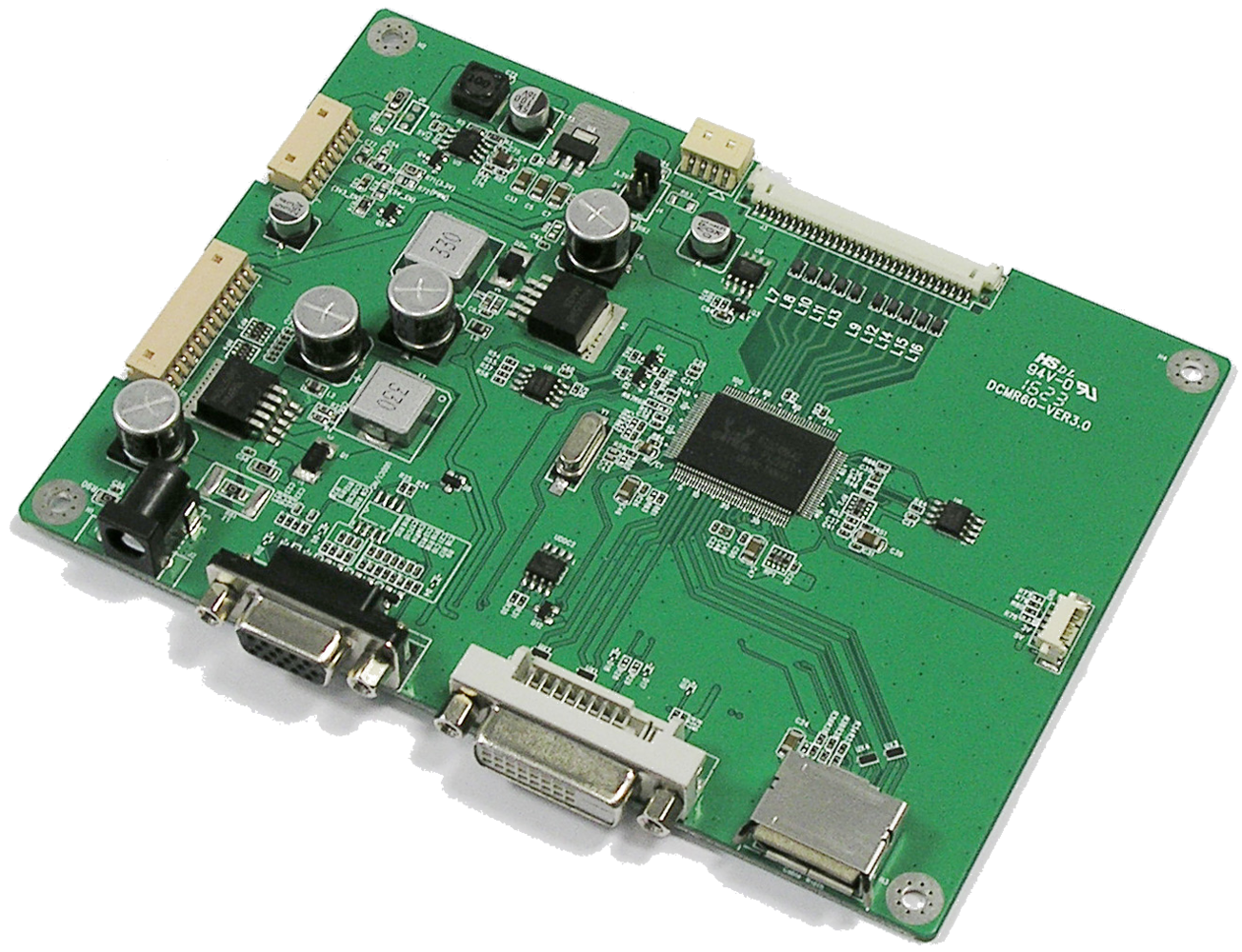

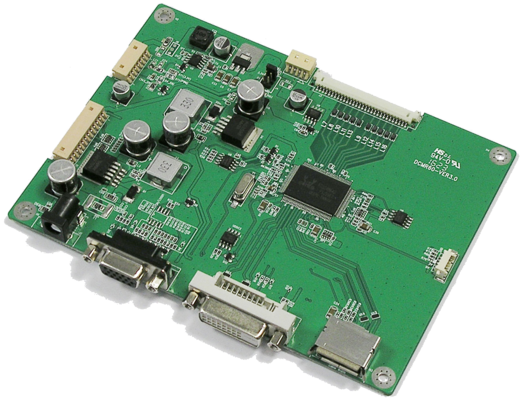

This DisplayPort, DVI and analog RBG to LVDS converter board accepts common video signals. Digital interfaces DisplayPort 1.2, DVI 1.0, HDMI 1.4a and all backward compatible signals are supported as well as analog RGB. It generates all necessary control signals and panel data to drive TFT LCDs with VDD level 3.3V, 5V or 12V.

This TFT controller board supports resolutions up to 1920x1200 (WUXGA) at a vertical refresh rate up to 60Hz. The user interface includes brightness, contrast adjustment, etc. by on-screen programming. For automatic backlight adjustment an ambient light sensor is supported.

Note: Successor model – DCMR-64



Input Interface

- Display Port 1.2 interface with HDCP

- DVI 1.0 interface with HDCP

- Analog RGB interface

Output Interface Dual-LVDS 24-bit
Max. Resolution 1920 * 1200 Pixels (WUXGA) @ 60Hz
Power Supply 12 / 24 V
Display Power Supply 3.3 / 5 / 12 V
Current consumption 72 mA
Dimensions [W × D × H] 150 * 110 * 16 mm

- ALS (ambient light sensor) support

- Spread-Spectrum DPLL

- Supports MCCS VCP codes via DDC/CI

- User-friendly OSD menu
