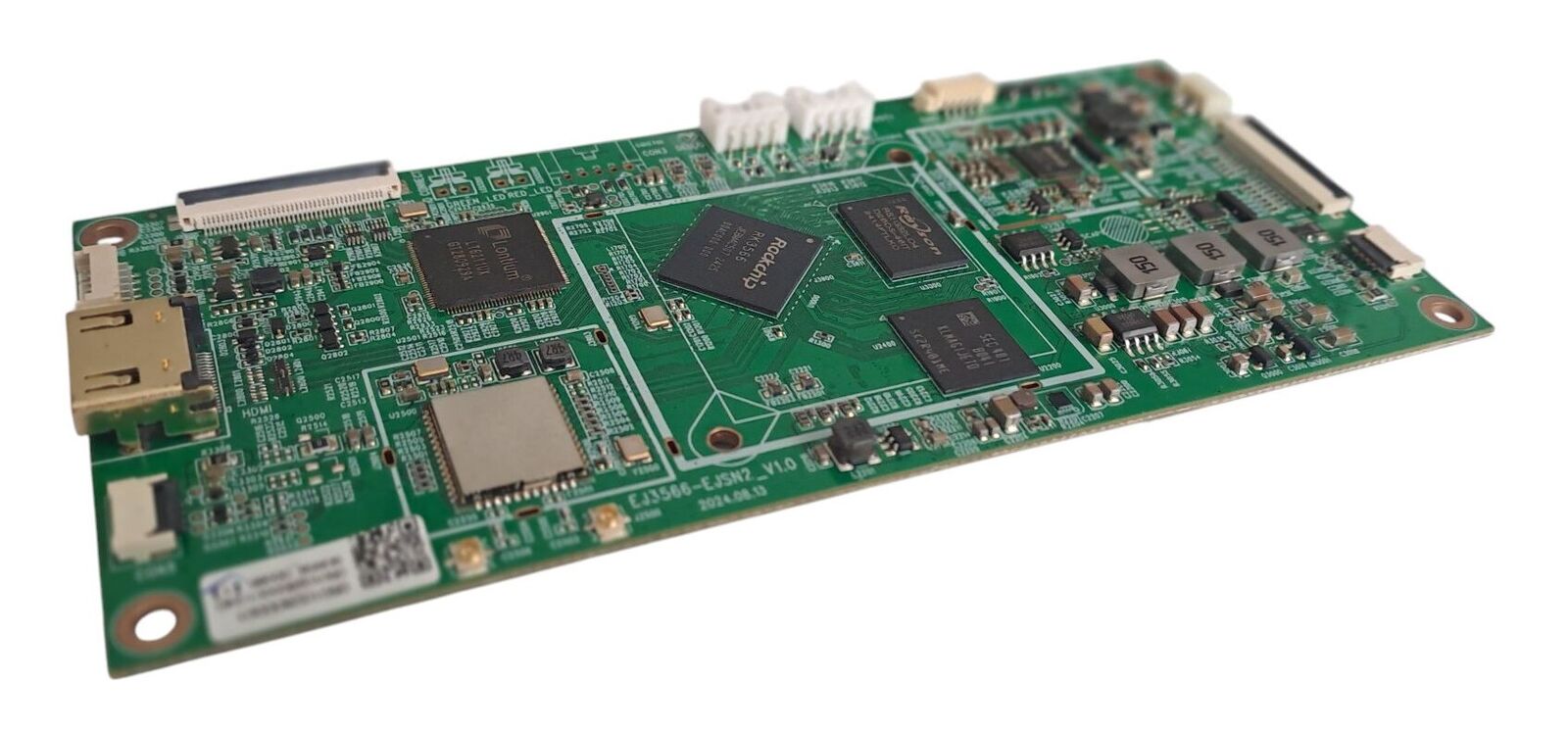

EJSN2

EPD Controller

EJSN2 is designed for driving color Electrical Paper Display with the following features:

  • Support full color EPD panel modules: EINK EL133UF1, EL315TW1
  • Rockchip RK3566 Quad-Core Cortex-A55
  • Supported OS: Android 12, Linux Debian 10
  • Working Temperature: -15~70°C

Tabs

Specification

Resolution, max. 2560 * 1440
Output Signal Quad SPI
Outline Dimensions 150 * 65 mm
Driving Voltage 12 V
Update Possibilities USB, WiFi, Bluetooth
Power tbd
Power, sleep mode tbd
Total Weight 65 g
Color Support up to 60.000

Tabs

Downloads

Specification Download
C++ API Guideline for Android Download
EJSN2 EPD Controller
