L-T1000
EPD Controller

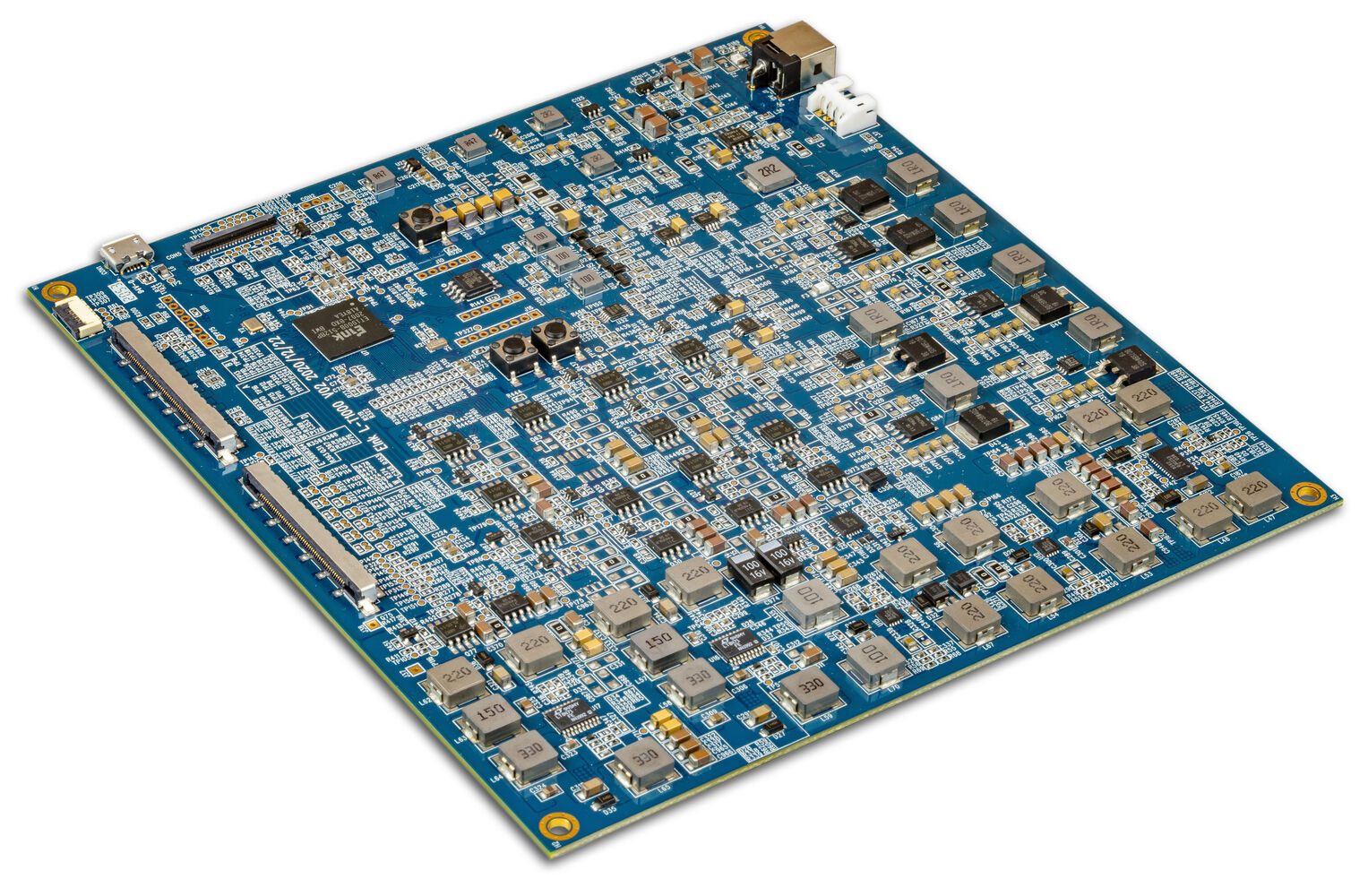

The driving board L-T1000 Luvia for the 25.3" ACeP display AC253TT1, Spectra 3100 display EL253TV1and monochrome displays ED253TT1, ED253TT3, ED280TT1allows E Ink clients to access the hardware and software of E Ink's display modules for evaluation.
- Drive 25.3” full color display (Operating temperature: +15°C ~ +35°C)
- Drive 25.3“ 4-color display (Operating temperature: 0°C ~ +40°C)
- Drive 28” & 25.3” monochrome display (Operating temperature: -15°C ~ +65°C)
- Tcon Storage Temperature: -25°C~ +70°C
Tabs
Specification
| Resolution, max. | 8192 * 8192 |
|---|---|
| Output Signal | Mini-LVDS |
| Outline Dimensions | 160 * 150 mm |
| Driving Voltage | 12 V |
| Update Possibilities | USB |
| Power | max. 28 W |
| Total Weight | 140 g |
| Grey Level Support | 16, Full Color, 4 Colors |
