ED253TT3
Active Matrix E-Paper Display

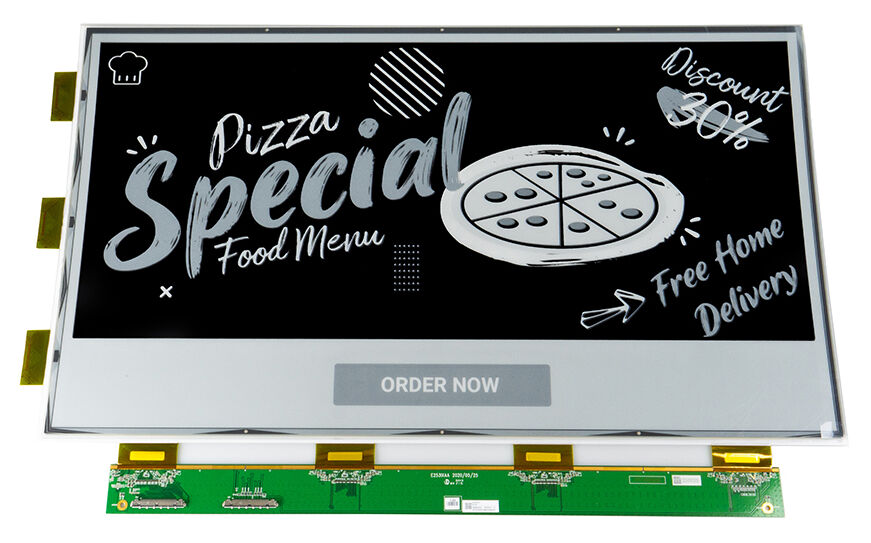

ED253TT3 is a reflective electrophoretic E Ink® technology display module based on active matrix TFT substrate.
The display has 25.3” active area with 3200 × 1800 pixels, the display is capable to display images at 2-16 gray levels (1-4 bits) depending on the display controller and the associated waveform file. The operating is possible in wide temperature range using the black and white mode. It can be successfully implemented in advertisement signage and retail signage.
Tabs
Specification
| Size | 25.3 inch |
|---|---|
| Resolution (HxV) | 3200 * 1800 |
| Active Area | 560.0 * 315.0 mm |
| Outline Dimensions | 576.5 * 333.0 mm |
| Dpi | 144 |
| Aspect Ratio | 16 : 9 |
| E Ink Film | Carta 1.2 |
| Grey Level | -15~0°C, +50~65°C: black & white / 0~50°C: 16 gray level |
Tabs
Driving kits
| Product | Image Update Possibility | Output Signal | Resolution, max. | Power Supply | Outline | Remark |
|---|---|---|---|---|---|---|
| EJ2000 | USB, SPI | Mini-LVDS | 3840*1080 | 12V | 400*65mm | Successor of EJ1000 |
| L-T1000 | USB | Mini-LVDS | 8192*8192 | 12V | 160*150mm | External temperature sensor’s board |
