ED280TT1
Active Matrix E-Paper Display

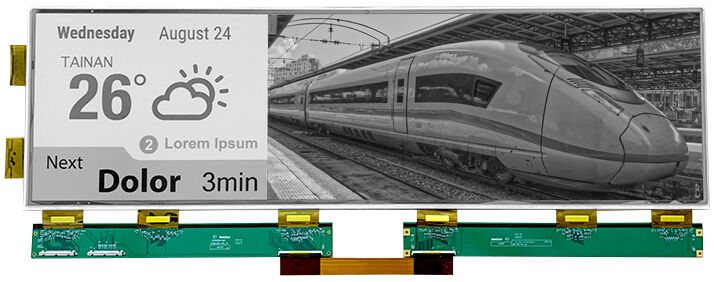

ED280TT1 is a reflective electrophoretic E Ink® technology display module based on active matrix TFT substrate.
It has 28” active area with 3840 × 1080 pixels, the display is capable to display images at 2-16 gray levels (1-4 bits) depending on the display controller and the associated waveform file.
Tabs
Specification
| Size | 28 inch |
|---|---|
| Resolution (HxV) | 3840 * 1080 |
| Active Area | 683.52 * 192.24 mm |
| Outline Dimensions | 698.6 * 209.3 mm |
| Dpi | 143 |
| Aspect Ratio | 32 : 9 |
| E Ink Film | Carta 1.2 |
| Refresh Time | tbd |
| Backplane | Glass |
| Total Thickness | tbd |
| Total Weight | tbd |
| Grey Level | 16 |
| Front Light | - |
| Surface Treatment | Hard Coat |
Tabs
Driving kits
| Product | Image Update Possibility | Output Signal | Resolution, max. | Power Supply | Outline | Remark |
|---|---|---|---|---|---|---|
| EJ2000 | USB, SPI | Mini-LVDS | 3840*1080 | 12V | 400*65mm | Successor of EJ1000 |
| L-T1000 | USB | Mini-LVDS | 8192*8192 | 12V | 160*150mm | External temperature sensor’s board |
