ED253TT2

Active Matrix E-Paper Display

E-ink

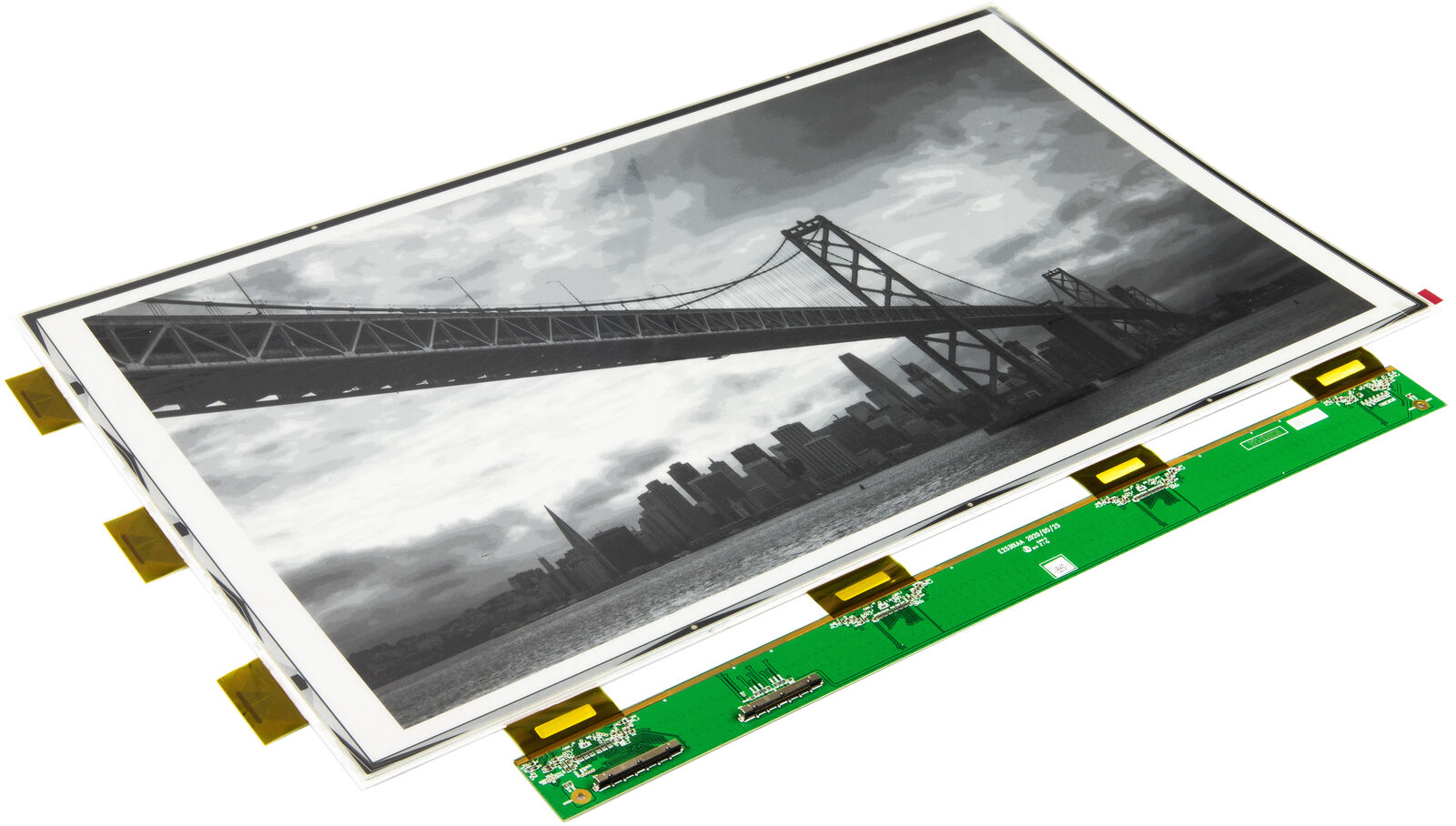

ED253TT2 is a reflective electrophoretic E Ink® technology display module based on active matrix TFT substrate.
The display has 25.3” active area with 3200 × 1800 pixels, the display is capable to display images at 2-16 gray levels (1-4 bits) depending on the display controller and the associated waveform file. It can be successfully implemented in advertisement signage and retail signage.

Tabs

Specification

Size 25.3 inch
Resolution (HxV) 3200 * 1800
Active Area 560.0 * 315.0 mm
Outline Dimensions 576.5 * 333.0 mm
Dpi 144
Aspect Ratio 16 : 9
E Ink Film Carta 1.2
Grey Level 16 gray level

Tabs

Driving kits

Product Image Update Possibility Output Signal Resolution, max. Power Supply Outline Remark
EJ2000 USB, SPI Mini-LVDS 3840*1080 12V 400*65mm Successor of EJ1000
L-T1000 USB Mini-LVDS 8192*8192 12V 160*150mm External temperature sensor’s board

Tabs

Downloads

Brief technical specification Download
ED253TT2 – 25.3 inch EPD monochrom with 3200×1800 pixels and 2-16 gray levels (1-4 bits)
