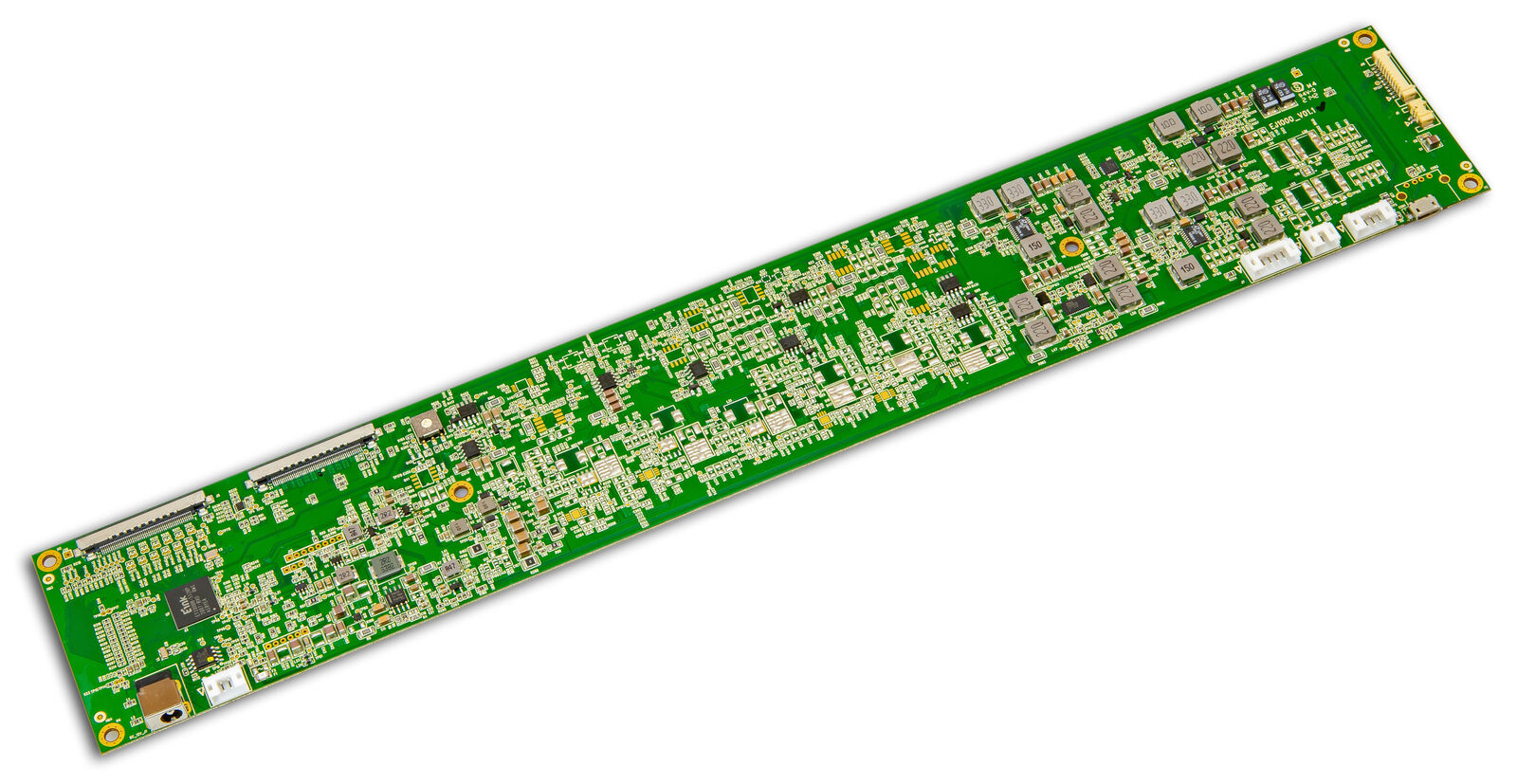

EJ1000

EPD Controller

BECK Elektronik Bauelemente

EJ1000 is designed for driving Electrical Paper Display with the following features:

  • Support EPD panel modules: EINK ED280TT1, ED253TT1
  • Adjustable VCOM Driver for Accurate Panel Backplane Biasing 0 to -5.11 V
  • Working Temperature: -15 ~ 70°C

Tabs

Specification

Resolution, max. 3840 * 1080
Output Signal Mini-LVDS
Outline Dimensions 400 * 65 mm
Driving Voltage 12 V
Update Possibilities USB
Power 13.3 W
Power, sleep mode 1.2 W
Total Weight 140 g
Grey Level Support 16

Tabs

Downloads

Specification Download
Application Note for Setting Up a Raspberry Pi Download
C++ Demo Code for Raspberry Pi (ejump_rp_usb) Download
C++ Demo Code for Raspberry Pi (ejump_rp_vcom) Download
C++ Demo Code for Raspberry Pi (ejump_rp_waveform) Download
C++ API Guideline by eJump Download
Information about E-Paper Waveform Modes Download
