TFT Controller

BECK Elektronik Bauelemente

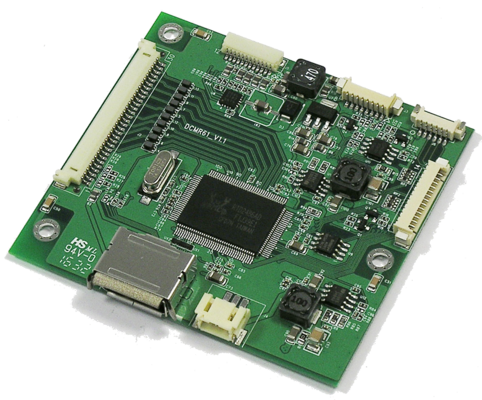

This DisplayPort to LVDS converter board accepts standard DisplayPort 1.2 and all backward compatible signals. It generates all necessary control signals and panel data to drive TFT LCDs with VDD level 3.3V or 5V.

This TFT controller board supports resolutions up to 1920 × 1200 (WUXGA) at a vertical refresh rate up to 60Hz. The user interface includes brightness, contrast adjustment, etc. by on-screen programming. Some OSD functions can be managed via I²C interface.

Note: Successor model – BTC-mini



Input Interface DisplayPort 1.2 interface with HDCP
Output Interface Dual-LVDS 24-bit
Max. Resolution 1920 × 1200 Pixels (WUXGA) @ 60Hz
Power Supply 12 V
Display Power Supply 3.3 / 5 V
Current consumption 96 mA
Dimensions [W × D × H] 80 * 74 * 9 mm

- ALS (ambient light sensor) support

- Integrated LED-driver

- I2S 8-channel support

- Spread-Spectrum DPLL

- User-friendly OSD menu



Specification Download
