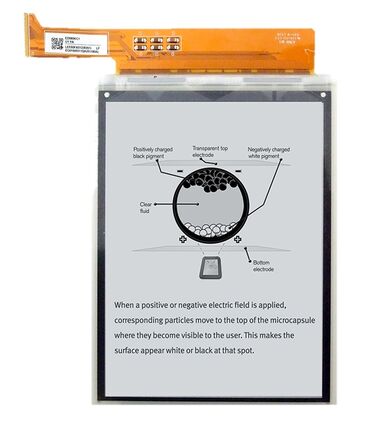

ED060KC1
Active Matrix E-Paper Display
ED060KC1 is a reflective electrophoretic E Ink technology display module based on active matrix TFT substrate.
It has 6" active area with 1072 × 1448 pixels, and the display is capable to display images at 2-16 gray levels (1-4 bit) depending on the display controller and the associated waveform file it used.
Tabs
Specification
Size | 6.0 inch |
---|---|
Resolution (HxV) | 1072 * 1448 |
Active Area | 90.60 * 122.40 mm |
Outline Dimensions | 101.80 * 138.40 mm |
Dpi | 300 |
E Ink Film | Carta 1.2 |
Refresh Time | 450 ms |
Backplane | Glass |
Total Thickness | 1.01 mm |
Total Weight | 30 g |
Grey Level | 16 |
Front Light | - |
Surface Treatment | Anti-glare |
Tabs
Driving kits
Product | Image Update Possibility | Output Signal | Resolution, max. | Power Supply | Outline | Remark |
---|---|---|---|---|---|---|
EPD driver | SD card, USB, SPI | TTL | 2200 * 1650 |
3.3 V / 5 V | 100 * 50 | External configuration, FPC adapter |
