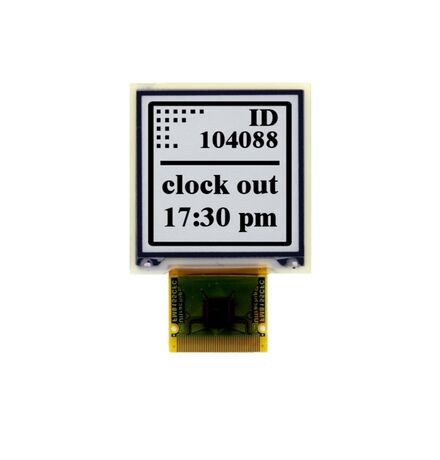

ET013TT1
Active Matrix E-Paper Display
The 1.3 inch EPD is a reflective electrophoretic E Ink technology display module based on active matrix TFT and plastic substrate.
It has 1.3 inch active area with 256 × 256 pixels, the display is capable to display images at black and white (1 bit only) depending on the display controller and the associated waveform file it used.
Tabs
Specification
| Size | 1.3 inch |
|---|---|
| Resolution (HxV) | 256 * 256 |
| Active Area | 23.30 * 23.30 mm |
| Outline Dimensions | 27.10 * 28.40 mm |
| Dpi | 279 |
| E Ink Film | Thin Pearl |
| Refresh Time | 3.2 sec |
| Backplane | Flexible |
| Total Thickness | 0.4 mm |
| Total Weight | 0.4 g |
| Grey Level | 2 |
| Front Light | - |
| Surface Treatment | Hard Coat |
