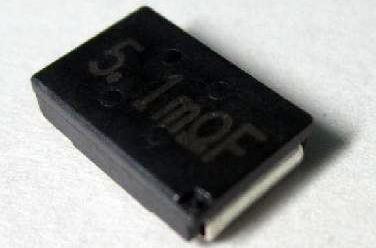

New Molded Current Sensing Resistors for Automotive from KOA

The new SLN5, flame  proof, molded SMD current  sensing resistor from  KOA now also allows a power rating of 7W and has a T.C.R. down to ±75ppm/K.

The terminal design absorbs solder junction stress reducing the possibility  of solder cracks.

Features:

  • 7W power rating in 4527 inch size
  • Ultra-low resistance (5mO) and high accuracy (+-0.5%)
  • Low risk of solder cracks
  • High reliability
  • Flame retardant resin molding (UL94 V-0)
  • Excellent dimension accuracy, mountability and
    shock-resistance due to molded construction
  • Suitable for flow, reflow and iron solderings
  • Operating Temperature range: -65 °C ~ +180 °C
  • AEC-Q200 qualified
  • EU-RoHS compliant

Applications:

  • Automotive and industrial devices
    (Motor control, inverters, DC/DC converters, batteries)
  • Power supplies, AC adapters
  • Home appliances (e.g. air conditioners)
  • Note PCs
