New Anti-Pulse Chip Resistors for Automotive from KOA – 0402, 0.25W

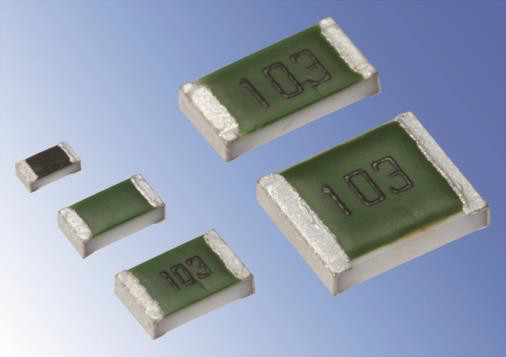

SG73P: Power Pulse Tolerant Chip Resistors

The SG73P series has approx. 7 times pulse handling capability compared to standard flat chip resistors. Due to the special resistance trimming it also allows a higher continuous power rating. This means that existing designs can be "powered up": An SG73P device can be dropped onto the pads of a similar sized conventional part, thus increasing the power capability without changing the PCB layout.

Features:

  • Outstanding pulse performance, high power
  • Allows e.g. 500 W for 10 µs in size 1210
  • High component and equipment reliability
  • 1 Ω … 10 MΩ, 0.5 … 5 %
  • T.C.R.: 100 … 200 ppm/K
  • 5 sizes from 0402 … 1210 inch
  • Operating temperatures up to +155 °C
  • EU RoHS compliant, AEC Q200 tested
  • Lab Kits are available
  • Anti Sulfuration type also available

Application Examples:

  • Automotive electronics
  • Power supplies
  • Industrial electronics
  • Measuring instruments
  • Motor control units
  • Smart meter
  • Power conditioner / inverter
  • White goods
  • etc.
SG73P Series – Space Saving Anti Pulse Chip Resistors
