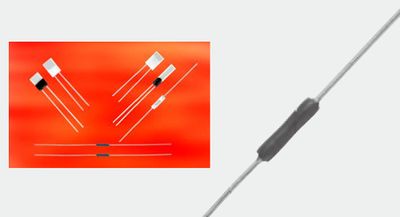

KOA’s SDT310 range of resistance temperature detectors (RTD) are available in both radial and axial formats.
These sensors offer excellent linearity, high stability, homogenous heating, high accuracy and fast response times.
The new SDT310VASP series combines improved heat response times in a body a quarter the size of conventional types.
All SDT310 are ideal for high accuracy sensing in industrial, measurement and automotive applications.
Features:
- High long term stability
- Excellent temperature shock resistance
- Excellent precision over a wide temperature range
- IEC 60751 and JIS C 1604 standard (SDT310HCTP)
- Temperature range: -55°C to +650 °C
- SDT310MTM measures to +650 °C with class B accuracy
- Ultra small types (SDT310VASP)
- Easy soldering of SDT310LTC and SDT310HLTC (SnCu wire)
- Meets EU-RoHS requirements
Applications:
- Cold point compensation for thermocouples
- Temperature compensation for RF circuits
- Heater element for thermal flowmeters
- Temperature compensation of air flow meters
- Medical and industrial appliances and machinery
- Analytical equipment
- Automotive (SDT310VASP)
- HVAC (heating, ventilation, air conditioning)
- Energy generating industries
| Category | Type | Size (mm) |
T.C.R. (ppm/K) |
T.C.R. Tolerance |
Thermal Time Constant |
Resistance at 0 °C |
Resistance Tolerance |
Class: Tolerance of Measuring Temperature |
Operating Temperature Range |
|---|---|---|---|---|---|---|---|---|---|
| Low Temp. | SDT310HLTC | 1.2 × 5.0 | 3850 (at 0°C/100°C) |
- | 2.8 sec in stationary air |
1 kΩ | A: ±0.059% B: ±0.12% C: ±0.39% |
A: ±(0.15+0.002 t ) °C B: ±(0.30+0.005 t ) °C C: ±(1.00+0.010 t ) °C |
-55 ~ +155 °C |
| Low Temp. | SDT310LTC | 2.0 × 3.0 | - | 7.0 sec in stationary air |
100 Ω 500 Ω 1 kΩ |
-55 ~ +155 °C | |||
| General | SDT310P | - | -55 ~ +400 °C | ||||||
| High Temp. | SDT310MTM | - | 100 Ω | B: ±0.12% C: ±0.39% |
B: ±(0.30+0.005 t ) °C C: ±(1.00+0.010 t ) °C |
-55 ~ +650 °C | |||
| Small Heater | SDT310AP | 0.8 × 3.0 | ±2% | 6.0 sec in stationary air |
10 Ω | ±10% | - | -55 ~ +400 °C | |
| Small Heater | SDT310VASP |
0.4 × 2.0 | ±25 ppm/K | 3.2 sec in stationary air |
20 Ω | ±1% | - | -55 ~ +600 °C | |
| General | SDT310HCTP* | 1.2 × 3.0 | - | 2.8 sec in stationary air |
100 Ω | ±0.059% | F0.15: ±(0.15+0.002 t ) °C | -55 ~ +300 °C | |
| ±0.12% | F0.3: ±(0.30+0.005 t ) °C | -55 ~ +400 °C |
* Characteristics of SDT310HCTP are equivalent to IEC 60751-2008 , JIC C 1604-2013
