ES103TC1
Active Matrix E-Paper Display

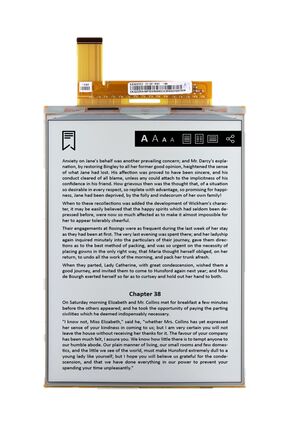

ES103TC1 is a reflective electrophoretic E Ink technology display module based on active matrix TFT and plastic substrate. The plastic substrate is protected by an outer covering.
Tabs
Specification
Size | 10.3 inch |
Resolution (HxV) | 1404 * 1872 |
Active Area | 157.25 * 209.66 mm |
Outline Dimensions | 165.80 * 227.70 mm |
Dpi | 226 |
E Ink Film | Carta 1.2 |
Refresh Time | 450 ms |
Backplane | Flexible |
Total Thickness | 0.65 mm |
Total Weight | 32 g |
Grey Level | 16 |
Front Light | - |
Surface Treatment | Anti-glare |
Tabs
Driving kits
Product | Image Update Possibility | Output Signal | Resolution, max. | Power Supply | Outline | Remark |
---|---|---|---|---|---|---|
EPD driver | SD card, USB, SPI | TTL | 2200 * 1650 |
3.3 V / 5 V | 100 * 50 | External configuration, FPC adapter |
