Save PCB Space with High Power Density Resistors from KOA

NEW: Increased Power Ratings

Special Flat Chip Resistors

  • Downsizing
    PCB space can be saved by using smaller parts from KOA's SG73 and WK73 series which allow the same power rating.
  • Power-up
    Alternatively, current layouts can be upgraded to allow higher rated power parts on existing footprints.

Pulse Proof and Anti-Surge Resistors - SG73 Series

New: SG73P1EW 0402, 0.25 W

Features:

  • Outstanding pulse performance (SG73, SG73P, SG73G)
  • Excellent in ESD characteristics (SG73, SG73S)
  • High component and equipment reliability
  • Available in sizes 0402...2512
  • Resistance range 1 Ω...10 MΩ
  • Resistance tolerances to ±0.25 % 0402, 0.25 W
  • Operating temperatures up to +155 °C
  • EU-RoHS compliant, AEC-Q200 qualified
  • Lab Kits are available
  • Anti-Sulfuration type also available

 Application Examples:

  • Automotive electronics
  • Power supplies
  • Industrial electronics
  • Measuring instruments
  • Motor control units
  • Smart meter
  • Power conditioner / inverter
  • White good

 Part Numbers and Series:

  • SG73: Pulse & surge withstanding, ±10 %, ±20 %, 0603...2512
  • SG73 P: Pulse withstanding, ±0.5 %... ±5 %, 0402...1210
  • SG73 S: Surge withstanding, ±0.5 %... ±5 %, 0402...1210
  • SG73 P/S_RT: Anti-sulfuration, 1 Ω...10 MΩ, 0402...2512
  • SG73 G: High precision & pulse withstanding, ±0.25 %, ±0.5 %,
  • 0603, 0805, 1206, T.C.R. ±50 ppm/K

Wide Termination Resistors - WK/WG/WU73 Series

New: WK73R1E 0204, 0.33 W

Features:

  • Excellent heat dissipation, low thermal expansion stress
  • Superior temperature and power cycling performance
  • Higher rated power – less board space than standard chips
  • Standard sizes 0204, 0306, 0508, 0612, 1020, 1218 and 1225
  • Resistance range 10 m Ω...1 MΩ
  • Resistance tolerances ±0.5 %, ±1 %, ±5 %
  • Operating temperatures to +155 °C
  • EU-RoHS compliant, AEC-Q200 qualified
  • Lab Kits are available
  • Anti-sulfuration type also available

 Application Examples:

  • Automotive electronics
  • Power supplies
  • Motor control units
  • Industrial power control
  • Battery packs
  • Consumer electronics
  • etc.

Part Numbers and Series:

  • WK73 R: 10 Ω...1 MΩ, 0204...1225
  • WK73 S: 10 mΩ...9.76 Ω, 0508...1225
  • WG73: Pulse withstanding, 560 mΩ...1 kΩ, 0612, 1020, 1225
  • WU73: Improved T.C.R., 10 mΩ...100 mΩ, 0612
  • WK73 R/S_RT: Anti-sulfuration, 1 Ω...1 MΩ, 0508...1225

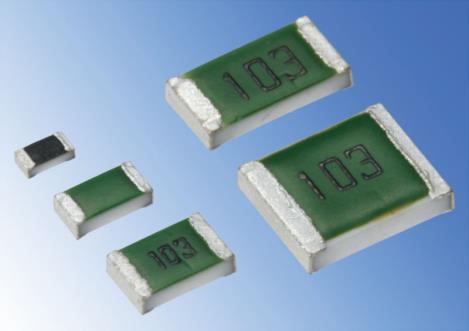

SG73 Series
Pulse Proof and Anti-Surge Resistors – SG73 Series

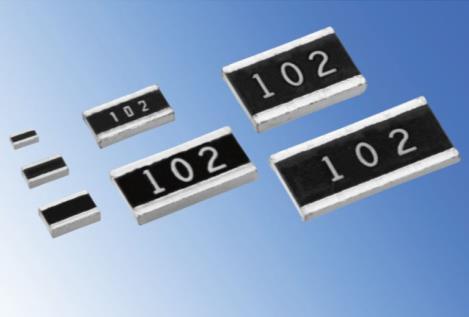

WK WG WU73 Series
Wide Termination Resistors – WK / WG / WU73 Series

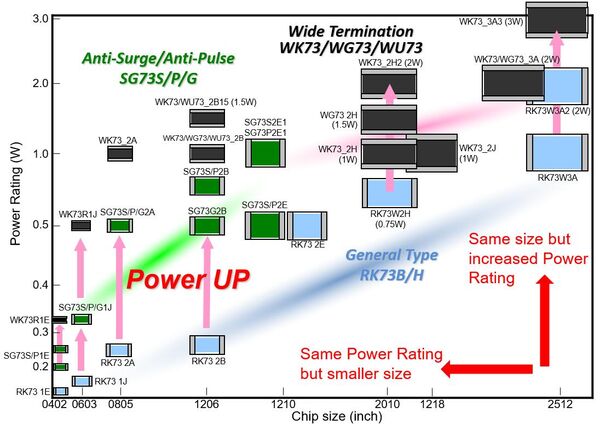

Flat Chip Size vs. Power Rating
Flat Chip Size vs. Power Rating for General / Anti-Surge / Wide Terminal types
