New Current Sensing Chip Resistors from KOA – 10 mΩ to 100 mΩ, TCR50

The new SLP-series of metal element current sensing resistors for the range 10 mΩ to 100 mΩ is now available from KOA.

The metal electrodes offer excellent solderability and have excellent thermal expansion and shrinkage stress performance.
With a T.C.R. of ±50 ppm/K and tolerance available to ±0.5 %, the new SLP-series is ideal for battery monitoring and other automotive
and industrial applications.

Features:

  • 10 mΩ ~ 100 mΩ
  • Tolerance to ±0.5 %
  • High-precision (T.C.R.: ±50 ppm/K)
  • Side suitable termination structure – can create solder fillet
  • 2 W power rating in 2010 inch
  • Suitable for flow, reflow and iron solderings
  • EU-RoHS compliant
  • AEC-Q200 qualified

Application Examples:

  • Automotive electronics
  • Batteries
  • Industrial equipment
  • DC/DC converters

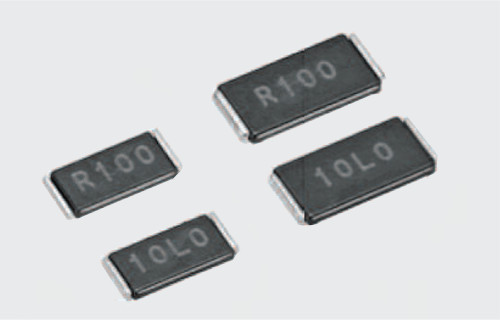

SLP Current Sensing Chip Resistor
