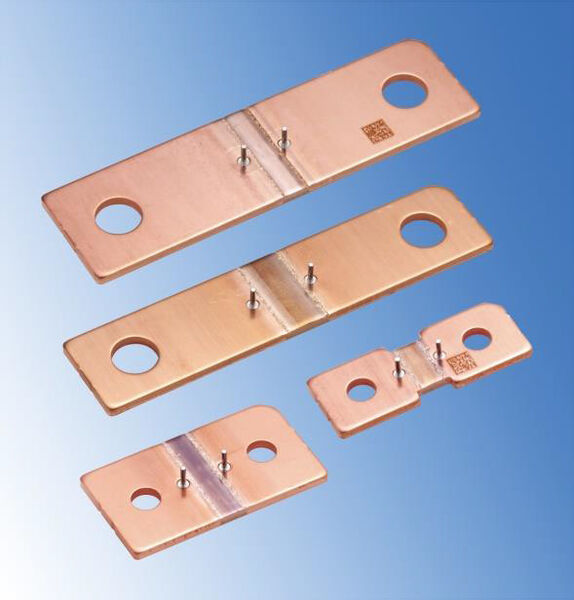

1000A – New Large Current High Power Shunt from KOA

The new HS series from KOA is ideal for sensing currents up to 1000 A.

Constructed using a solid metal alloy resistance element with copper terminations the device provides superior corrosion and heat resistance and has excellent pulse resistance.

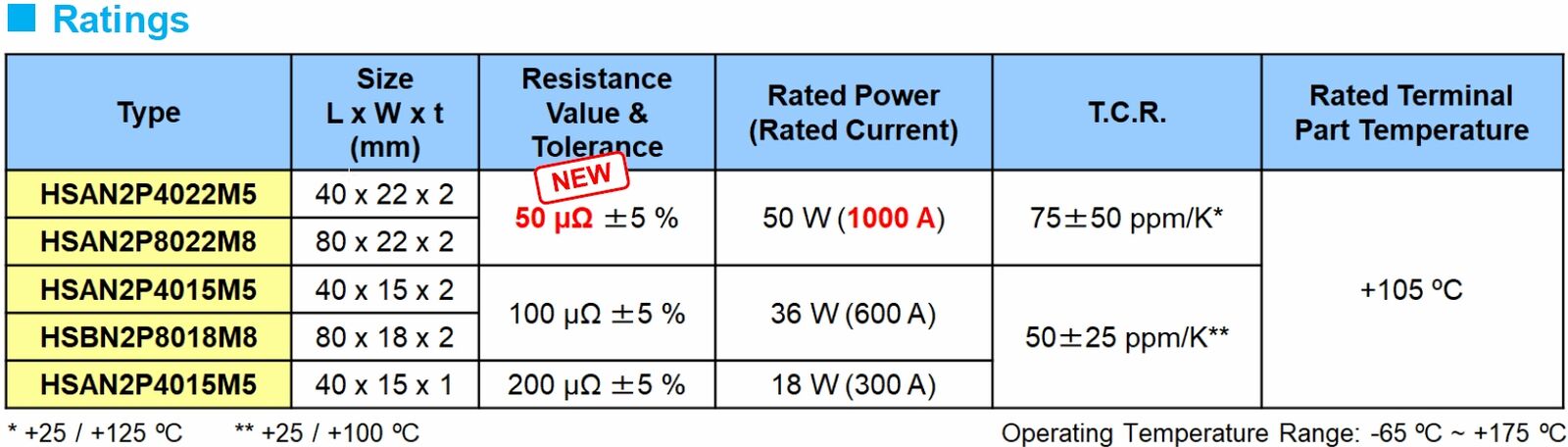

Product Features:
  • Large current detection by ultra-low resistance of 50 μΩ
  • High accuracy sensing with dedicated detection terminals
  • Bus bar and cable can be screwed on
  • High reliability by robust construction
  • Small size (40 mm × 15 mm) and high performance
  • 2D code marking for individual resistance information is possible
  • Custom specific shapes on request
  • EU-RoHS compliant
  • AEC-Q200 qualified
Special Feature:
  • 2D – Data Matrix Code (optional – 25 digits max.)
Application Examples:
  • Automotive and Industrial devices
  • EV / HEV
  • Battery Monitoring
  • DC-DC Converters
  • Home Energy Management
  • Building Energy Management
1000 A – Large Current Shunt
