EPD Driver

Display Controller

BECK Elektronik Bauelemente

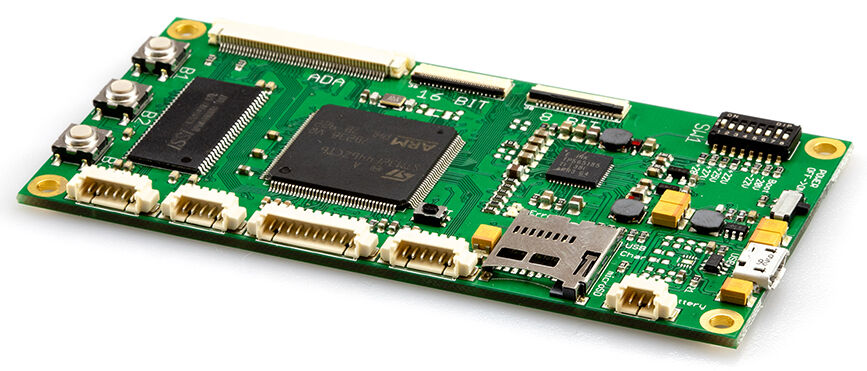

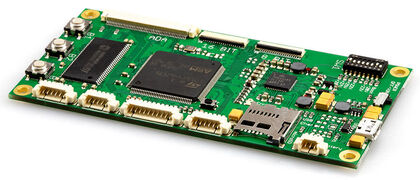

The EPD driver board is designed for driving Electrical Paper Display (EPD) from 6" up to 14" with different resolutions and up to 16 grey levels.

The small form factor and flat design of the board gives an advantage to keep the thickness of the total assembly low. Display content can be transferred to USB, SPI or presented from the SD memory card. The EPD Driver Board can be driven from battery.

The EPD Driver Board's functionality can be extended by customized assembly or firmware configuration.

Display Controller EPD Driver

Tabs

Specification

Resolution, max. 2200 * 1650
Output Signal TTL
Outline Dimensions 100 * 50 mm
Driving Voltage 3.3 / 5.0 V
Update Possibilities SD card, USB, SPI
Power 70 mA
Power, sleep mode 2 mA
Total Thickness 7 mm
Total Weight 25 g
Grey Level Support 16

Tabs

Downloads

Product Specification Download
Brief Technical Specification Download
Quick Start Guide Download
Firmware Update User Guide Download
Data Transmission Protocol Download
Example SD Card Download
config.ini Download
EPD Driver Board for ePaper Displays
Easy to use: EPD Driver Board for ePaper Displays (Video, Beck Elektronik).
