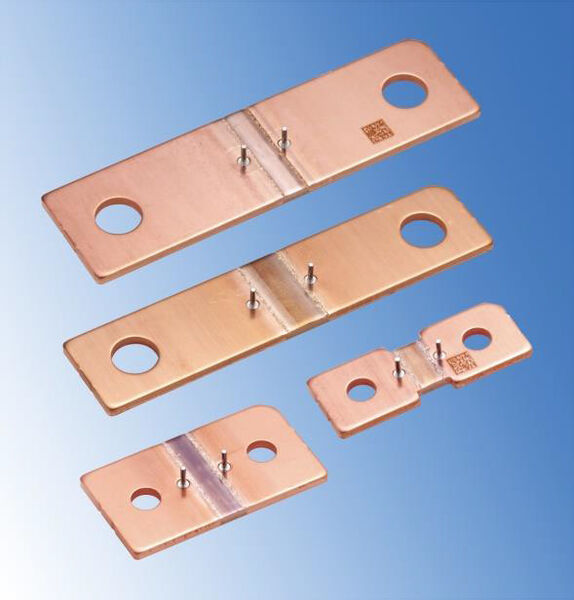

The new HS series from KOA is ideal for sensing currents up to 1000 A.
Constructed using a solid metal alloy resistance element with copper terminations the device provides superior corrosion and heat resistance and has excellent pulse resistance.
Product Features:
- Large current detection by ultra-low resistance of 50 μΩ
- High accuracy sensing with dedicated detection terminals
- Bus bar and cable can be screwed on
- High reliability by robust construction
- Small size (40 mm × 15 mm) and high performance
- 2D code marking for individual resistance information is possible
- Custom specific shapes on request
- EU-RoHS compliant
- AEC-Q200 qualified
Special Feature:
- 2D – Data Matrix Code (optional – 25 digits max.)
Application Examples:
- Automotive and Industrial devices
- EV / HEV
- Battery Monitoring
- DC-DC Converters
- Home Energy Management
- Building Energy Management
