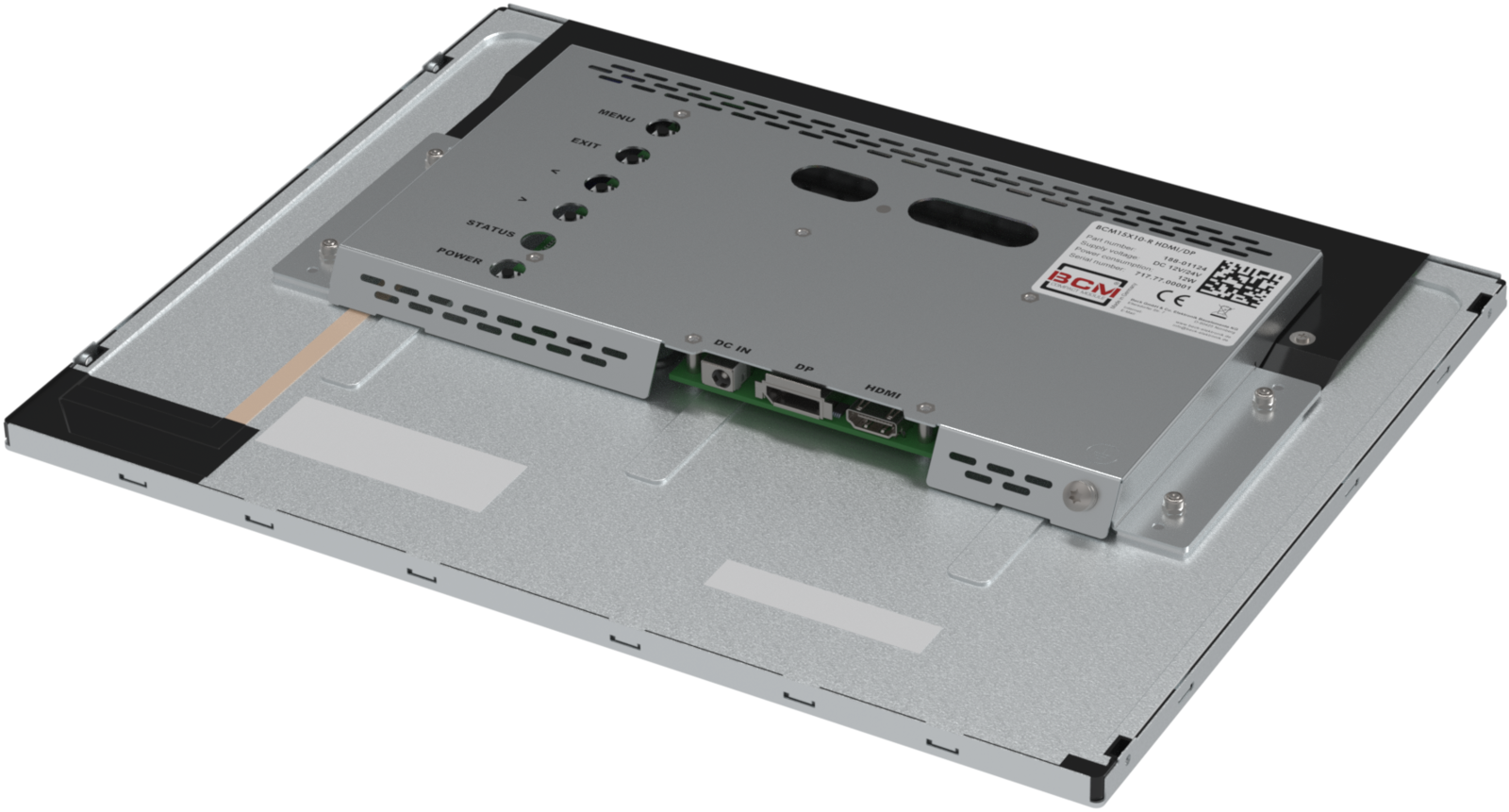

Compact Line (BCM)

and optional accessories

BCM
Made in Germany

To design this open-frame solution with the lowest possible installation depth, the signal connections (Analog-RGB, DVI) are equipped with single-row flat connectors. In addition to the connecting cables, fixed mountable adapters to use standard connectors are available. The assembly takes place via the mounting points of the base display.

Please also note our our product philosophy to our ready for connection TFT Displays.

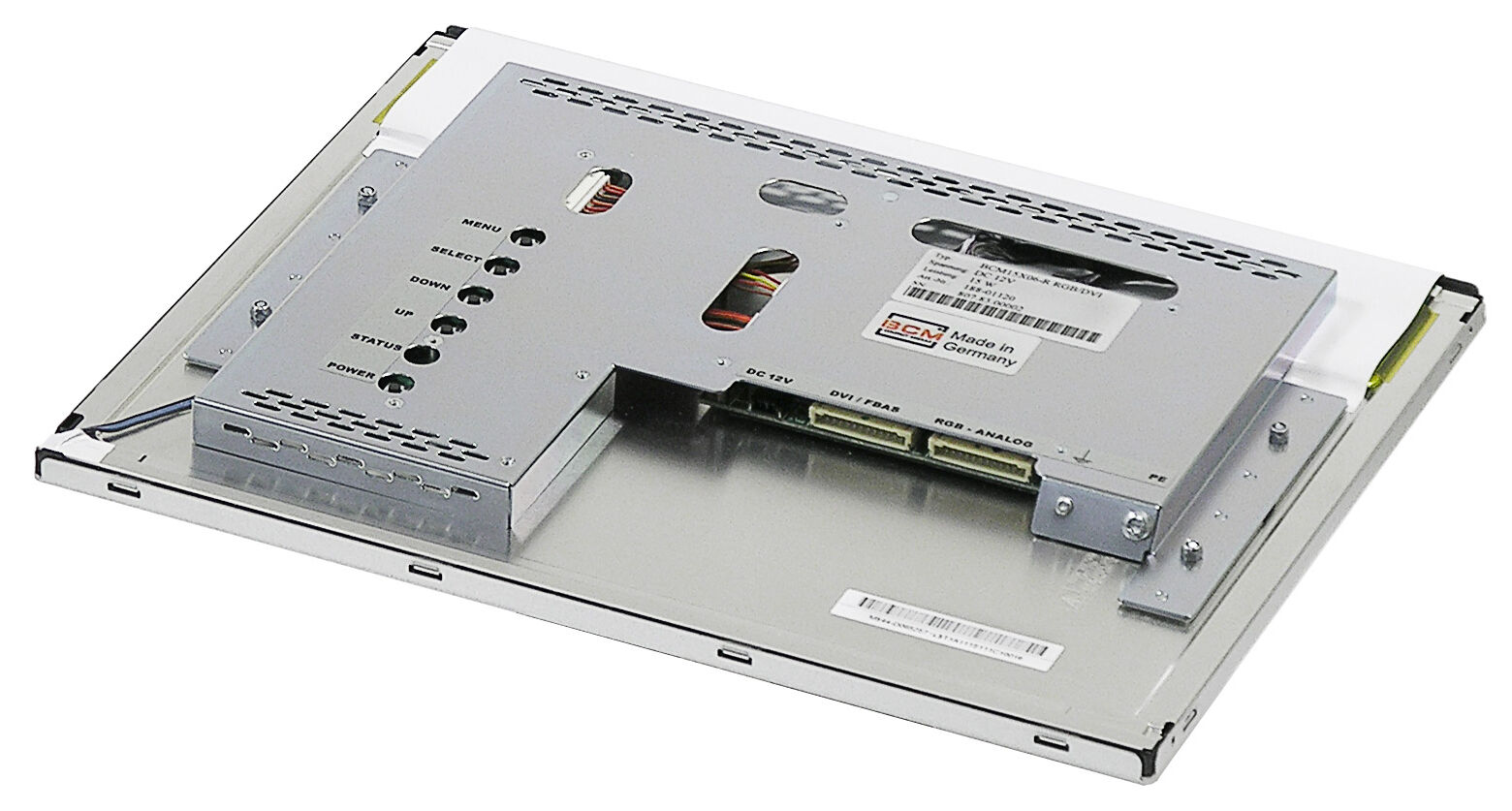

Compact Line (BCM)

  • Open-frame solution with very low installation depth
  • Easy assembling via the mounting points of the base display
  • Signal inputs by one-row flat connectors
  • Fixed mountable adapters to use standard connectors – available as accessories
Size
(cm)
Size
(inch)
Touch Type Part Number Resolution
(X*Y)
Brightness
(cd/m²)
Contrast Viewing Angle
(3 / 6 / 9 / 12, o'clock)
Interface Power Supply Outline
(H*V*D, mm)
Remark Image

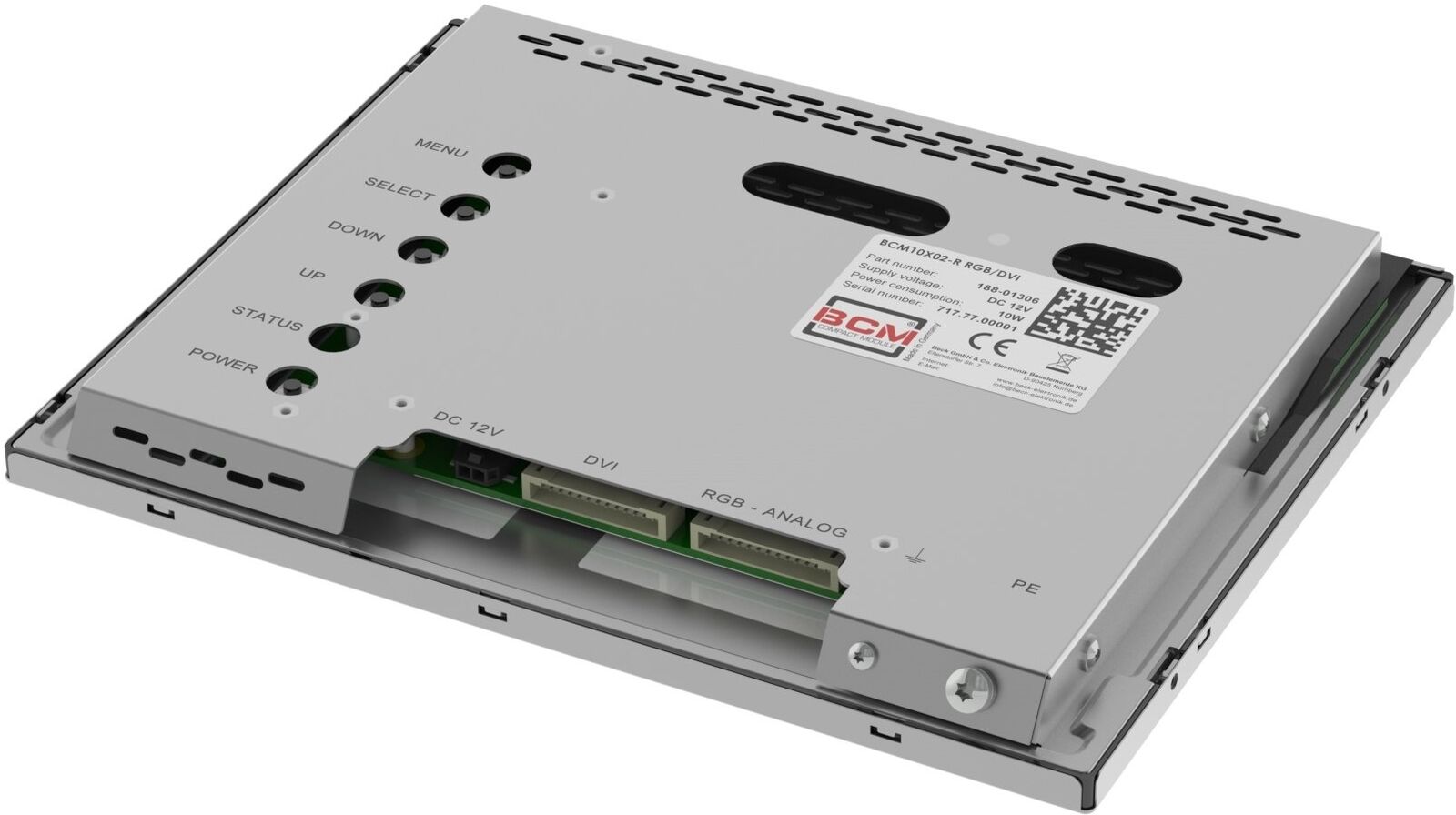

26.4 10.4 w/o BCM10X01-R RGB/DVI 188-01304 1024*768 500 1000:1 88 / 88 / 88 / 88 Analog-RGB / DVI 12V DC 225.5*176.3*20.0 wide view (MVA), high brightness View picture Download
26.4 10.4 w/o BCM10X02-R RGB/DVI 188-01306 1024*768 500 1000:1 88 / 88 / 88 / 88 Analog-RGB / DVI 12V DC 225.5*176.3*20.0 wide view (AAS), high brightness No picture yet Download
30.7 12.1 w/o BCM12X03-R RGB/DVI 188-01305 1024*768 600 1000:1 89 / 89 / 89 / 89 Analog-RGB / DVI 12V DC 260.5*204.0*17.6 wide view (AAS), high brightness No picture yet Download
38.1 15.0 w/o BCM15X08-R RGB/DVI 188-01122 1024*768 500 2500:1 88 / 88 / 88 / 88 Analog-RGB / DVI 12V DC 326.5*253.5*22.8 wide view (VA), high brightness View picture Download

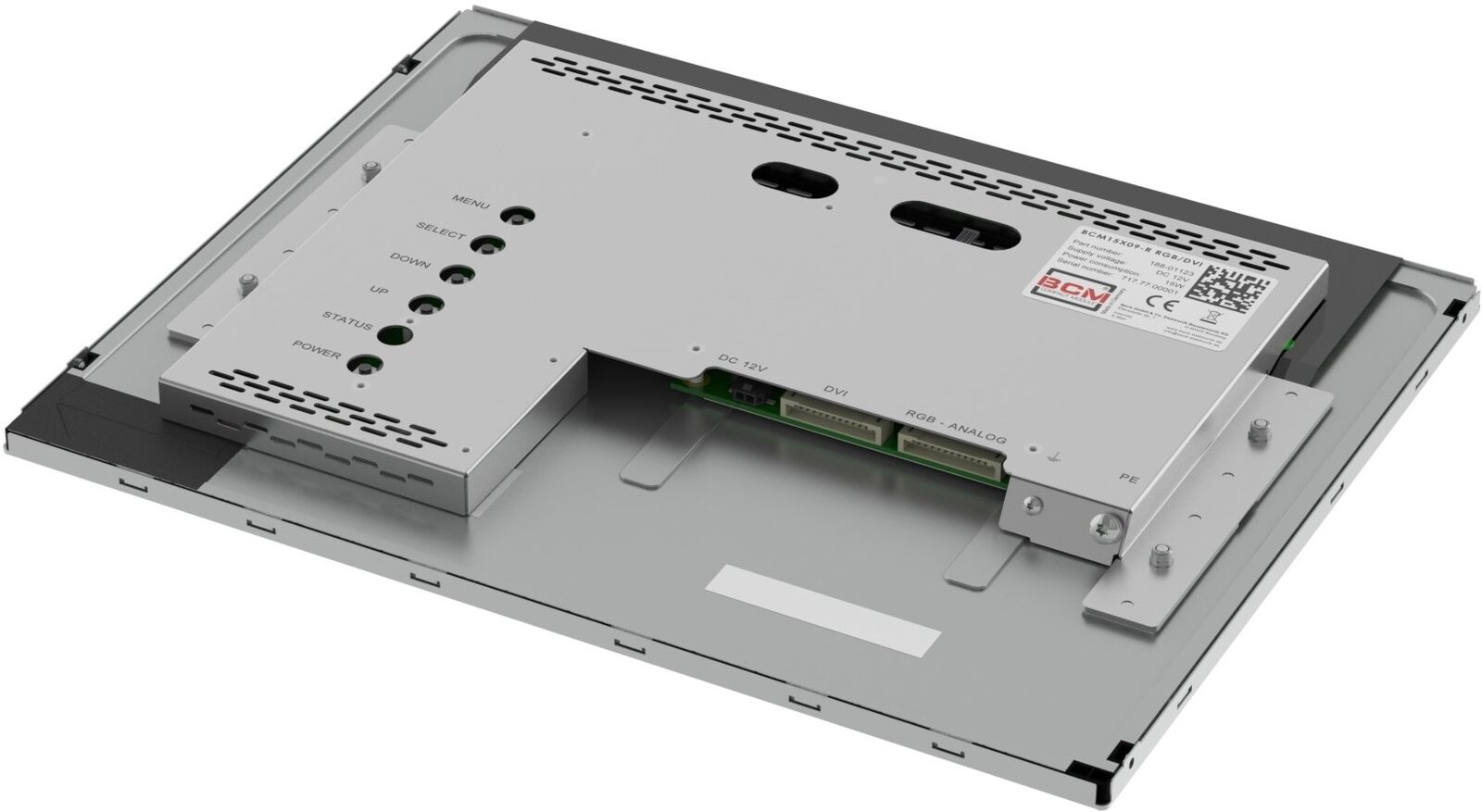

38.1 15.0 w/o BCM15X09-R RGB/DVI 188-01123 1024*768 500 2500:1 88 / 88 / 88 / 88 Analog-RGB / DVI 12V DC 326.5*253.5*21.1 wide view (VA), high brightness No picture yet Download

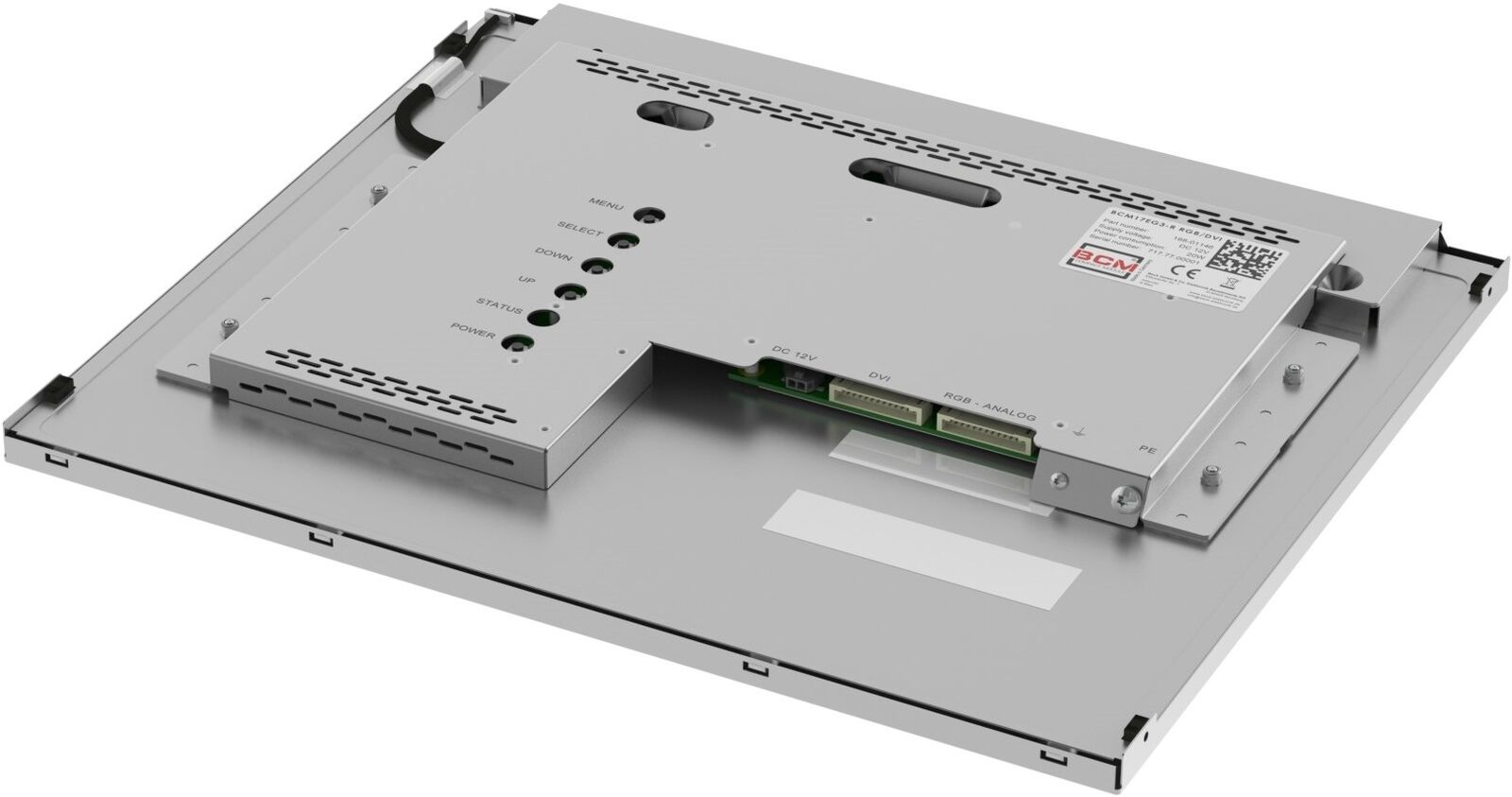

43.2 17.0 w/o BCM17EG3-R RGB/DVI 188-01146 1280*1024 350 1000:1 85 / 80 / 85 / 80 Analog-RGB / DVI 12V DC 358.5*296.5*22.8 high brightness, fast response time No picture yet Download
47.0 18.5 w/o BCM18W01-R RGB/DVI 188-01178 1366*768 300 1000:1 85 / 80 / 85 / 80 Analog-RGB / DVI 12V DC 430.5*254.8*21.2 fast response time View picture Download
48.3 19.0 w/o BCM19EG5-R RGB/DVI 188-01179 1280*1024 350 2000:1 89 / 89 / 89 / 89 Analog-RGB / DVI 12V DC 396.0*324.0*20.5 wide view (MVA), high brightness No picture yet Download
48.3 19.0 w/o BCM19EG6-R RGB/DVI 188-01180 1280*1024 350 1000:1 85 / 80 / 85 / 80 Analog-RGB / DVI 12V DC 396.0*324.0*21.9 high brightness, fast response time No picture yet Download
Size
(cm)
Size
(inch)
Touch Type Part Number Resolution
(X*Y)
Brightness
(cd/m²)
Contrast Viewing Angle
(3 / 6 / 9 / 12, o'clock)
Interface Power Supply Outline
(H*V*D, mm)
Remark Image
Size
(cm)
Size
(inch)
Type Part Number Connector Adapters Connector Cable Sets Power Supplies Fastening Sets Other Accessories Parts of the Connector Adapters
188-
00499:
RGB only
188-
00512:
DVI only
188-
00515:
RGB/DVI
188-

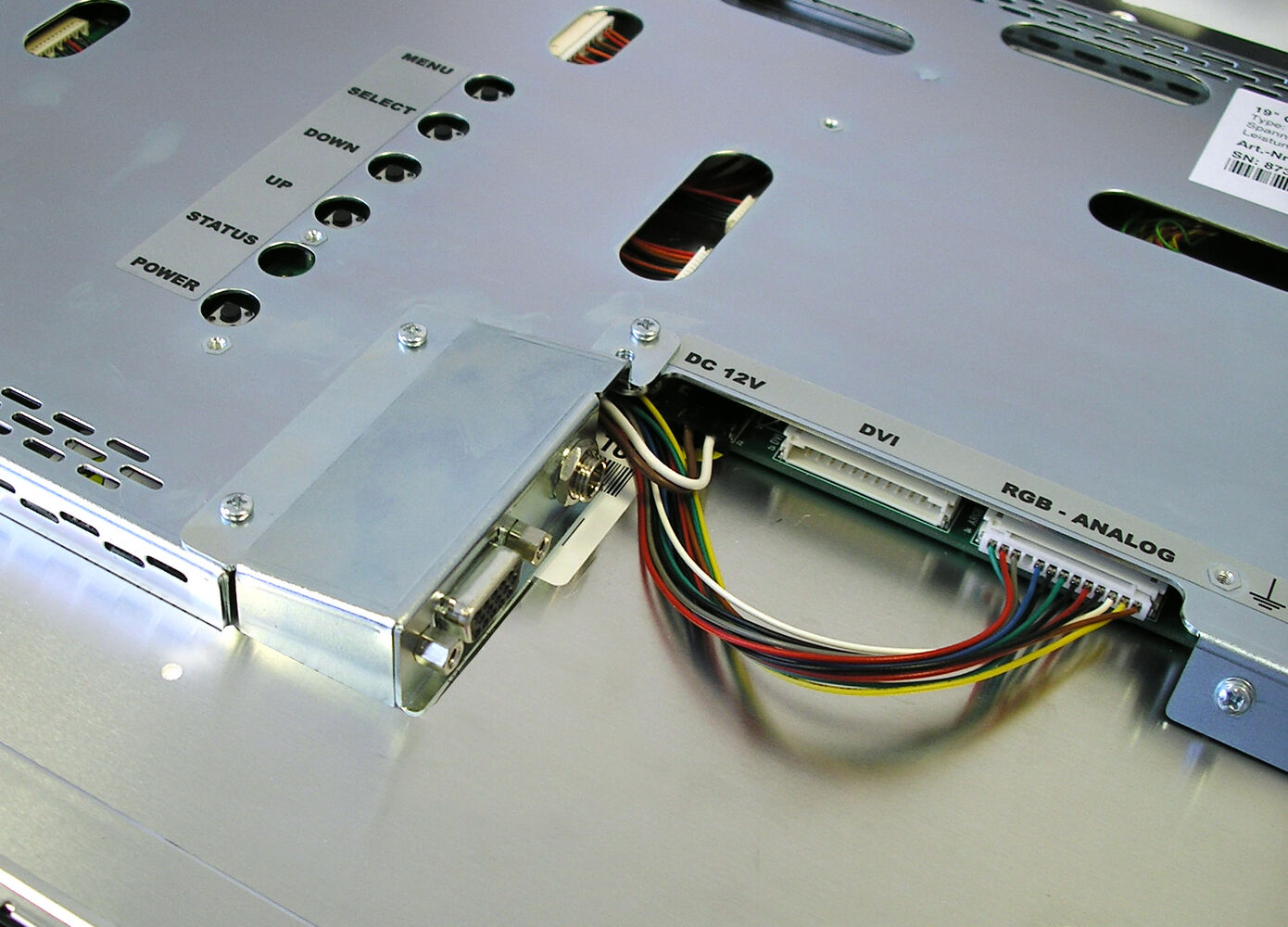

00608: RGB only
188-
00609: DVI only
188-

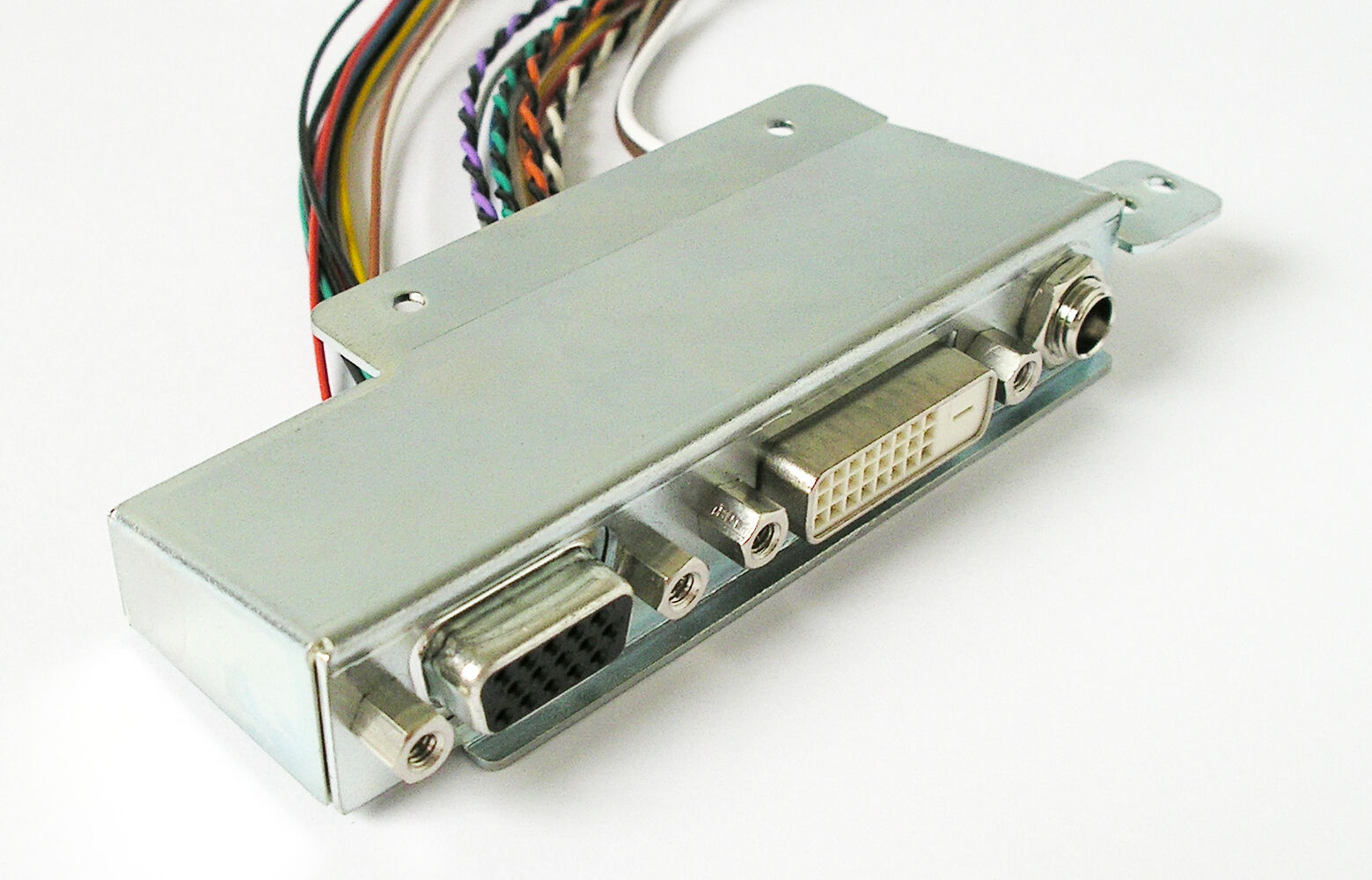

00547: RGB/DVI
188-
00498:
VGA 2.0 m
188-
00508:
DVI 2.0 m
188-
02280: VGA 2.0 m
188-
00627: DVI 2.0 m

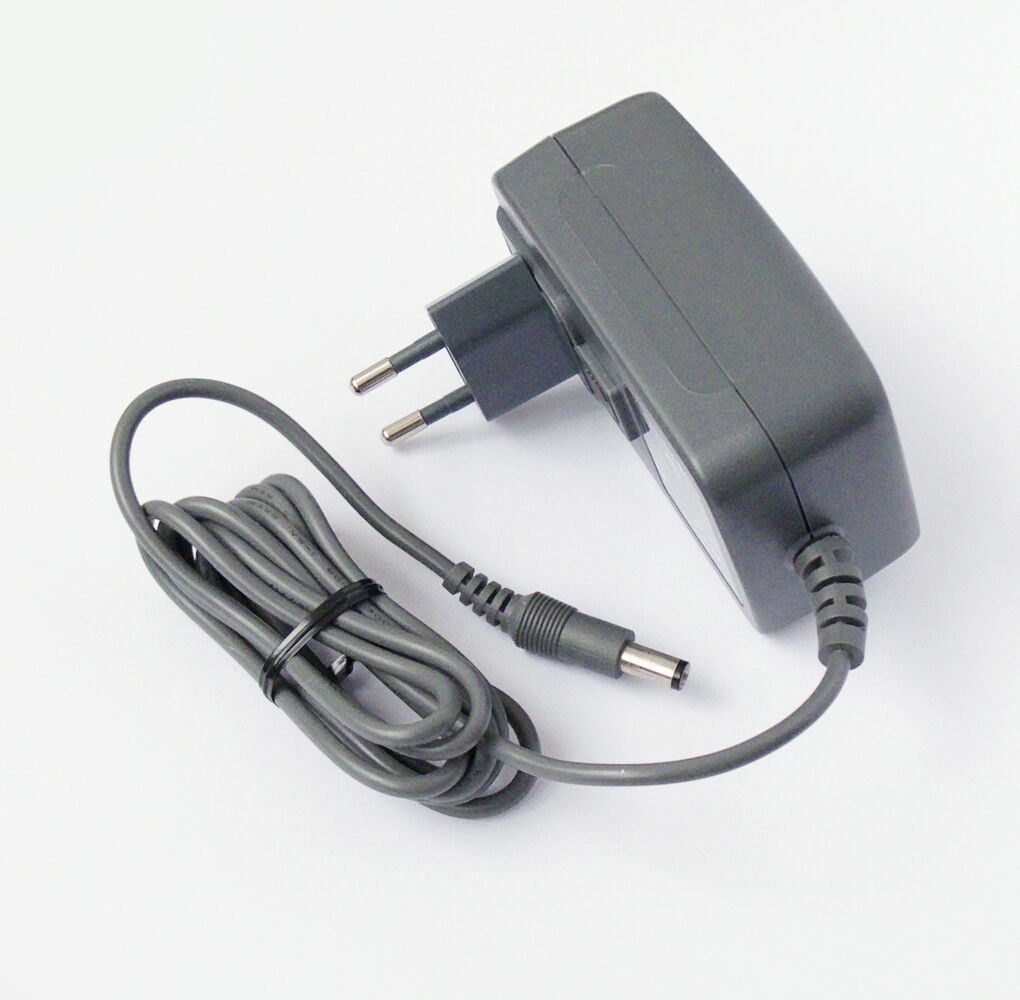

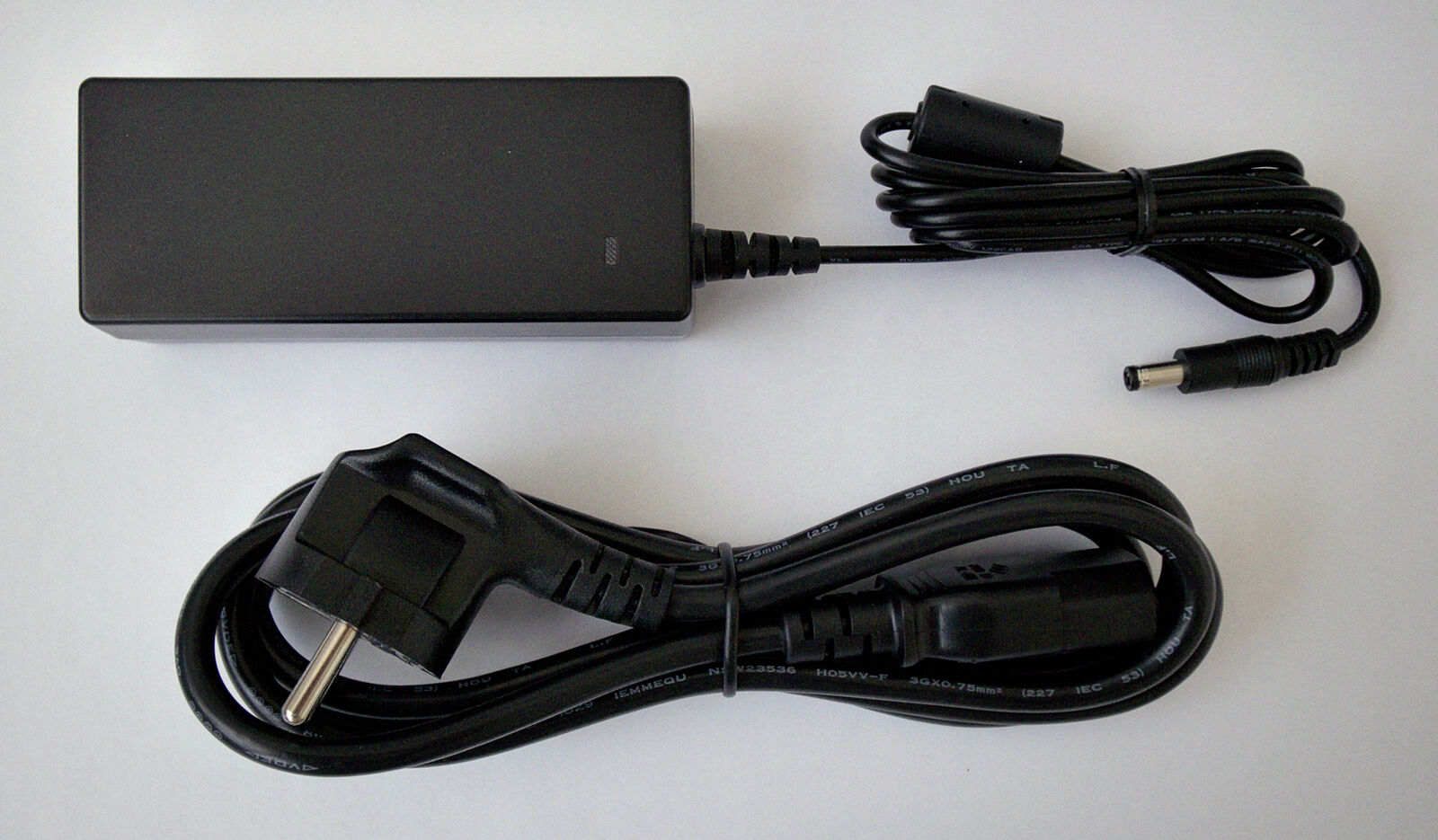

188-00333: GT-46600-6012-T3 188-
00331:
GT-41131-
3015-3.0
188-
00554:
BCM10X01
188-
00531:
BCM12S01
188-
00527:
BCM15X02
188-
00528:
BCM17E01
188-
00555:
BCM18W01
188-
00529:
BCM19EG1

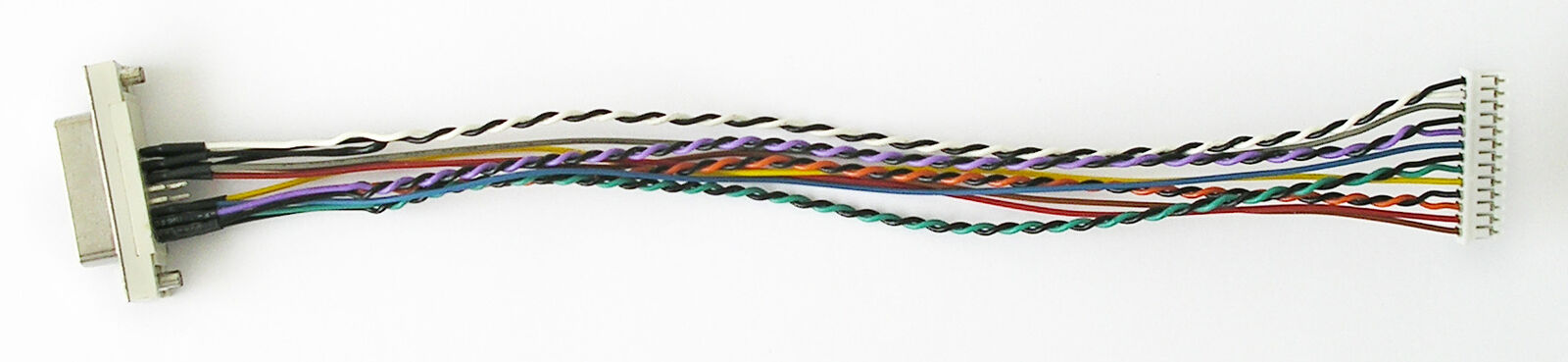

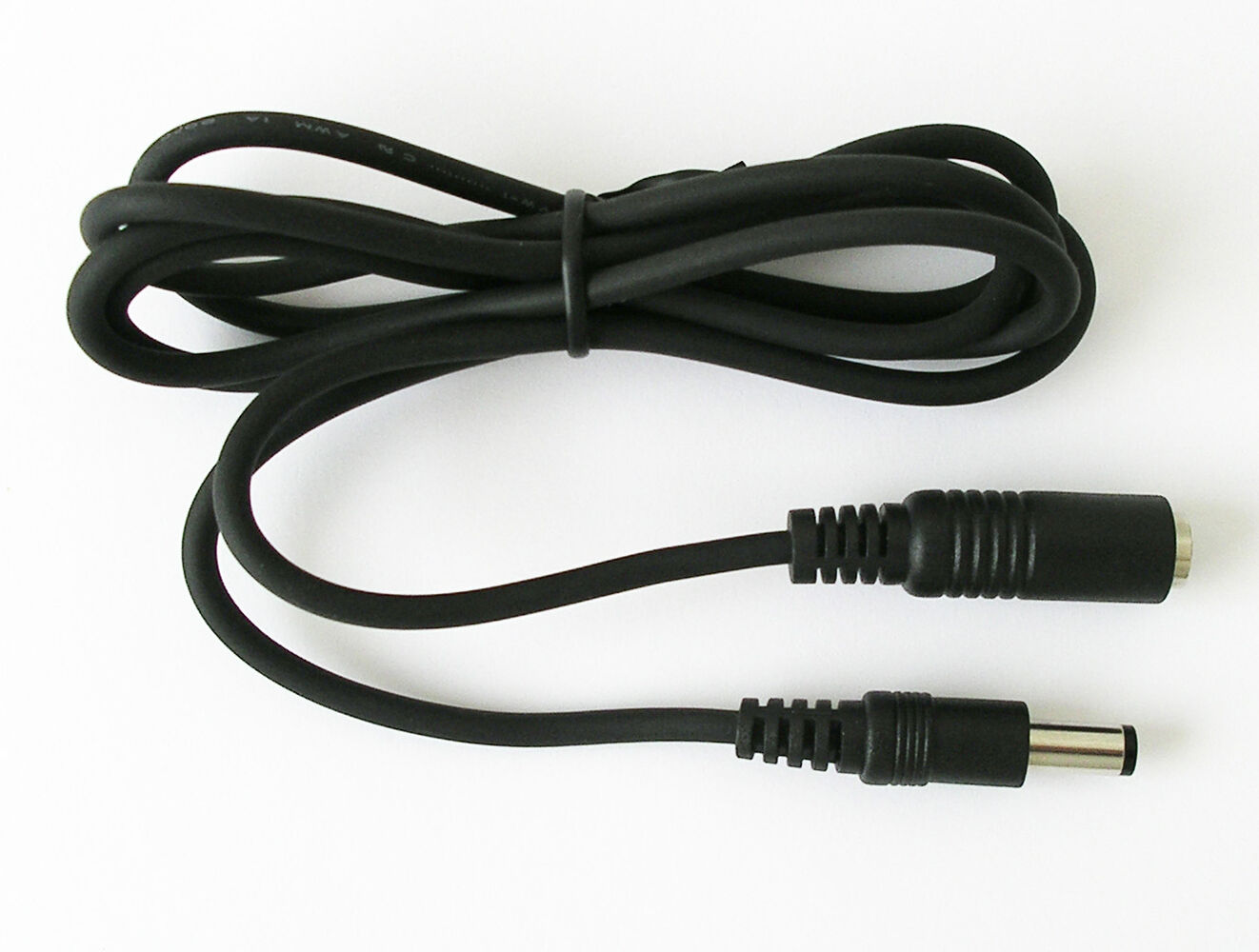

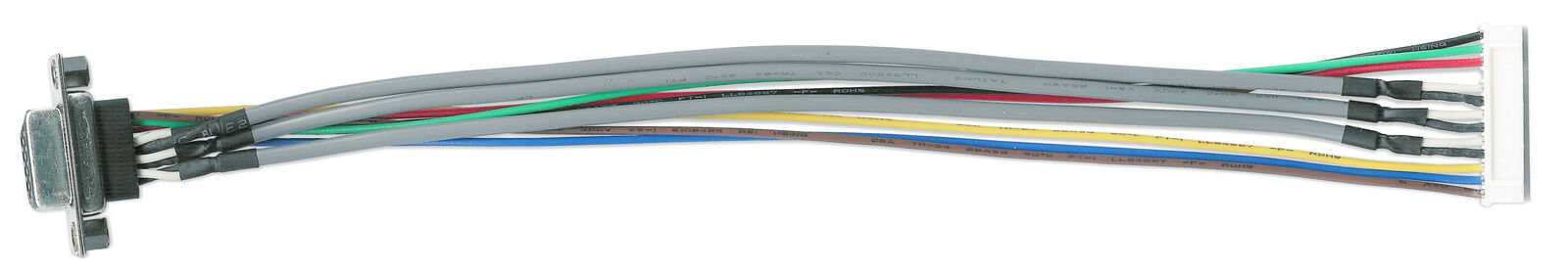

188-00232: VGA Connector Cable 2.2 m 188-00231: DVI-D Connector Cable 2.2 m 188-00216: DC Power Cord 0.85 m 188-02281: DC Power Cord 0.85 m 188-00218: PS Extension Cable 1.25 m 188-00207: DC Power Cord 90 mm 188-02275: DC Power Cord 100 mm 188-00208: VGA Cable 200 mm 188-00211: DVI Cable 200 mm
View picture View picture View picture No picture yet No picture yet No picture yet View picture View picture No picture yet No picture yet No picture yet View picture Download Download Download Download Download Download View picture View picture View picture No picture yet View picture View picture No picture yet View picture View picture
26.4 10.4 BCM10X01-R RGB/DVI 188-01304
26.4 10.4 BCM10X02-R RGB/DVI 188-01306
30.7 12.1 BCM12X03-R RGB/DVI 188-01305
38.1 15.0 BCM15X08-R RGB/DVI 188-01122
38.1 15.0 BCM15X09-R RGB/DVI 188-01123
43.2 17.0 BCM17EG3-R RGB/DVI 188-01146



47.0 18.5 BCM18W01-R RGB/DVI 188-01178
48.3 19.0 BCM19EG5-R RGB/DVI 188-01179
48.3 19.0 BCM19EG6-R RGB/DVI 188-01180
