Beck Compact Modules (BCM)

Open Frame Displays / Product Overview

Open Frame Displays with long-term availability – for projects that require quality and consistency.

Beck Compact Modules are TFT Displays ready for Connection.

Drive peripherals such as interface cards, LED converters, OSD boards and others are adapted to the display. They are attached to the display via a special housing which forms a completely integrated unit with the display. Construction, product innovation and production of the Compact Module takes place at the Beck facilities. Typical applications for the Compact Modules are multimedia or industrial applications, such as info-terminals (POI, POS), gaming machines, industrial displays and industrial PCs as well as control units for industrial machines.

TFT Displays ready for Connection

  • Diagonals 26.4 – 68.6 cm (10.4” – 27.0”)
  • Optional with touchscreen (PCAP or Resistive)
  • European standards in production and quality
  • Long Term Availability
  • Customized solutions
  • Made in Germany

Please also note our our product philosophy to our ready for connection TFT Displays.

BCM
Made in Germany

Standard Line (SCM)

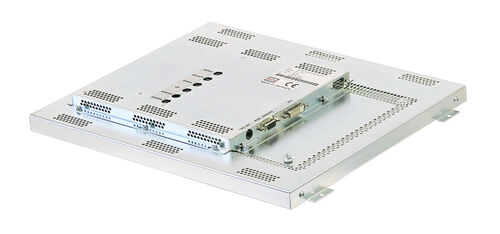

SCM17EG2-R RGB/DVI
  • Encapsulated solution with excellent EMC behaviour
  • Easy assembling via mounting points of the chassis
  • Signal input via standard connectors

Compact Line (BCM)

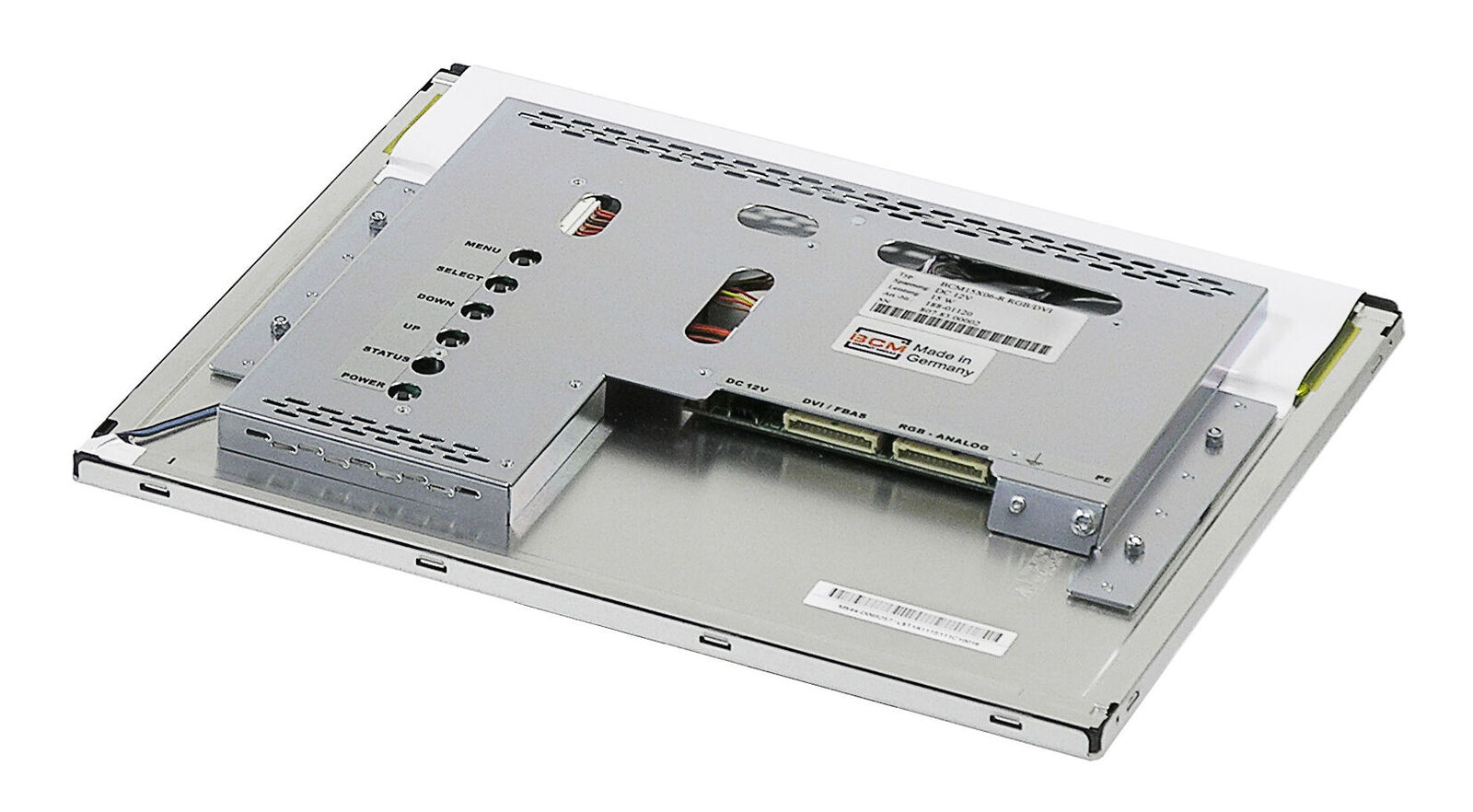

BCM15X06-R RGB/DVI
  • Open-frame solution with very low installation depth
  • Easy assembling via the mounting points of the base display
  • Signal inputs by one-row flat connectors
  • Fixed mountable adapters to use standard connectors – available as accessories
Size
(cm)		 Size
(inch)		 Product
Line		 Touch Type Part Number Resolution
(X*Y)		 Brightness
(cd/m²)		 Contrast Viewing Angle
(3 / 6 / 9 / 12, o'clock)		 Interface Power Supply Outline
(H*V*D, mm)		 Remark Image
26.4 10.4 SCM w/o SCM10X01-R HDMI/DP 188-01316 1024*768 500 1000:1 88 / 88 / 88 / 88 HDMI / DP 12V / 24V 246.7*178.2*30.5 wide view (AAS), high brightness View picture Download
26.4 10.4 SCM PCAP-Touch SCMT10X01-R HDMI/DP 188-01422 1024*768 450 1000:1 88 / 88 / 88 / 88 HDMI / DP 12V / 24V 251.9*209.3*34.0 wide view (AAS), high brightness View picture Download
30.7 12.1 SCM w/o SCM12X01-R RGB/DVI/DP 188-01315 1024*768 600 1000:1 89 / 89 / 89 / 89 Analog-RGB / DVI / DP 12V DC 281.5*205.9*29.6 wide view (AAS), high brightness View picture Download
30.7 12.1 SCM PCAP-Touch SCMT12X01-R RGB/DVI/DP 188-01420 1024*768 540 1000:1 89 / 89 / 89 / 89 Analog-RGB / DVI / DP / USB 12V / 24V 290.5*239.8*37.7 wide view (AAS), high brightness View picture Download

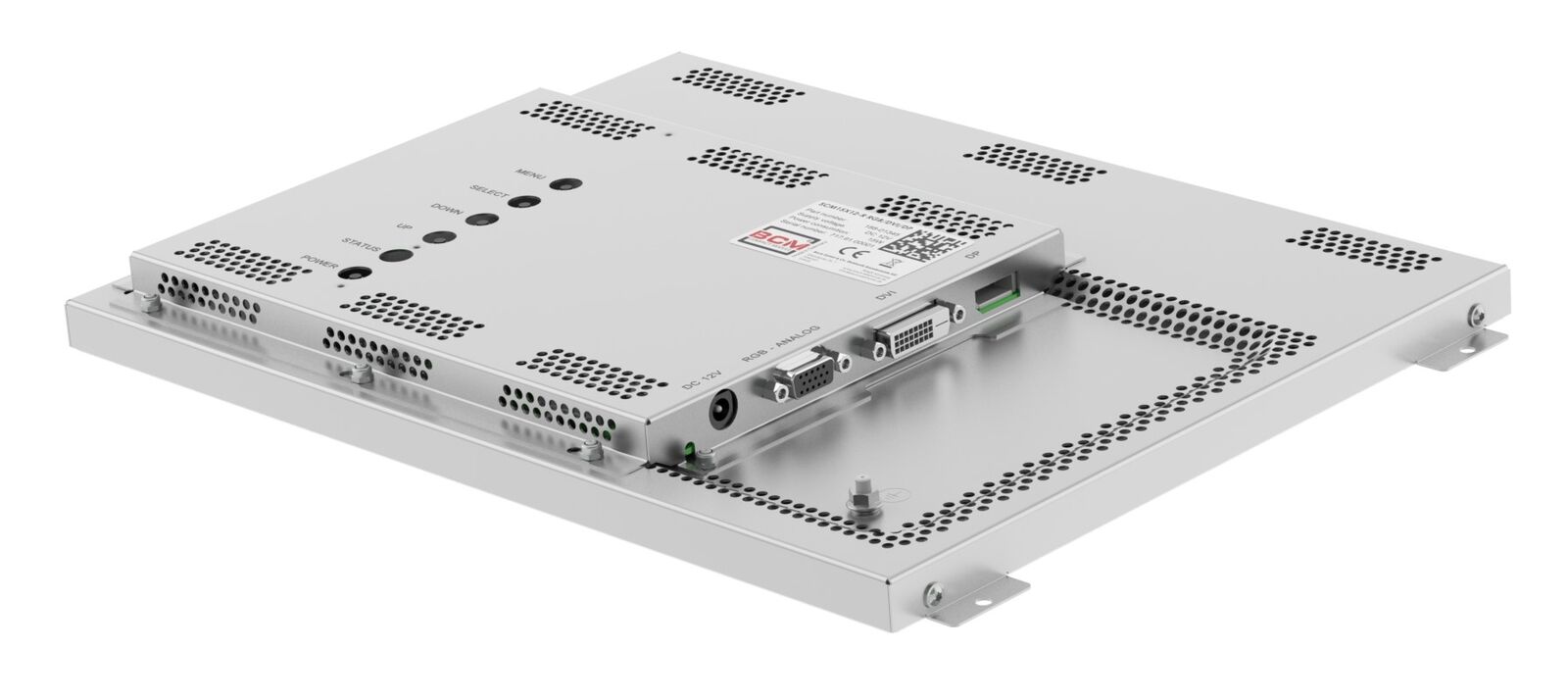

38.1 15.0 SCM w/o SCM15X12-R RGB/DVI/DP 188-01345 1024*768 500 2500:1 88 / 88 / 88 / 88 Analog-RGB / DVI / DP 12V DC 347.0*255.1*28.8 wide view (VA), high brightness View picture Download

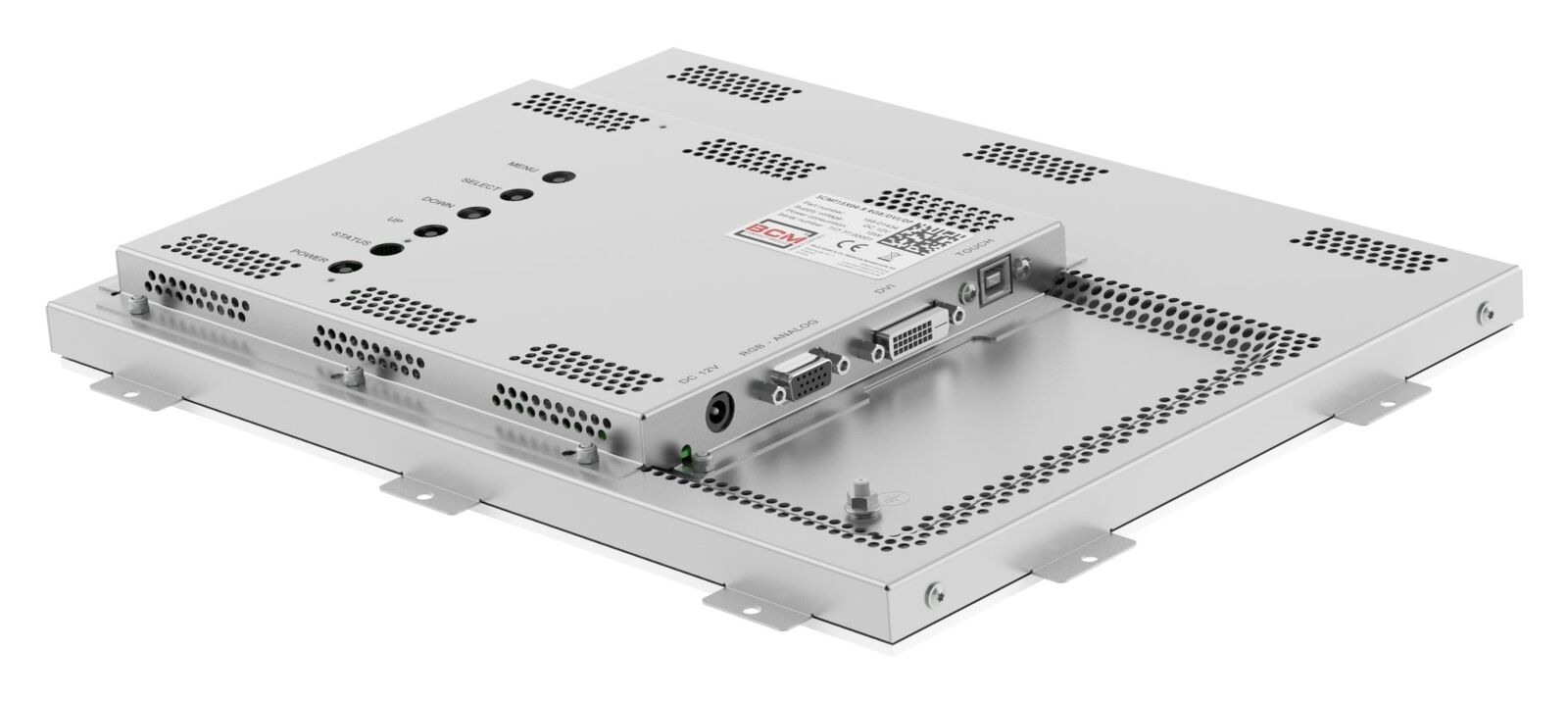

38.1 15.0 SCM RES-Touch SCMT15X04-R RGB/DVI 188-01434 1024*768 410 2500:1 88 / 88 / 88 / 88 Analog-RGB / DVI / USB 12V / 24V 349.2*276.1*36.0 wide view (VA), high brightness View picture Download
38.1 15.0 SCM PCAP-Touch SCMT15X05-R RGB/DVI 188-01435 1024*768 450 2500:1 88 / 88 / 88 / 88 Analog-RGB / DVI / USB 12V DC 349.2*283.4*40.0 wide view (VA), high brightness View picture Download
39.6 15.6 SCM w/o SCM15H01-R RGB/DVI/DP 188-01344 1920*1080 450 800:1 89 / 89 / 89 / 89 Analog-RGB / DVI / DP 12V / 24V 384.8*236.9*32.1 wide view (AAS), high brightness View picture Download

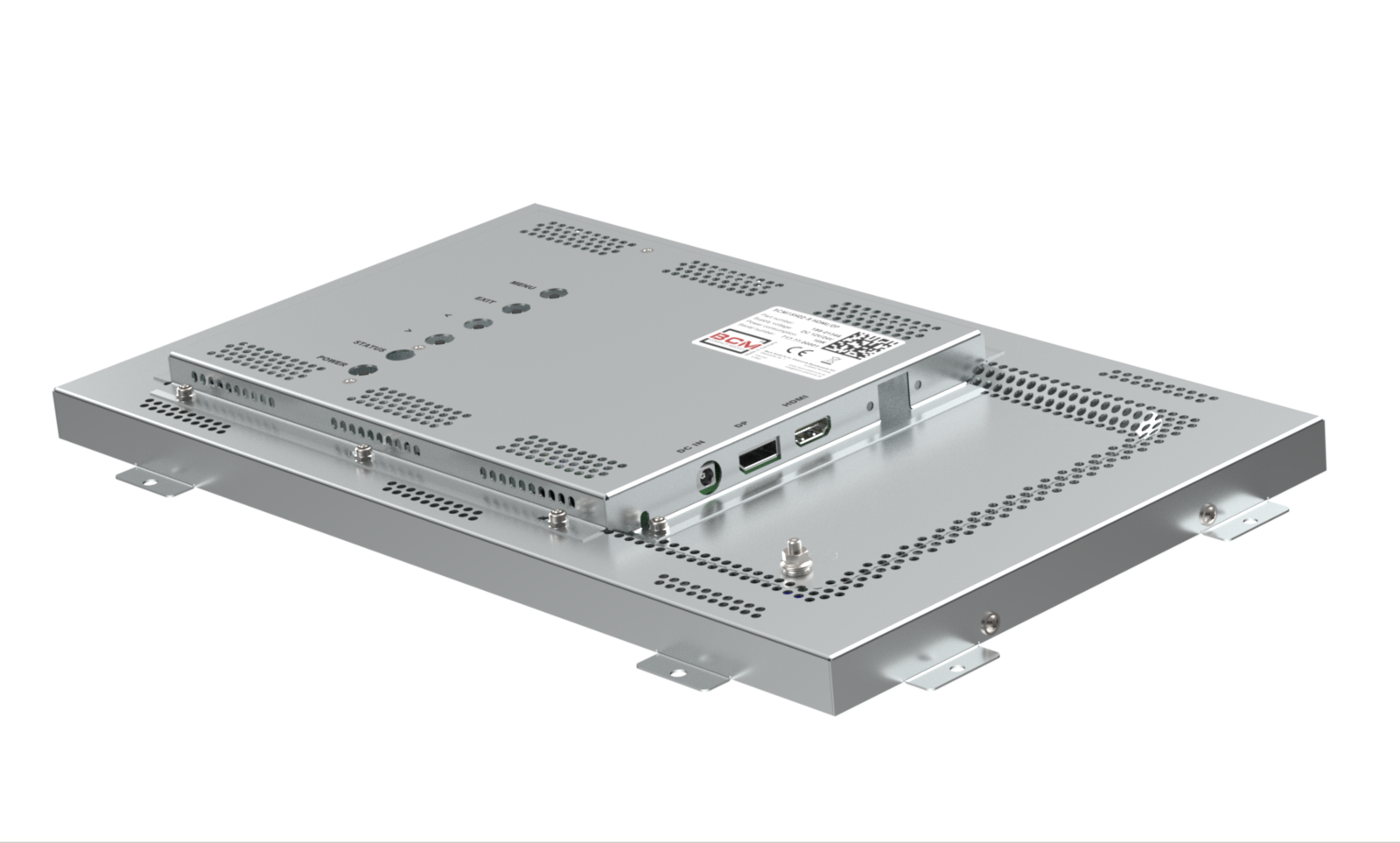

39.6 15.6 SCM w/o SCM15H02-R HDMI/DP 188-01346 1920*1080 450 800:1 89 / 89 / 89 / 89 HDMI / DP 12V / 24V 385.6*237.7*30.5 wide view (AAS), high brightness View picture Download
39.6 15.6 SCM PCAP-Touch SCMT15H01-R HDMI/DP 188-01436 1920*1080 405 800:1 89 / 89 / 89 / 89 HDMI / DP 12V / 24V 389.2*247.9*35.5 wide view (AAS), high brightness View picture Download

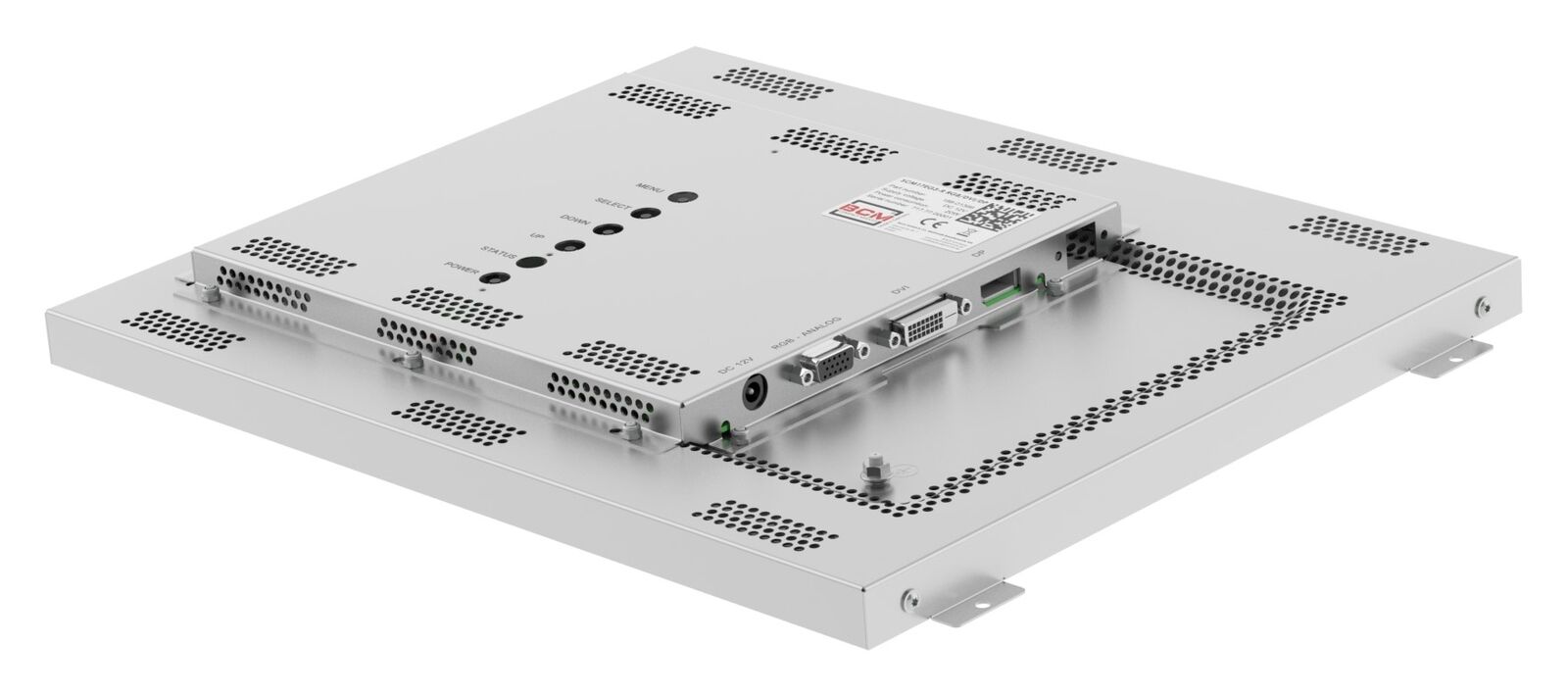

43.2 17.0 SCM w/o SCM17EG3-R RGB/DVI/DP 188-01366 1280*1024 350 1000:1 85 / 80 / 85 / 80 Analog-RGB / DVI / DP 12V / 24V 379.5*298.4*32.8 high brightness, fast response time View picture Download
43.2 17.0 SCM RES-Touch SCMT17EG3-R RGB/DVI/DP 188-01442 1280*1024 287 1000:1 85 / 80 / 85 / 80 Analog-RGB / DVI / DP / USB 12V / 24V 381.4*320.0*38.5 fast response time View picture Download
43.2 17.0 SCM PCAP-Touch SCMT17EG2-R RGB/DVI 188-01441 1280*1024 315 1000:1 85 / 80 / 85 / 80 Analog-RGB / DVI / USB 12V DC 385.6*328.6*39.4 fast response time View picture Download

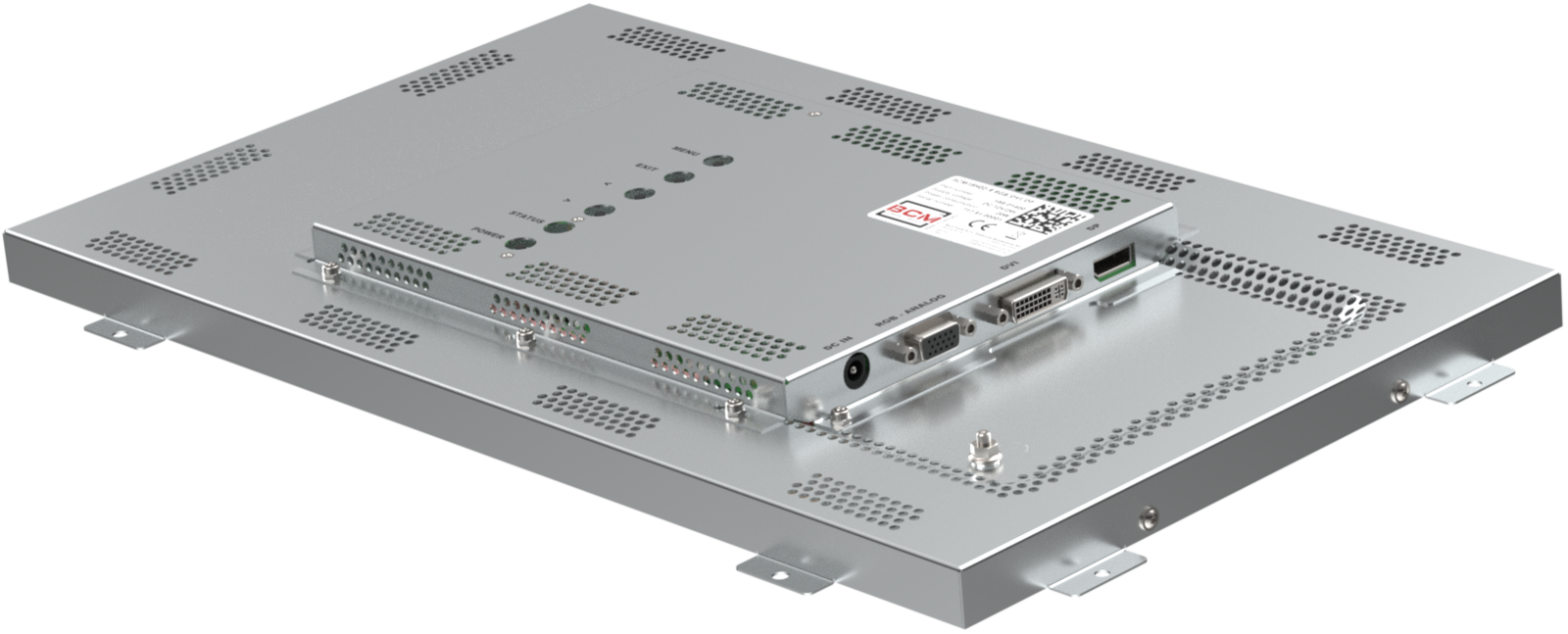

47.0 18.5 SCM w/o SCM18H02-R RGB/DVI/DP 188-01400 1920*1080 350 1000:1 89 / 89 / 89 / 89 Analog-RGB / DVI / DP 12V DC 452.2*276.4*32.1 wide view (AHVA), high brightness View picture Download
47.0 18.5 SCM PCAP-Touch SCMT18H01-R RGB/DVI 188-01463 1920*1080 315 1000:1 89 / 89 / 89 / 89 Analog-RGB / DVI / USB 12V DC 457.6*285.3*40.0 wide view (AHVA) View picture Download
48.3 19.0 SCM w/o SCM19EG6-R RGB/DVI/DP 188-01402 1280*1024 350 2000:1 89 / 89 / 89 / 89 Analog-RGB / DVI / DP 12V / 24V 417.0*325.9*32.8 wide view (MVA), high brightness View picture Download

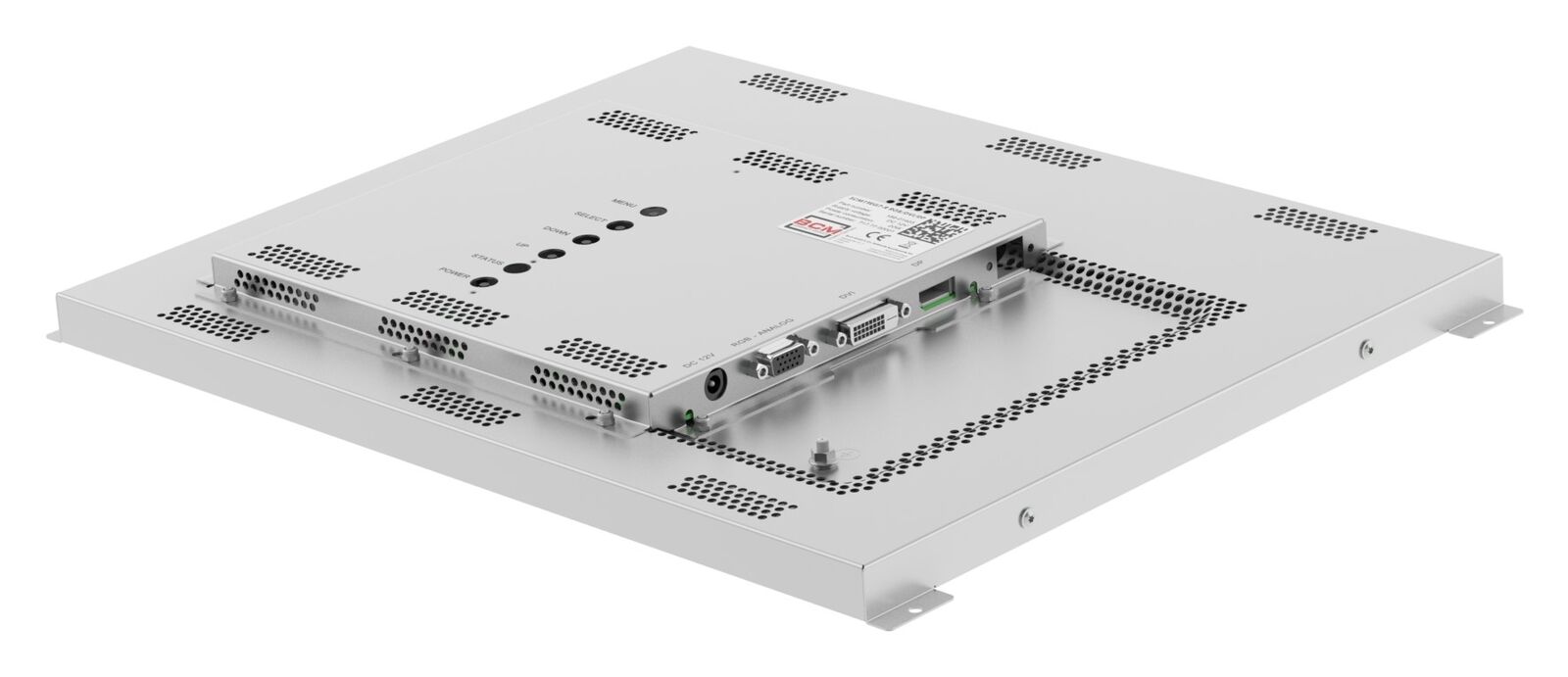

48.3 19.0 SCM w/o SCM19EG7-R RGB/DVI/DP 188-01403 1280*1024 350 1000:1 85 / 80 / 85 / 80 Analog-RGB / DVI / DP 12V / 24V 417.0*325.9*32.8 high brightness, fast response time View picture Download

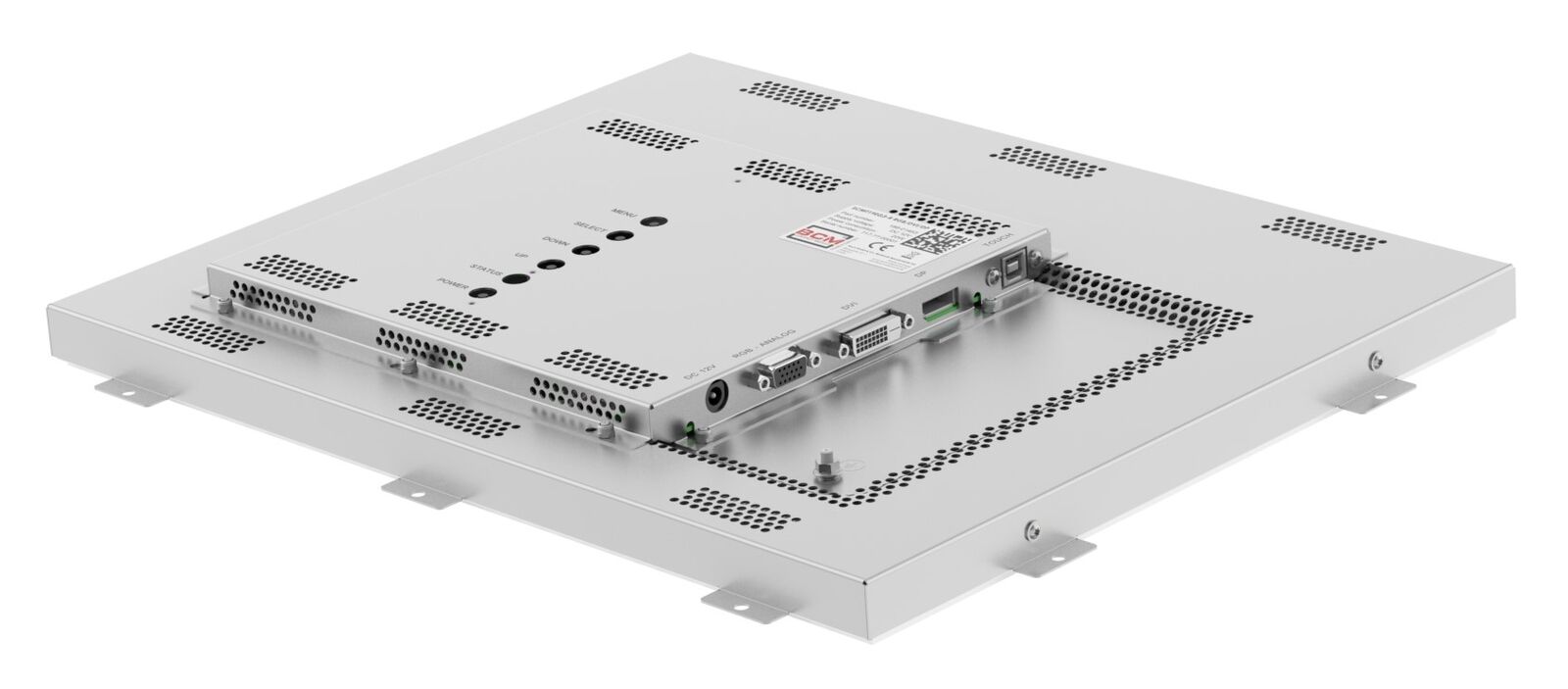

48.3 19.0 SCM RES-Touch SCMT19EG3-R RGB/DVI/DP 188-01453 1280*1024 287 1000:1 85 / 80 / 85 / 80 Analog-RGB / DVI / DP / USB 12V DC 419.5*347.5*38.2 fast response time View picture Download
48.3 19.0 SCM PCAP-Touch SCMT19EG4-R RGB/DVI/DP 188-01454 1280*1024 315 1000:1 85 / 80 / 85 / 80 Analog-RGB / DVI / DP / USB 12V / 24V 423.4*356.9*39.6 fast response time View picture Download

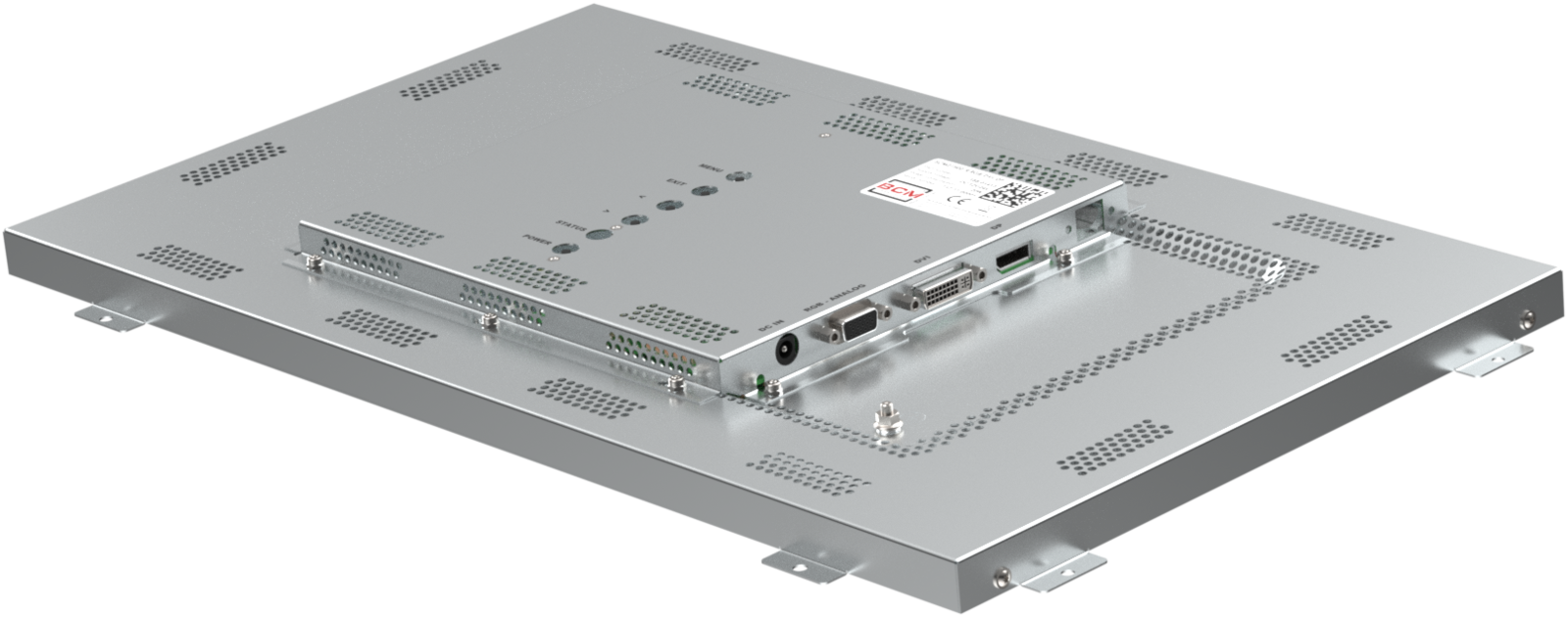

54.6 21.5 SCM w/o SCM21H02-R RGB/DVI/DP 188-01413 1920*1080 300 5000:1 89 / 89 / 89 / 89 Analog-RGB / DVI / DP 12V / 24V 517.4*314.0*32.0 wide view (MVA) View picture Download

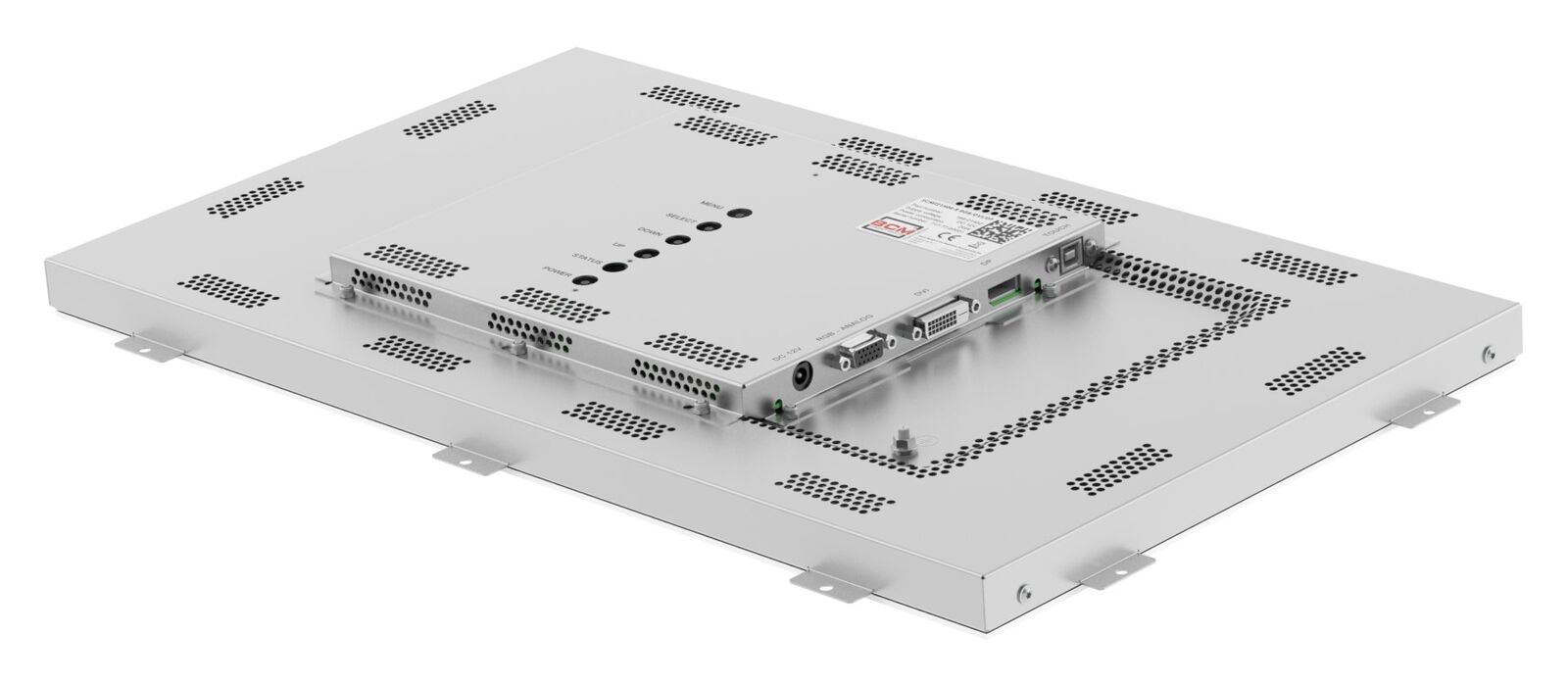

54.6 21.5 SCM RES-Touch SCMT21H04-R RGB/DVI/DP 188-01462 1920*1080 246 5000:1 89 / 89 / 89 / 89 Analog-RGB / DVI / DP / USB 12V DC 518.0*318.5*38.1 wide view (MVA) View picture Download

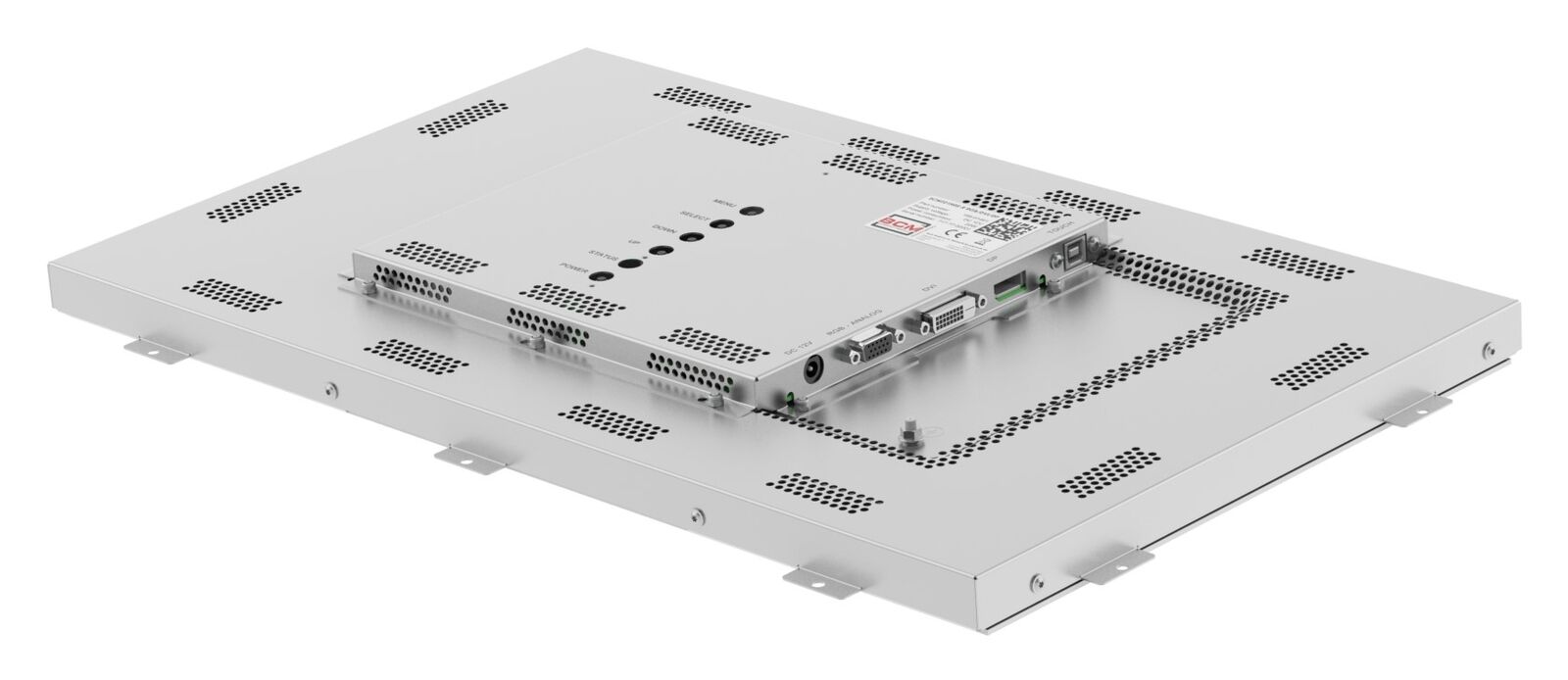

54.6 21.5 SCM PCAP-Touch SCMT21H05-R RGB/DVI/DP 188-01461 1920*1080 270 5000:1 89 / 89 / 89 / 89 Analog-RGB / DVI / DP / USB 12V DC 525.0*327.0*38.1 wide view (MVA) View picture Download

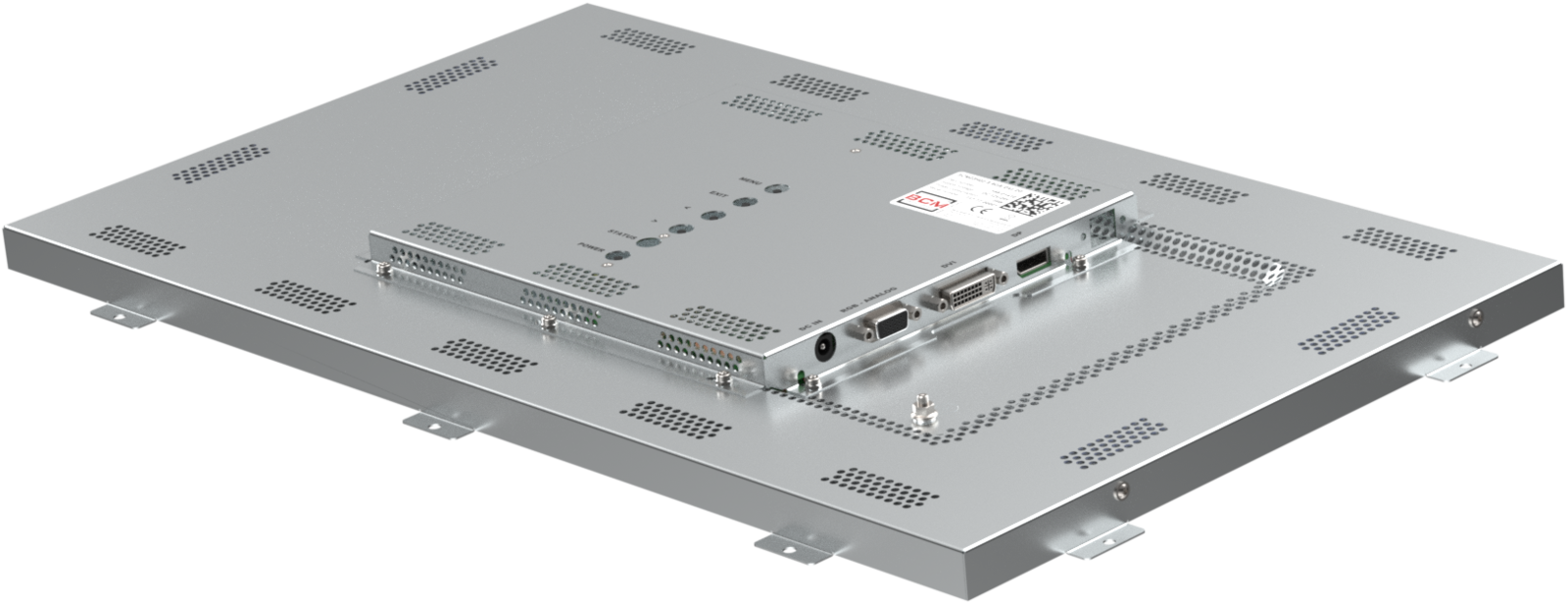

60.5 23.8 SCM w/o SCM23H02-R RGB/DVI/DP 188-01410 1920*1080 450 1000:1 89 / 89 / 89 / 89 Analog-RGB / DVI / DP 12V / 24V 561.6*338.1*32.6 wide view (AAS), high brightness View picture Download

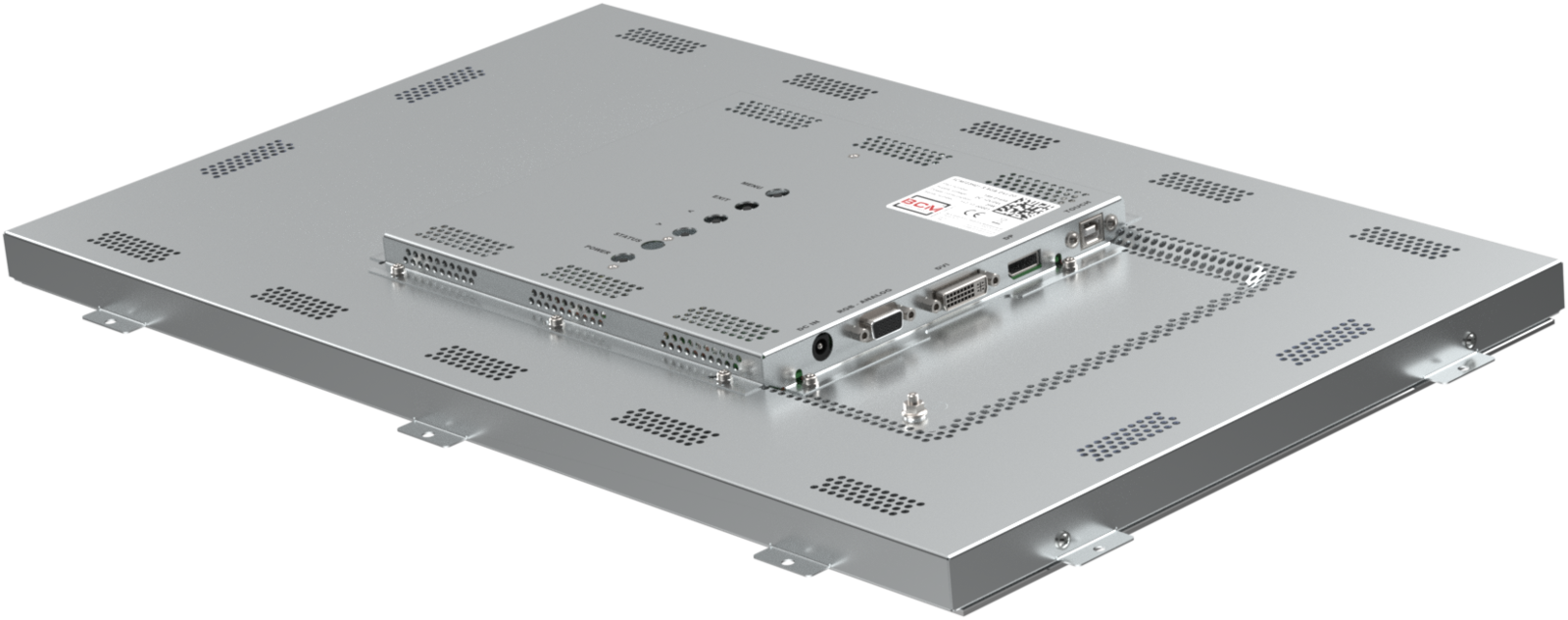

60.5 23.8 SCM PCAP-Touch SCMT23H01-R RGB/DVI/DP 188-01459 1920*1080 405 1000:1 89 / 89 / 89 / 89 Analog-RGB / DVI / DP / USB 12V / 24V 575.7*356.0*37.95 wide view (AAS), high brightness View picture Download
61.0 24.0 SCM w/o SCM24H02-R RGB/DVI/DP 188-01414 1920*1080 300 5000:1 89 / 89 / 89 / 89 Analog-RGB / DVI / DP 12V / 24V 578.2*345.0*32.1 wide view (MVA) View picture Download
61.0 24.0 SCM RES-Touch SCMT24H02-R RGB/DVI/DP 188-01466 1920*1080 246 5000:1 89 / 89 / 89 / 89 Analog-RGB / DVI / DP / USB 12V / 24V 578.3*345.5*38.4 wide view (MVA) View picture Download
61.0 24.0 SCM PCAP-Touch  SCMT24H03-R RGB/DVI/DP 188-01464 1920*1080 270 5000:1 89 / 89 / 89 / 89 Analog-RGB / DVI / DP / USB 12V DC 578.6*355.0*38.4 wide view (MVA) View picture Download

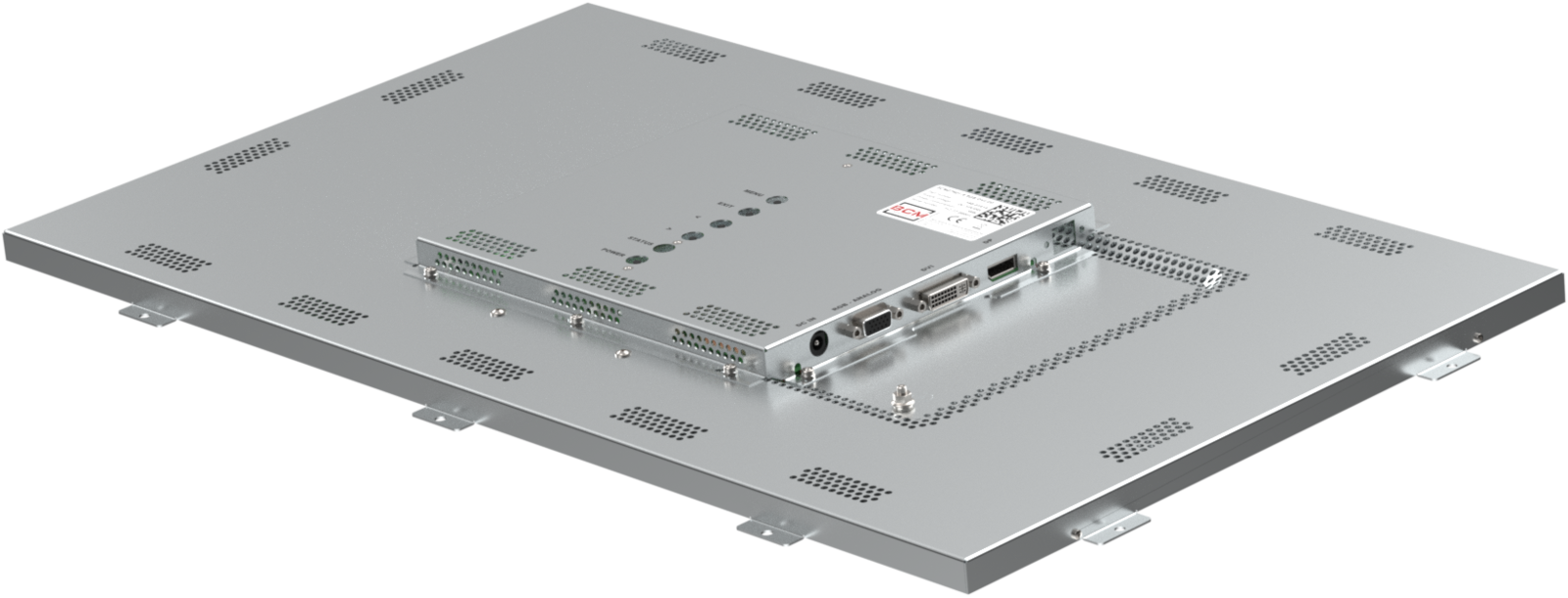

68.6 27.0 SCM w/o SCM27H01-R RGB/DVI/DP 188-01415 1920*1080 350 3000:1 89 / 89 / 89 / 89 Analog-RGB / DVI / DP 12V / 24V 634.7*377.7*29.5 wide view (MVA), high brightness View picture Download
26.4 10.4 BCM w/o BCM10X02-R RGB/DVI 188-01306 1024*768 500 1000:1 88 / 88 / 88 / 88 Analog-RGB / DVI 12V DC 225.5*176.3*20.0 wide view (AAS), high brightness View picture Download
30.7 12.1 BCM w/o BCM12X03-R RGB/DVI 188-01305 1024*768 600 1000:1 89 / 89 / 89 / 89 Analog-RGB / DVI 12V DC 260.5*204.0*17.6 wide view (AAS), high brightness View picture Download
38.1 15.0 BCM w/o BCM15X09-R RGB/DVI 188-01123 1024*768 500 2500:1 88 / 88 / 88 / 88 Analog-RGB / DVI 12V DC 326.5*253.5*21.1 wide view (VA), high brightness View picture Download
38.1 15.0 BCM w/o BCM15X10-R HDMI/DP 188-01124 1024*768 500 2500:1 88 / 88 / 88 / 88 HDMI / DP 12V / 24V 326.5*253.5*21.6 wide view (VA), high brightness View picture Download
43.2 17.0 BCM w/o BCM17EG3-R RGB/DVI 188-01146 1280*1024 350 1000:1 85 / 80 / 85 / 80 Analog-RGB / DVI 12V DC 358.5*296.5*22.8 high brightness, fast response time View picture Download
48.3 19.0 BCM w/o BCM19EG5-R RGB/DVI 188-01179 1280*1024 350 2000:1 89 / 89 / 89 / 89 Analog-RGB / DVI 12V DC 396.0*324.0*20.5 wide view (MVA), high brightness View picture Download
48.3 19.0 BCM w/o BCM19EG6-R RGB/DVI 188-01180 1280*1024 350 1000:1 85 / 80 / 85 / 80 Analog-RGB / DVI 12V DC 396.0*324.0*21.9 high brightness, fast response time View picture Download
